ASUS PRIME B650M-A II-CSM - motherboard - micro AT

Images Manuals

Images for illustrative purposes

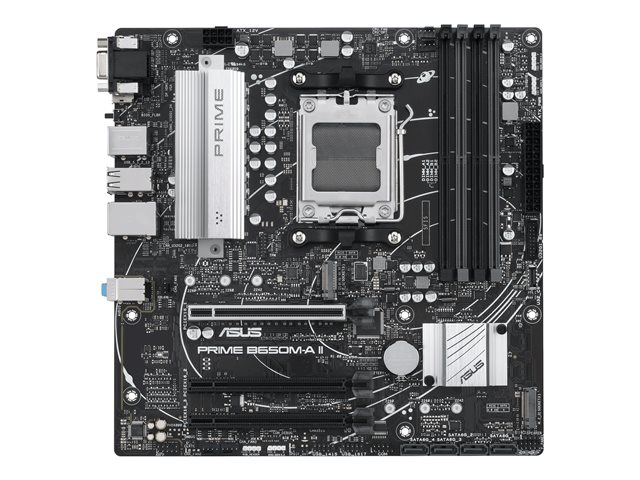

ASUS PRIME B650M-A II-CSM

Name: ASUS PRIME B650M-A II-CSM
Brand: ASUSTEK
SKU: WCE90MB1EH0M0EAYC
Price: 187.38 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1EH0-M0EAYC) - (WCE90MB1EH0M0EAYC)

Model: ASUS

ASUS PRIME B650M-A II-CSM - motherboard - micro ATX - Socket AM5 - AMD B650

CPU performance boost
All-around energy efficiency
Precise digital power control
VRM heatsink and thermal pad
Six-layer PCB design
DDR5 performance enhancement
View More
ASUS OptiMem II
PCIe 5.0 M.2 support
PCIe 4.0 slot
Front USB Type-C
Realtek 2.5 Gb Ethernet

FREE Delivery on orders over €250

10 Available to Ship
Order within 3Hrs 42Mins for: Delivery (8 Jun or 9 Jun)

€187.38 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A II-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Specification Summary

Product Description

ASUS PRIME B650M-A II-CSM - motherboard - micro ATX - Socket AM5 - AMD B650

Product Type

Motherboard - micro ATX

Chipset Type

AMD B650

Processor Socket

1 x Socket AM5

Compatible Processors

Ryzen (supports Ryzen 7000 Series)

Max RAM Size

192 GB

RAM Supported

4 DIMM slots - DDR5, non-ECC, on-die ECC, ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

2.5 Gigabit Ethernet

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

4711387025543

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD B650

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 7000 Series)

Supported RAM

Max Size

192 GB

Technology

DDR5

Bus Clock

4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7600 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC, ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x16 (x1 mode) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

Interfaces

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x PS/2 keyboard / mouse

Internal Interfaces

1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x speaker - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on PME, wake on LAN (WOL)

Hardware Features

ASUS Aura Sync, Preboot eXecution Environment (PXE), ASUS EZ DIY, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, ASUS 5X Protection III, LANGuard, ASUS DIGI+ VRM, overvoltage protection, ASUS Stainless Steel Back I/O, BIOS FlashBack button, BIOS FlashBack LED, ASUS OptiMem II, AURA RGB Lighting Control, 6 Layer PCB, CrashFree BIOS 3

Miscellaneous

Included Accessories

M.2 screw package, IO shield

Cables Included

2 x Serial ATA cable

Software Included

ASUS Control Center Express, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, ASUS TurboV EVO Utility, PC Cleaner, ASUS CPU-Z, Norton AntiVirus (Trial), WinRAR

Width

24.4 cm

Depth

24.4 cm

Manufacturer Warranty

Service & Support

Limited hardware warranty - 3 years
