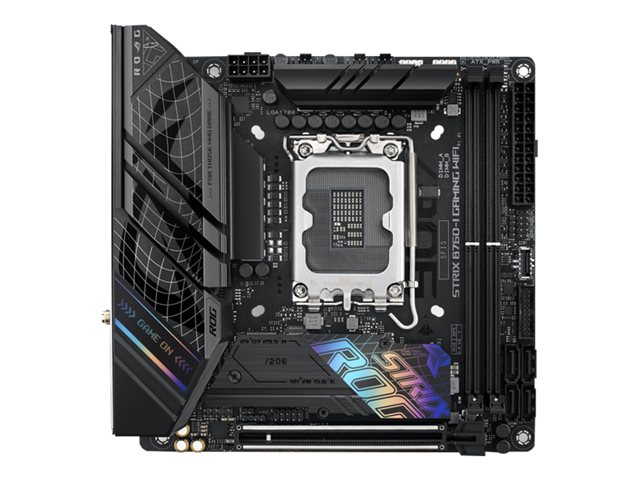

ASUS ROG STRIX B760-I GAMING WIFI

Name: ASUS ROG STRIX B760-I GAMING WIFI
Brand: ASUSTEK
SKU: WCE90MB1D90M1EAY0
Price: 199.75 EUR
Availability: InStock
Rating: 4.7 (6 reviews)

View all ASUSTEK Intel Desktop Motherboards - Visit the ASUSTEK Store (90MB1D90-M1EAY0) - (WCE90MB1D90M1EAY0)

4.7(6)

Model: ASUS

ASUS ROG STRIX B760-I GAMING WIFI - motherboard - mini ITX - LGA1700 Socket - B760

All-round performance
Leading connectivity
Play in style
Software utilities

FREE Delivery on orders over €250

14 Available to Ship
Order within 15Hrs 33Mins for: Delivery (23 Sep or 24 Sep)

€199.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency Wi-Fi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 13th Gen support thanks to its powerful VRM and thermal solution.

Specification Summary

Product Description

ASUS ROG STRIX B760-I GAMING WIFI - motherboard - mini ITX - LGA1700 Socket - B760

Product Type

Motherboard - mini ITX

Chipset Type

Intel B760

Processor Socket

1 x LGA1700 Socket

Compatible Processors

(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size

96 GB

RAM Supported

2 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 3 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Specifications

EAN / GTIN:

4711081997658

General

Product Type

Motherboard - mini ITX

Chipset Type

Intel B760

Processor Socket

LGA1700 Socket

Max Processors Qty

Compatible Processors

(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size

96 GB

Technology

DDR5

Bus Clock

4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7466 MHz (O.C.), 7600 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type

HD Audio (8-channel)

Audio Codec

SupremeFX (S1220A)

Compliant Standards

High Definition Audio, DTS Sound Unbound

LAN

Network Interfaces

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2

RAID Features

Intel Rapid Storage Technology

Interfaces

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB-C 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 1 ¦ 3 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 2 x aerial ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet)

Internal Interfaces

1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem II, Savitech SV3H712 amplifier, audio jack detect technology, jack retasking, Preboot eXecution Environment (PXE), SupremeFX Shielding technology, Windows 11 compatible, CrashFree BIOS 3, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink backplate, ASUS EZ DIY, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, 8+1 Phase Power Design, 8 Layer PCB, Water Pump Header, DIY Friendly Design

Miscellaneous

Included Accessories

ASUS Wi-Fi moving aerial, cable ties, 1 x M.2 rubber package, thermal pad for M.2 SSD, 2 x M.2 screw package, M.2 bracket, ROG key chain, STRIX stickers, ROG thank you card, panel cable

Cables Included

2 x Serial ATA cable ¦ 1 x USB 2.0 splitter cable ¦ 1 x panel cable

Software Included

ROG CPU-Z, Sonic Studio III, Sonic Radar III, Sonic Studio Virtual Mixer, Sonic Suite Companion, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, Armoury Crate, PC Cleaner, MyAsus, Norton 360 for Gamers, WinRAR, ROG GameFirst VI

Width

17 cm

Depth

17 cm
