ASUS ROG STRIX B760-F GAMING WIFI - motherboard -

Images Manuals

Images for illustrative purposes

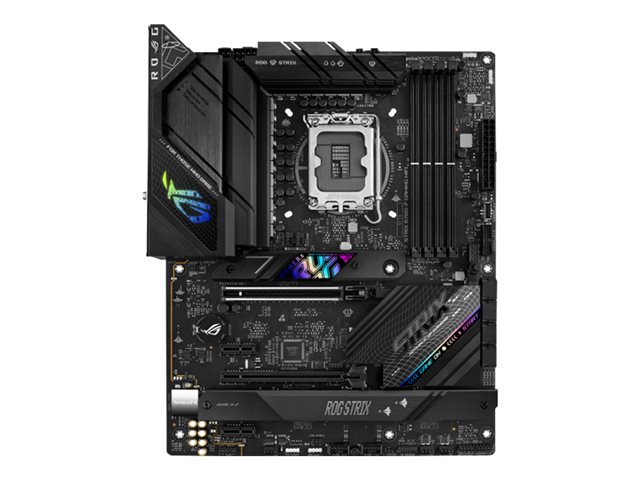

ASUS ROG STRIX B760-F GAMING WIFI

Name: ASUS ROG STRIX B760-F GAMING WIFI
Brand: ASUSTEK
SKU: ECE9799554
Price: 245.47 EUR
Availability: InStock
Rating: 4.7 (6 reviews)

View all ASUSTEK Intel Desktop Motherboards - Visit the ASUSTEK Store (90MB1CT0-M1EAY0) - (ECE9799554)

4.7(6)

Model: ASUS

ASUS ROG STRIX B760-F GAMING WIFI - Motherboard - ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Power architecture
Alloy chokes and durable capacitors
Six-layer PCB
DDR5 domination
AEMP II
VRM heatsink array
View More
M.2 heatsinks
CPU fan headers
AIO pump fan header
4-pin fan headers
PCIe performance
Wi-Fi 6E
Intel 2.5G Ethernet
USB
ROG SupremeFX
Undeniably ROG STRIX
Outshine the competition

HOT

FREE Delivery on orders over €250

13 Available to Ship
Order within 1 Days 17Hrs 40Mins for: Delivery (23 Sep or 24 Sep)

€245.47 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Leap into the future with the ROG STRIX B760-F, a fantastic upgrade into 13th Gen with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimize lag via hyper fast Wi-Fi 6E or 2.5G LAN. All these perks come alongside distinctive rainbow stripes and retro accents so you can show off your gamer pride.

Specification Summary

Product Description

ASUS ROG STRIX B760-F GAMING WIFI - motherboard - ATX - LGA1700 Socket - B760

Product Type

Motherboard - ATX

Chipset Type

Intel B760

Processor Socket

1 x LGA1700 Socket

Compatible Processors

(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size

192 GB

RAM Supported

4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports

1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + (1 x USB4 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Specifications

EAN / GTIN:

4711081974666

General

Product Type

Motherboard - ATX

Chipset Type

Intel B760

Processor Socket

LGA1700 Socket

Max Processors Qty

Compatible Processors

(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size

192 GB

Technology

DDR5

Bus Clock

4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7800 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type

HD Audio (8-channel)

Audio Codec

SupremeFX (ALC4080)

Compliant Standards

High Definition Audio, DTS Sound Unbound

LAN

Network Interfaces

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2

RAID Features

Intel Rapid Storage Technology

Interfaces

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 6 x USB 3.2 Gen 1 ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out

Internal Interfaces

1 x USB 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, MemTest86

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, LANGuard, audio jack detect technology, jack retasking, SupremeFX Shielding technology, Savitech SV3H712 amplifier, BIOS FlashBack button, Clear CMOS Button, Water Pump Header, 5K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS ProCool, ASUS Q-Design, ASUS SafeSlot, BIOS FlashBack LED, CPU Socket lever protector, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-DIMM, Q-LED, Q-Slot, SafeDIMM, VRM heatsink design, CrashFree BIOS 3, 16+1 Phase Power Design, 60A Power Stage, 6 Layer PCB

Miscellaneous

Included Accessories

Thermal pad for M.2 SSD, ASUS Wi-Fi moving aerial, cable ties, M.2 Q-Latch, 2 x M.2 rubber package, ROG key chain, STRIX stickers, ROG thank you card

Cables Included

2 x Serial ATA cable

Software Included

ROG GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Suite Companion, Sonic Radar III, Armoury Crate, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, PC Cleaner, MyAsus, Norton 360 for Gamers, WinRAR

Compliant Standards

DisplayPort 1.4

Width

30.5 cm

Depth

24.4 cm
