ASUS Prime Z790-P WIFI - motherboard - ATX - LGA17

Images Manuals

Images for illustrative purposes

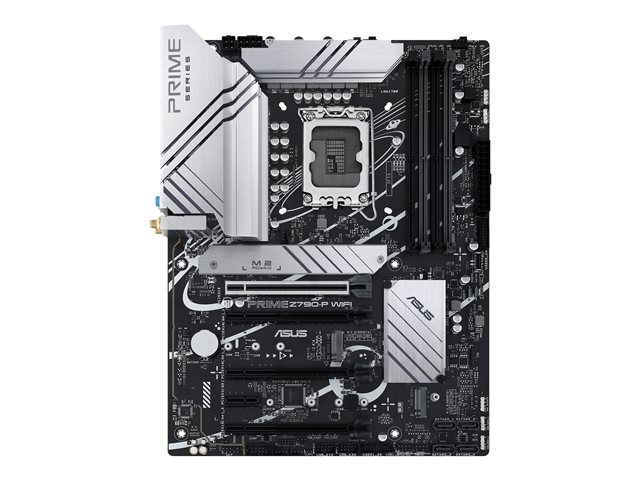

ASUS Prime Z790-P WIFI

Name: ASUS Prime Z790-P WIFI
Brand: ASUSTEK
SKU: WCE90MB1CJ0M1EAY0
Price: 216.25 EUR
Availability: InStock
Rating: 4.0 (4 reviews)

View all ASUSTEK Intel Desktop Motherboards - Visit the ASUSTEK Store (90MB1CJ0-M1EAY0) - (WCE90MB1CJ0M1EAY0)

4.0(4)

Model: ASUS

ASUS Prime Z790-P WIFI - motherboard - ATX - LGA1700 Socket - Z790

Flexibility
Intelligent Control
Cooling
Performance
Robust power design
Combined onboard features deliver elevated audio

FREE Delivery on orders over €250

4 Available to Ship
Order within 21Hrs 10Mins for: Delivery (10 Aug or 11 Aug)

€216.25 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z790-P Wi-Fi provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Specification Summary

Product Description

ASUS Prime Z790-P WIFI - motherboard - ATX - LGA1700 Socket - Z790

Product Type

Motherboard - ATX

Chipset Type

Intel Z790

Processor Socket

1 x LGA1700 Socket

Compatible Processors

(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size

192 GB

RAM Supported

4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports

1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Specifications

EAN / GTIN:

4711081937227

General

Product Type

Motherboard - ATX

Chipset Type

Intel Z790

Processor Socket

LGA1700 Socket

Max Processors Qty

Compatible Processors

(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size

192 GB

Technology

DDR5

Bus Clock

4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 3 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ M.2 socket (Key E)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

Intel Rapid Storage Technology

Interfaces

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x aerial ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack

Internal Interfaces

4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header

Features

BIOS Type

AMI

BIOS Features

ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on PME, wake on LAN (WOL)

Hardware Features

ASUS OptiMem II, Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), CrashFree BIOS 3, LANGuard, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, ASUS ProCool, ASUS Aura Sync, ASUS 5X Protection III, 14+1 Phase Power Design

Miscellaneous

Included Accessories

IO shield, 1 x M.2 rubber package, 2 x M.2 screw package, ASUS Wi-Fi moving aerial

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS TurboV EVO Utility, PC Cleaner, MyAsus, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR

Width

30.5 cm

Depth

23.4 cm
