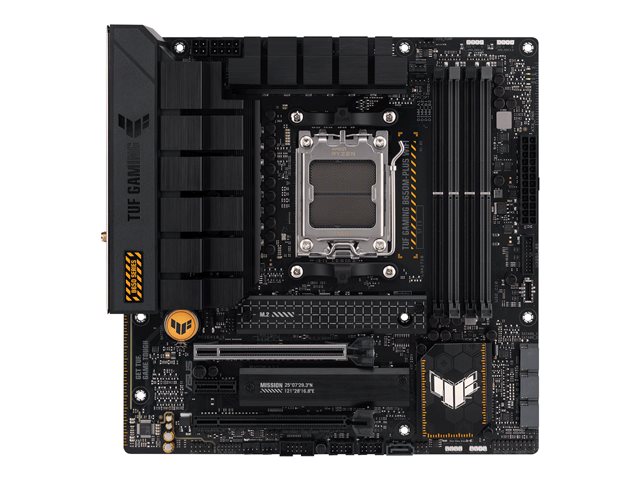

ASUS TUF Gaming B650M-Plus WIFI

Name: ASUS TUF Gaming B650M-Plus WIFI
Brand: ASUSTEK
SKU: WCE90MB1BF0M0EAY0
Price: 199.75 EUR
Availability: InStock
Rating: 4.5 (64 reviews)

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1BF0-M0EAY0) - (WCE90MB1BF0M0EAY0)

4.5(64)

Model: ASUS

ASUS TUF Gaming B650M-Plus WIFI - motherboard - micro ATX - Socket AM5 - AMD B650

Intelligent control
Rock-solid performance
Teamed power stages
ProCool power connectors
Digi+ VRM
Enlarged VRM heatsink
View More
Optimized M.2 heatsink design
Excellent connectivity
Stainless steel I/O panel
TUF LANGuard
Immersive gaming
2.5 Gb Ethernet

FREE Delivery on orders over €250

2 Available to Ship
Order within 2Hrs 7Mins for: Delivery (8 Jun or 9 Jun)

€199.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

ASUS TUF Gaming B650M-Plus WIFI takes all the essential elements of the advanced processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.

Specification Summary

Product Description

ASUS TUF Gaming B650M-Plus WIFI - motherboard - micro ATX - Socket AM5 - AMD B650

Product Type

Motherboard - micro ATX

Chipset Type

AMD B650

Processor Socket

1 x Socket AM5

Compatible Processors

Ryzen (supports Ryzen 7000 Series)

Max RAM Size

128 GB

RAM Supported

4 DIMM slots - DDR5, non-ECC, on-die ECC, ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

2.5 Gigabit Ethernet, Bluetooth 5.2

Specifications

EAN / GTIN:

4711081912118

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD B650

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 7000 Series)

Supported RAM

Max Size

128 GB

Technology

DDR5

Bus Clock

4800 MHz, 5000 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC, ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

2.5 Gigabit Ethernet, Bluetooth 5.2

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

Interfaces

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 2 x aerial ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet)

Internal Interfaces

1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3

Hardware Features

ASUS OptiMem II, jack retasking, audio jack detect technology, TUF LANGuard, BIOS FlashBack button, Water Pump Header, ASUS TUF Protection, ASUS DIGI+ VRM, ESD Guards, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, pre-mounted I/O shield, ASUS SafeDIMM, ASUS Aura Sync, ASUS TurboV EVO, CrashFree BIOS 3, 12+2 Phase Power Design, 60A Power Stage, TUF Components

Miscellaneous

Included Accessories

ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS TUF GAMING CPU-Z, MyAsus, Norton AntiVirus (Trial), WinRAR

Compliant Standards

DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, WEEE

Width

24.4 cm

Depth
