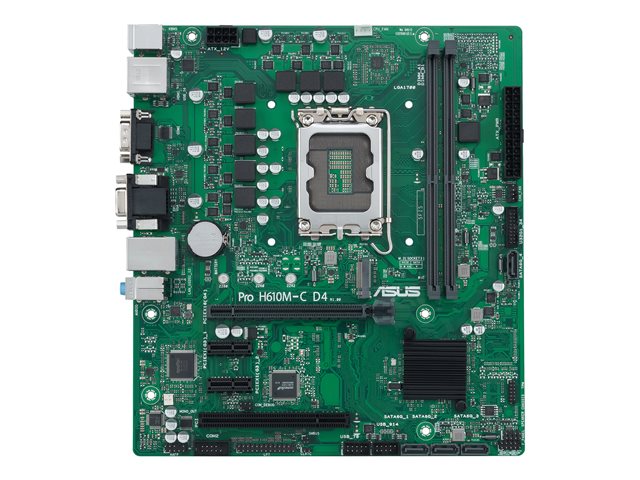

ASUS PRO H610M-C D4-CSM

Name: ASUS PRO H610M-C D4-CSM
Brand: ASUSTEK
SKU: ECE8570747
Price: 114.30 EUR
Availability: OutOfStock

View all ASUSTEK Intel Desktop Motherboards - Visit the ASUSTEK Store (90MB1A30-M0EAYC) - (ECE8570747)

Model: ASUS

ASUS PRO H610M-C D4-CSM - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Robust expansion capabilities
High-speed connectivity options
Advanced audio technology
Efficient memory support
Reliable build quality

FREE Delivery on orders over €250

0 Available to Ship
Restock 22-Sep-2026 Estimated, Out of Stock Prices are Estimated.

€114.30 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS PRO H610M-C D4-CSM motherboard is designed to provide performance and connectivity for computing needs. Featuring Intel H610 chipset compatibility, this motherboard supports 12th Generation Intel Core, Pentium Gold, and Celeron processors. It is equipped with two DIMM slots that enable dual-channel memory architecture and boost RAM capabilities up to 3200 MHz, ensuring efficient multitasking and smoother operation for applications.

With a variety of expansion slots including PCIe 4.0 x16 and M.2 socket, the ASUS PRO H610M-C D4-CSM allows for upgrades tailored to users’ specific requirements. Connectivity is prioritized through numerous ports, including DisplayPort, HDMI, and USB 3.2 Gen 1, enabling easy connection to peripherals and displays. This motherboard features high definition audio, ensuring clear sound output for multimedia purposes.

Specification Summary

Product Description

ASUS PRO H610M-C D4-CSM - motherboard - micro ATX - LGA1700 Socket - H610

Product Type

Motherboard - micro ATX

Chipset Type

Intel H610

Processor Socket

1 x LGA1700 Socket

Compatible Processors

(supports 12th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size

64 GB

RAM Supported

2 DIMM slots - DDR4, non-ECC, unbuffered

Storage Ports

4 x SATA-600, 1 x M.2

USB / FireWire Ports

2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet

Specifications

EAN / GTIN:

4711081699132

General

Product Type

Motherboard - micro ATX

Chipset Type

Intel H610

Processor Socket

LGA1700 Socket

Max Processors Qty

Compatible Processors

(supports 12th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size

64 GB

Technology

DDR4

Bus Clock

2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz

Supported RAM Integrity Check

Non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2

Interfaces

1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x DisplayPort ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x serial

Internal Interfaces

4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x parallel - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, LANGuard, audio jack detect technology, jack retasking, ASUS EZ DIY, ASUS Self Recovering BIOS, Q-LED Core, ASUS Event Log, ASUS Commercial BIOS kit, Moistureproof PCB, overcurrent protection, ASUS Control Center Express (ACC Express), Preboot eXecution Environment (PXE)

Miscellaneous

Included Accessories

IO shield, 1 x M.2 screw, ACC Express Activation Key Card

Cables Included

2 x Serial ATA cable

Software Included

ASUS Control Center Express

Compliant Standards

DisplayPort 1.4

Width

24.4 cm

Depth
