ASUS PRIME H610M-D D4 - motherboard - micro ATX -

Images Manuals

Images for illustrative purposes

ASUS PRIME H610M-D D4

Name: ASUS PRIME H610M-D D4
Brand: ASUSTEK
SKU: ECE7296284
Price: 115.24 EUR
Availability: InStock

View all ASUSTEK Intel Desktop Motherboards - Visit the ASUSTEK Store (90MB1A00-M0EAY0) - (ECE7296284)

Model: ASUS

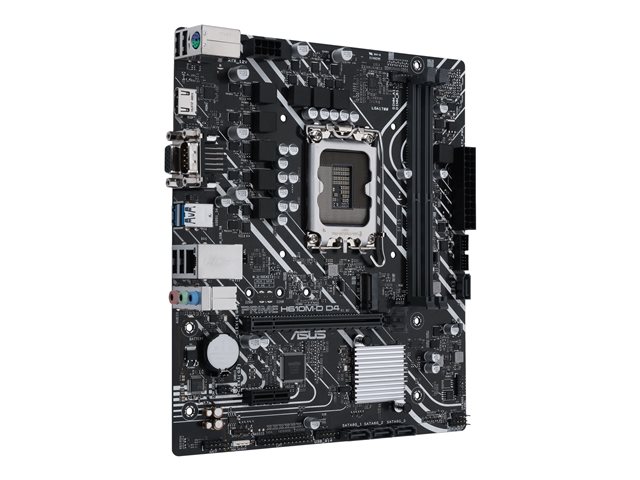

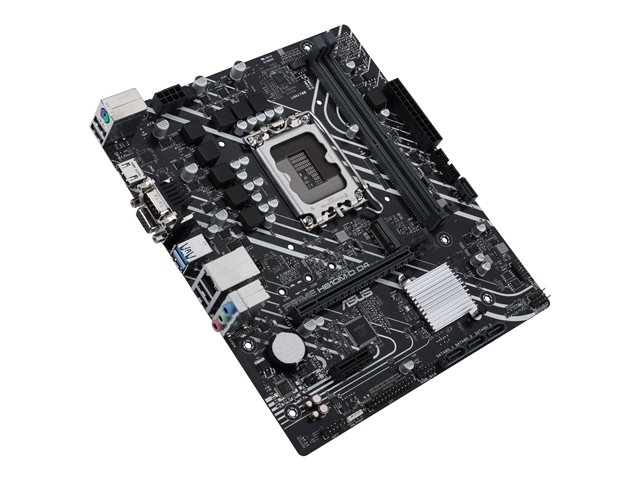

ASUS PRIME H610M-D D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

All-around energy efficiency
Precise digital power control
Cooler by design
M.2 slot (up to 32 Gbps)
PCIe 4.0
USB 3.2 Gen 1 ports
View More
Combined onboard features deliver elevated audio
Fortified PCIe slot prevents damage
Stainless steel back I/O panels

FREE Delivery on orders over €250

1 Available to Ship
Order within 16Hrs 17Mins for: Delivery (8 Jun or 9 Jun)

€115.24 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Specification Summary

Product Description

ASUS PRIME H610M-D D4 - motherboard - micro ATX - LGA1700 Socket - H610

Product Type

Motherboard - micro ATX

Chipset Type

Intel H610

Processor Socket

1 x LGA1700 Socket

Compatible Processors

(supports 12th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size

64 GB

RAM Supported

2 DIMM slots - DDR4, non-ECC, unbuffered

Storage Ports

4 x SATA-600, 1 x M.2

USB / FireWire Ports

2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

4711081540489

General

Product Type

Motherboard - micro ATX

Chipset Type

Intel H610

Processor Socket

LGA1700 Socket

Max Processors Qty

Compatible Processors

(supports 12th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size

64 GB

Technology

DDR4

Bus Clock

2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz

Supported RAM Integrity Check

Non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

Interfaces

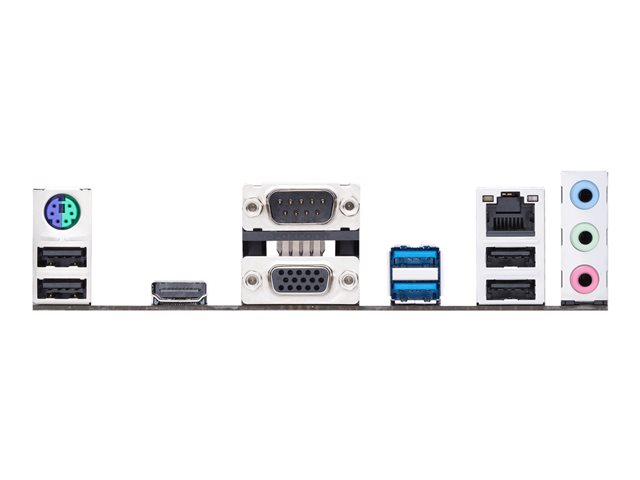

1 x HDMI ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x serial

Internal Interfaces

2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x SPDIF out - header ¦ 1 x speaker - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, audio jack detect technology, jack retasking, ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, overvoltage protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Lighting Control, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, Preboot eXecution Environment (PXE), ASUS EZ DIY, CrashFree BIOS 3

Miscellaneous

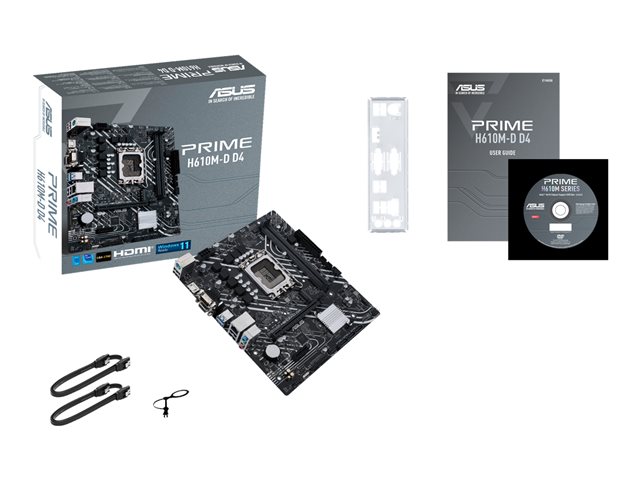

Included Accessories

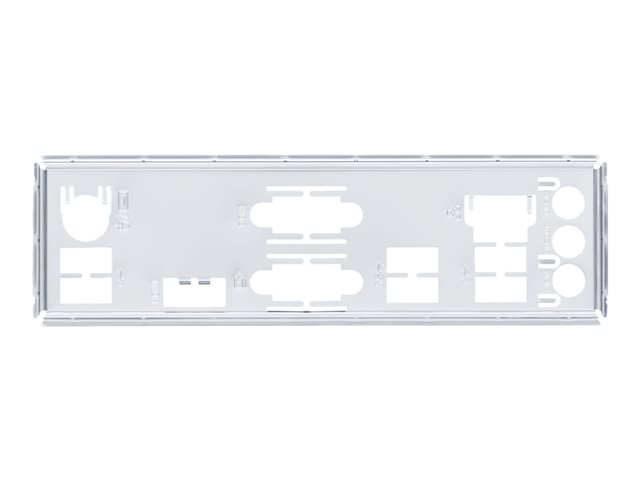

I/O back plate, 1 x M.2 anchor

Cables Included

2 x Serial ATA cable

Software Included

Drivers & Utilities, ASUS AI Suite III, ASUS CPU-Z, Norton AntiVirus (Trial), WinRAR, ASUS EZ Flash 3

Width

23.4 cm

Depth

20.3 cm

Manufacturer Warranty
