ASUS PRIME B550M-A WIFI II - motherboard - micro A

Images Manuals

Images for illustrative purposes

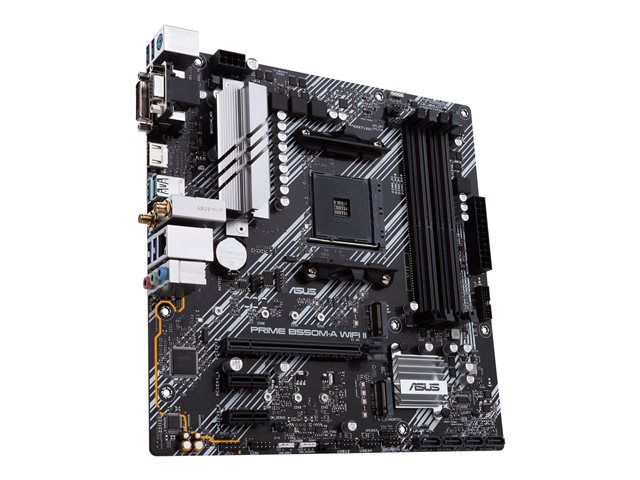

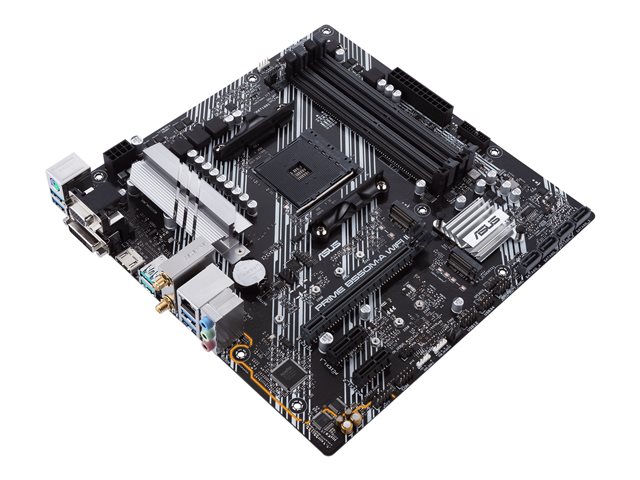

ASUS PRIME B550M-A WIFI II

Name: ASUS PRIME B550M-A WIFI II
Brand: ASUSTEK
SKU: WCE90MB19X0M0EAY0
Price: 122.83 EUR
Availability: InStock
Rating: 4.4 (50 reviews)

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB19X0-M0EAY0) - (WCE90MB19X0M0EAY0)

4.4(50)

Model: ASUS

ASUS PRIME B550M-A WIFI II - motherboard - micro ATX - Socket AM4 - AMD B550

Tune it your way
Cool to the Core
Cooler by design - VRM heatsink and thermal pads
Build on a solid foundation
Little things make a big difference
Outstanding audio - combined onboard features deliver elevated audio
View More
Audio shielding
Separate layer for left and right tracks
Premium audio capacitors

FREE Delivery on orders over €250

117 Available to Ship
Order within 21Hrs 27Mins for: Delivery (10 Aug or 11 Aug)

Was €134.80 -9%

€122.83 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

ASUS Prime series is expertly engineered to unleash the full potential of 5000 Series. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Specification Summary

Product Description

ASUS PRIME B550M-A WIFI II - motherboard - micro ATX - Socket AM4 - AMD B550

Product Type

Motherboard - micro ATX

Chipset Type

AMD B550

Processor Socket

1 x Socket AM4

Compatible Processors

Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)

Max RAM Size

128 GB

RAM Supported

4 DIMM slots - DDR4, ECC, non-ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

4711081309741

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD B550

Processor Socket

Socket AM4

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)

Supported RAM

Max Size

128 GB

Technology

DDR4

Bus Clock

2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4200 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.), 4400 MHz (O.C.), 4466 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 4866 MHz (O.C.)

Supported RAM Integrity Check

ECC, non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs); PCIe 3.0 x16 mode (Ryzen 5000 G-Series / 4000 G-Series CPUs)) ¦ 2 x PCIe 3.0 x1

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

Interfaces

1 x VGA ¦ 1 x DVI-D ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI

Internal Interfaces

4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Preboot eXecution Environment (PXE), LANGuard, jack retasking, audio jack detect technology, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, ASUS Aura Sync, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert 2+, ASUS EZ DIY, CrashFree BIOS 3

Miscellaneous

Included Accessories

ASUS Wi-Fi moving aerial, 1 x M.2 screw, I/O back cover

Cables Included

2 x Serial ATA cable

Software Included

Drivers & Utilities, ASUS AURA Creator, ASUS AI Suite III, ASUS CPU-Z, ASUS AI Charger, DAEMON Tools, WinRAR, Norton AntiVirus (Trial), ASUS EZ Flash 3

Width

24.4 cm

Depth

24.4 cm

Manufacturer Warranty

Service & Support

Limited warranty - 3 years
