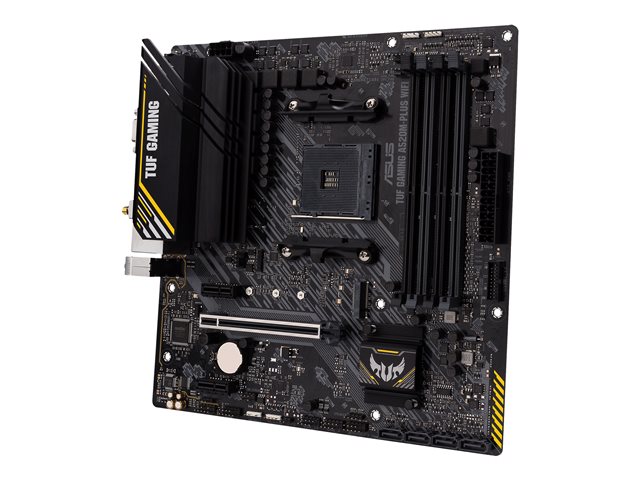

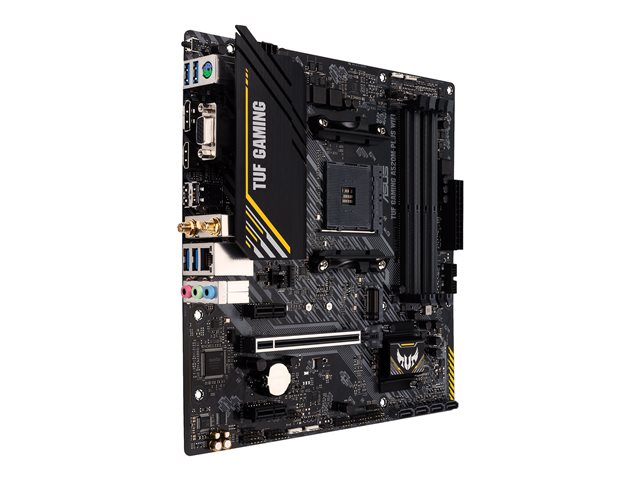

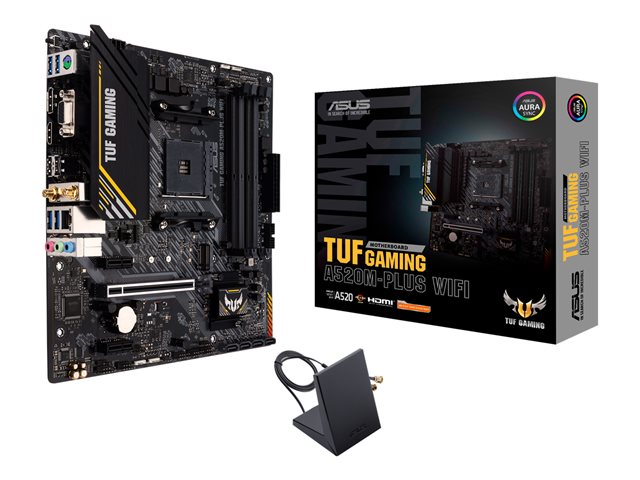

ASUS TUF GAMING A520M-PLUS WIFI

Name: ASUS TUF GAMING A520M-PLUS WIFI
Brand: ASUSTEK
SKU: ECE6612927
Price: 89.75 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB17F0-M0EAY0) - (ECE6612927)

Model: ASUS

ASUS TUF GAMING A520M-PLUS WIFI - Motherboard - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Rock-solid performance
Immersive gaming

FREE Delivery on orders over €250

34 Available to Ship
Order within 20Hrs 41Mins for: Delivery (10 Aug or 11 Aug)

Was €98.31 -9%

€89.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

Specification Summary

Product Description

ASUS TUF GAMING A520M-PLUS WIFI - motherboard - micro ATX - Socket AM4 - AMD A520

Product Type

Motherboard - micro ATX

Chipset Type

AMD A520

Processor Socket

1 x Socket AM4

Compatible Processors

Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series)

Max RAM Size

128 GB

RAM Supported

4 DIMM slots - DDR4, ECC, non-ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 1 x M.2

USB / FireWire Ports

4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 3 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth

Specifications

EAN / GTIN:

4711081154273

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD A520

Processor Socket

Socket AM4

Max Processors Qty

Compatible Processors

Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series)

Supported RAM

Max Size

128 GB

Technology

DDR4

Bus Clock

2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 4466 MHz (O.C.), 4266 MHz (O.C.), 4133 MHz (O.C.)

Supported RAM Integrity Check

ECC, non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC887/ALC897

Compliant Standards

High Definition Audio

LAN

Network Interfaces

Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

Interfaces

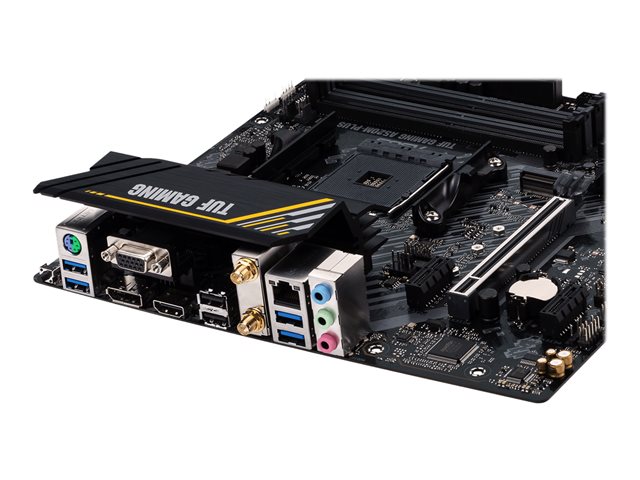

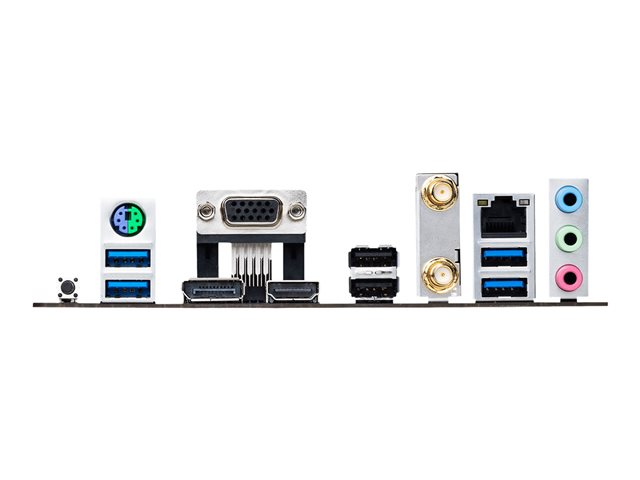

1 x VGA ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet)

Internal Interfaces

3 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x speaker - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3

Sleep / Wake Up

Wake on LAN (WOL)

Hardware Features

Preboot eXecution Environment (PXE), TUF LANGuard, jack retasking, audio jack detect technology, Armoury Crate, ASUS Aura Sync, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Fan Xpert 2+, Turbo LAN, ASUS EZ DIY, CrashFree BIOS 3, ASUS TUF Protection, ESD Guards, ASUS Overvoltage Protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, Q-DIMM, Q-Slot, ASUS Q-Design

Miscellaneous

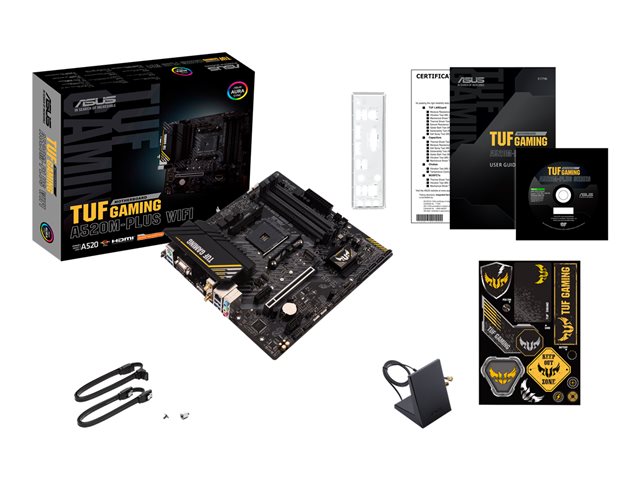

Included Accessories

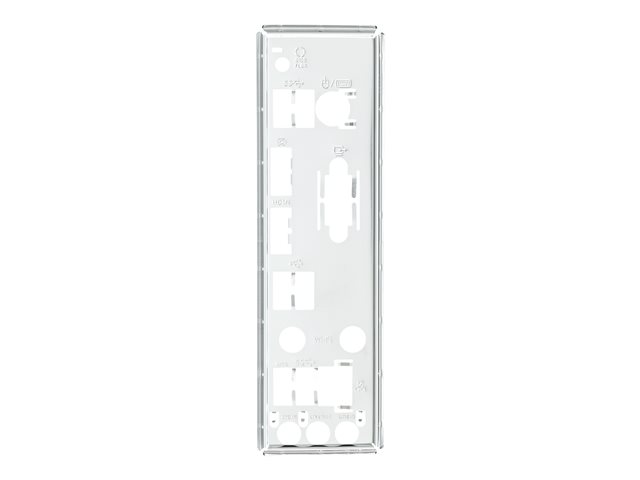

I/O back cover, 1 x M.2 screw, ASUS Wi-Fi moving aerial, TUF stickers

Cables Included

2 x Serial ATA cable

Software Included

Drivers & Utilities, ASUS AI Suite III, ASUS AI Charger, ASUS TUF GAMING CPU-Z, WinRAR, Norton AntiVirus (Trial), ASUS EZ Flash 3, ASUS EZ Update, PC Cleaner, DAEMON Tools

Width

24.4 cm

Depth

24.4 cm
