ASUS ROG STRIX B550-A GAMING - motherboard - ATX -

Images Manuals

Images for illustrative purposes

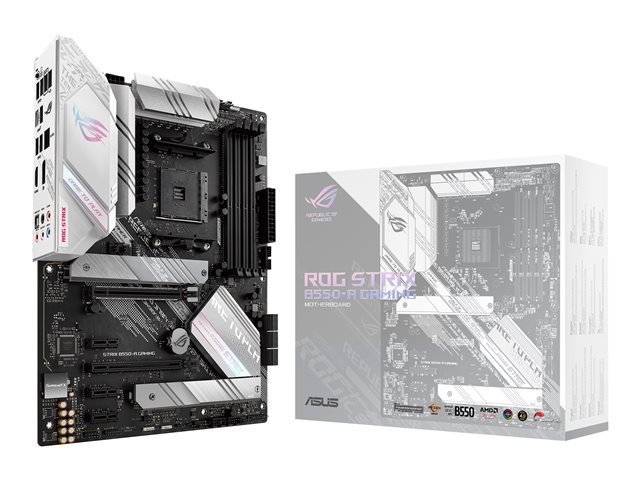

ASUS ROG STRIX B550-A GAMING

Name: ASUS ROG STRIX B550-A GAMING
Brand: ASUSTEK
SKU: WCE90MB15J0M0EAY0
Price: 172.64 EUR
Availability: InStock
Rating: 4.5 (5 reviews)

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB15J0-M0EAY0) - (WCE90MB15J0M0EAY0)

4.5(5)

Model: ASUS

ASUS ROG STRIX B550-A GAMING - motherboard - ATX - Socket AM4 - AMD B550

SupremeFX
AI noise-canceling microphone
Sonic Studio III
Power design
Procool power connector
DIGI+ power control
View More
Teamed power stages
Alloy choke and capacitor

FREE Delivery on orders over €250

54 Available to Ship
Order within 5Hrs 1Mins for: Delivery (12 Jun or 15 Jun)

€172.64 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Designed for those seeking to get the most out of their build, ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end Gaming series. ROG Strix B550-A Gaming is well-equipped, offering robust power delivery and effective cooling. As an added bonus, outstanding performance is complemented by a stunning finish and cyberpunk-inspired aesthetics that present a standout look.

Specification Summary

Product Description

ASUS ROG STRIX B550-A GAMING - motherboard - ATX - Socket AM4 - AMD B550

Product Type

Motherboard - ATX

Chipset Type

AMD B550

Processor Socket

1 x Socket AM4

Compatible Processors

Ryzen (supports 3rd Generation Ryzen)

Max RAM Size

128 GB

RAM Supported

4 DIMM slots - DDR4, ECC, non-ECC, unbuffered

Storage Ports

6 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

2.5 Gigabit Ethernet

Specifications

EAN / GTIN:

4718017826594

General

Product Type

Motherboard - ATX

Chipset Type

AMD B550

Processor Socket

Socket AM4

Max Processors Qty

Compatible Processors

Ryzen (supports 3rd Generation Ryzen)

Supported RAM

Max Size

128 GB

Technology

DDR4

Bus Clock

2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.)

Supported RAM Integrity Check

ECC, non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture

Audio

Type

HD Audio (8-channel)

Audio Codec

SupremeFX (S1220A)

Compliant Standards

High Definition Audio, DTS Sound Unbound

LAN

Network Controller

Intel I255-V

Network Interfaces

2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1

Storage Interfaces

SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

Interfaces

1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI

Internal Interfaces

4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header

Power Connectors

4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

BIOS FlashBack, UEFI BIOS

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Preboot eXecution Environment (PXE), ASUS OptiMem II, AMD CrossFireX technology support, LANGuard, SupremeFX Shielding technology, audio jack detect technology, jack retasking, GameFirst VI, Sonic Studio III, Sonic Radar III, Armoury Crate, ASUS Aura Sync, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Fan Xpert 4, CrashFree BIOS 3, ASUS Q-Design, Q-DIMM, Q-LED, Q-Slot, pre-mounted I/O shield, ASUS ProCool, ASUS SafeSlot, ASUS EZ DIY, 12+2 Phase Power Design

Miscellaneous

Included Accessories

ROG fan stickers, cable ties, RGB Addressable LED extension cable, ROG thank you card, rubber pad, 1 x M.2 screw

Cables Included

4 x Serial ATA cable

Software Included

Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Overwolf, ASUS EZ Flash 3, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer, ROG GameFirst VI

Compliant Standards

DisplayPort 1.2

Width

30.5 cm

Depth

24.4 cm
