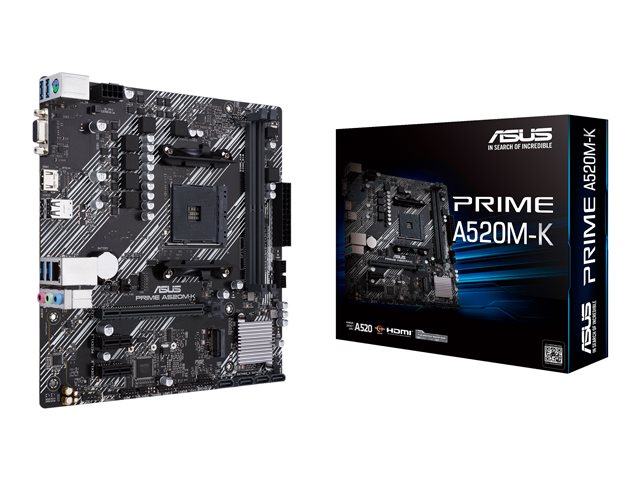

ASUS PRIME A520M-K

Name: ASUS PRIME A520M-K
Brand: ASUSTEK
SKU: WCE90MB1500M0EAY0
Price: 79.34 EUR
Availability: InStock
Rating: 4.5 (13 reviews)

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1500-M0EAY0) - (WCE90MB1500M0EAY0)

4.5(13)

Model: ASUS

ASUS PRIME A520M-K - motherboard - micro ATX - Socket AM4 - AMD A520

Tune it your way
Cooler by design
Build on a solid foundation
Achieve speed with onboard M.2
Little things make a big difference
Combined onboard features deliver elevated audio
View More
Premium Japanese capacitors

FREE Delivery on orders over €250

819 Available to Ship
Order within 12Hrs 26Mins for: Delivery (25 Jun or 26 Jun)

€79.34 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Features Summary

Tune it your way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity.
Cooler by design
PRIME A520M-K is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads.
Build on a solid foundation
Prime A520 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Achieve speed with onboard M.2
M.2 Slot supports data-transfer speed up to 32Gbps via x4 PCI Express 3.0 bandwidth. It's the perfect choice for an operating system or application drive, providing fast access to data.
Little things make a big difference
Prime A520 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a uniquely personal look.
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Premium Japanese capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.

Specification Summary

Product Description

ASUS PRIME A520M-K - motherboard - micro ATX - Socket AM4 - AMD A520

Product Type

Motherboard - micro ATX

Chipset Type

AMD A520

Processor Socket

1 x Socket AM4

Compatible Processors

Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)

Max RAM Size

64 GB

RAM Supported

2 DIMM slots - DDR4, ECC, non-ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 1 x M.2

USB / FireWire Ports

4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet

Specifications

EAN / GTIN:

4718017826921

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD A520

Processor Socket

Socket AM4

Max Processors Qty

Compatible Processors

Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)

Supported RAM

Max Size

64 GB

Technology

DDR4

Bus Clock

2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.)

Supported RAM Integrity Check

ECC, non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC887

Compliant Standards

High Definition Audio

LAN

Network Controller

Realtek RTL8111H

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

Interfaces

1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet)

Internal Interfaces

4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Preboot eXecution Environment (PXE), LANGuard, jack retasking, audio jack detect technology, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Fan Xpert, ASUS EZ DIY, CrashFree BIOS 3, ASUS 5X Protection III, ASUS Overvoltage Protection, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Lighting Control, ASUS SafeSlot Core

Miscellaneous

Included Accessories

I/O back cover, 1 x M.2 screw

Cables Included

2 x Serial ATA cable

Software Included

Drivers & Utilities, ASUS AI Suite III, ASUS AI Charger, ASUS CPU-Z, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial), ASUS EZ Flash 3, ASUS EZ Update

Width

22.6 cm

Depth

22.1 cm
