ASUS PRIME B550-PLUS - motherboard - ATX - Socket

Images Manuals

Images for illustrative purposes

ASUS PRIME B550-PLUS

Name: ASUS PRIME B550-PLUS
Brand: ASUSTEK
SKU: WCE90MB14U0M0EAY0
Price: 129.75 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB14U0-M0EAY0) - (WCE90MB14U0M0EAY0)

Model: ASUS

ASUS PRIME B550-PLUS - motherboard - ATX - Socket AM4 - AMD B550

Tune it your way
Cool to the core
Build on a solid foundation
Little things make a big difference
Combined onboard features deliver elevated audio

FREE Delivery on orders over €250

119 Available to Ship
Order within 21Hrs 25Mins for: Delivery (10 Aug or 11 Aug)

Was €142.32 -9%

€129.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Specification Summary

Product Description

ASUS PRIME B550-PLUS - motherboard - ATX - Socket AM4 - AMD B550

Product Type

Motherboard - ATX

Chipset Type

AMD B550

Processor Socket

1 x Socket AM4

Compatible Processors

Ryzen (supports 3rd Generation Ryzen)

Max RAM Size

128 GB

RAM Supported

4 DIMM slots - DDR4, non-ECC, ECC, unbuffered

Storage Ports

6 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

4718017782340

General

Product Type

Motherboard - ATX

Chipset Type

AMD B550

Processor Socket

Socket AM4

Max Processors Qty

Compatible Processors

Ryzen (supports 3rd Generation Ryzen)

Supported RAM

Max Size

128 GB

Technology

DDR4

Bus Clock

2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz

Supported RAM Integrity Check

Non-ECC, ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC887

Compliant Standards

High Definition Audio

LAN

Network Controller

Realtek RTL8111H

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1

Storage Interfaces

SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

Interfaces

1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI

Internal Interfaces

4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header ¦ 1 x serial - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS Fan Xpert 4, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS Aura Sync, Armoury Crate

Miscellaneous

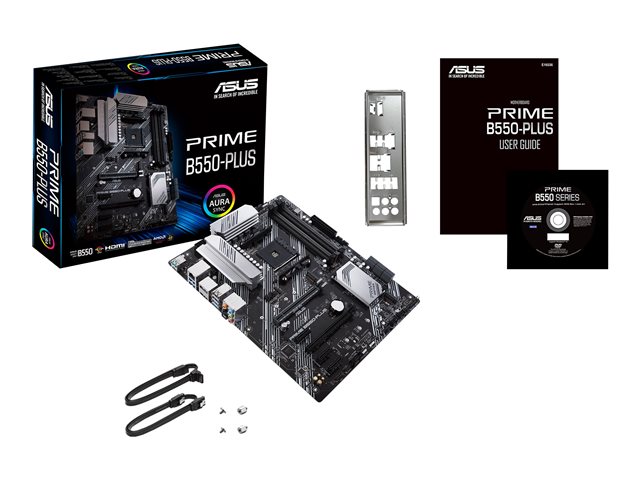

Included Accessories

1 x M.2 screw, I/O back cover

Cables Included

2 x Serial ATA cable

Software Included

Drivers & Utilities, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial)

Width

30.5 cm

Depth

24.4 cm

Manufacturer Warranty
