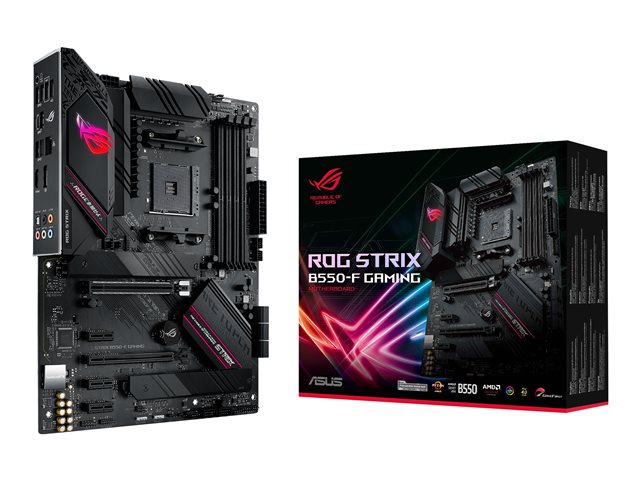

ASUS ROG STRIX B550-F GAMING

Name: ASUS ROG STRIX B550-F GAMING
Brand: ASUSTEK
SKU: WCE90MB14S0M0EAY0
Price: 179.75 EUR
Availability: InStock
Rating: 4.4 (23 reviews)

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB14S0-M0EAY0) - (WCE90MB14S0M0EAY0)

4.4(23)

Model: ASUS

ASUS ROG STRIX B550-F GAMING - motherboard - ATX - Socket AM4 - AMD B550

Advance your gaming immersion
PCIe 4.0-ready
Intel 2.5 Gb Ethernet
SupremeFX
AI noise-canceling microphone
All-round performance
View More
DIGI+ Power Control
Cooler by design
Outshine the competition
Q-LEDs
SafeSlot

FREE Delivery on orders over €250

2 Available to Ship
Order within 12Hrs 14Mins for: Delivery (25 Jun or 26 Jun)

Was €189.75 -5%

€179.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build.

Specification Summary

Product Description

ASUS ROG STRIX B550-F GAMING - motherboard - ATX - Socket AM4 - AMD B550

Product Type

Motherboard - ATX

Chipset Type

AMD B550

Processor Socket

1 x Socket AM4

Compatible Processors

Ryzen (supports 3rd Generation Ryzen)

Max RAM Size

128 GB

RAM Supported

4 DIMM slots - DDR4 unbuffered

Storage Ports

6 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

2.5 Gigabit Ethernet

Specifications

EAN / GTIN:

4718017749688

General

Product Type

Motherboard - ATX

Chipset Type

AMD B550

Processor Socket

Socket AM4

Max Processors Qty

Compatible Processors

Ryzen (supports 3rd Generation Ryzen)

Supported RAM

Max Size

128 GB

Technology

DDR4

Bus Clock

2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture

Audio

Type

HD Audio (8-channel)

Audio Codec

SupremeFX (S1220A)

Compliant Standards

High Definition Audio, DTS Sound Unbound

LAN

Network Controller

Intel I255-V

Network Interfaces

2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1

Storage Interfaces

SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2

Interfaces

1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI

Internal Interfaces

4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header

Power Connectors

4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

BIOS FlashBack, UEFI BIOS

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology, AMD CrossFireX technology support, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, ASUS ProCool, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, GameFirst VI

Miscellaneous

Included Accessories

Cable ties, 1 x M.2 screw, ROG fan stickers, ROG thank you card, RGB Addressable LED extension cable, rubber pad

Cables Included

4 x Serial ATA cable

Software Included

ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Overwolf, ASUS EZ Flash 3, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer

Compliant Standards

DisplayPort 1.2

Width

30.5 cm

Depth
