Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of solid adapter cards. ConnectX-6 VPI cards enable high performance and flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability. ConnectX-6 VPI MCX653106A-ECAT card supports HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 100, 50, 40, 25, and 10 Gb/s Ethernet speeds.


Specification Summary

Product Description

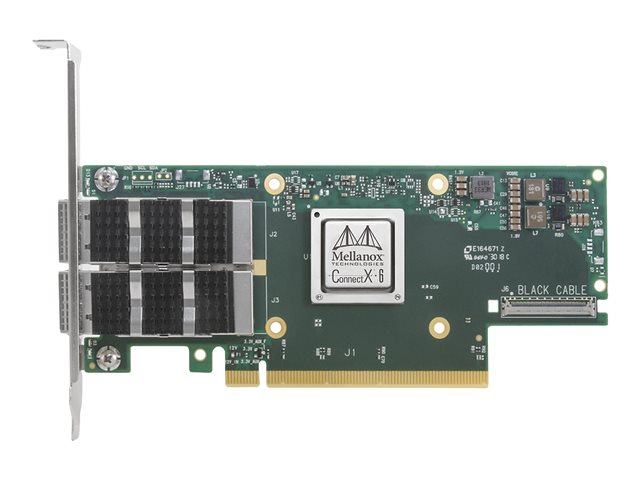

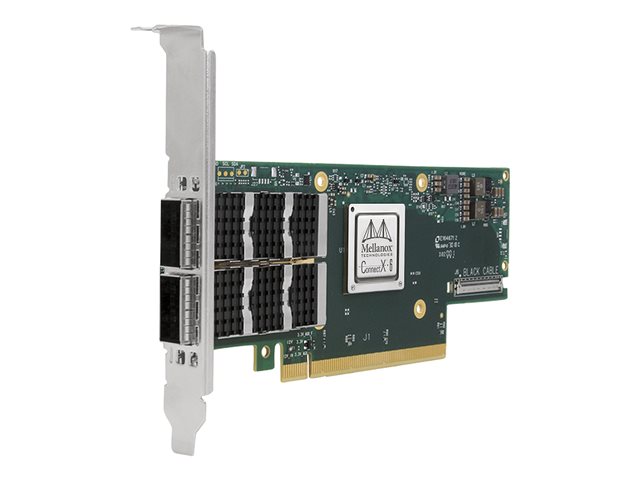

NVIDIA ConnectX-6 VPI MCX653106A-ECAT - Single Pack - network adapter - PCIe 4.0 x16 - 100Gb Ethernet / 100Gb Infiniband QSFP56 x 2
Device Type
Network adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express 4.0 x16
PCI Specification Revision
PCIe 4.0, PCIe 1.1, PCIe 2.0, PCIe 3.0
Ports
100Gb Ethernet / 100Gb Infiniband QSFP56 x 2
Dimensions (WxDxH)
16.765 cm x 6.89 cm
Data Link Protocol
100 Gigabit InfiniBand, 100GbE, 10GbE, 25GbE, 40GbE, 50GbE
Network / Transport Protocol
TCP/IP, UDP/IP, SMB, NFS, iSCSI, SRP
Compliant Standards
IBTA 1.3, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ap, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 1588v2, IEEE 1149.1, IEEE 1149.6
System Requirements
Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, Microsoft Windows, FreeBSD, VMware ESX
Manufacturer Warranty
1-year warranty

Specifications

EAN / GTIN:
7290108488487
General
Device Type
Network adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express 4.0 x16
PCI Specification Revision
PCIe 4.0, PCIe 1.1, PCIe 2.0, PCIe 3.0
Networking
Ports
100Gb Ethernet / 100Gb Infiniband QSFP56 x 2
Connectivity Technology
Wired
Data Link Protocol
100 Gigabit InfiniBand, 100 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet
Network / Transport Protocol
TCP/IP, UDP/IP, SMB, NFS, iSCSI, SRP
Features
InfiniBand FDR Link support, InfiniBand HDR100 Link support, InfiniBand QDR Link support, VPI, RoCE, NFV, NVMe-oF, SDN, ASAP, TPH, DPC, AER, ACS, PASID, ATS, MSI-X, MSI, Jumbo Frames support (up to 9600 bytes), Energy Efficient Ethernet, Link Aggregation, VLAN Tagging, QCN, ETS, PFC, UMR, XRC transport, DCT, ODP, MPI Tag Matching, Rendezvous protocol offload, burst buffer offload, In-Network Memory registration-free RDMA memory access, LRO, LSO, checksum offload support, RSS, TSS, HDS, DPDK, iSER, VXLAN, NVGRE, GENEVE support, SR-IOV, NPAR, QoS, NC-SI, MCTP over SMBus, Ethernet remote boot, InfiniBand remote boot, iSCSI remote boot, UEFI support, PXE support, MPLS support
Compliant Standards
IBTA 1.3, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ap, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 1588v2, IEEE 1149.1, IEEE 1149.6
Expansion / Connectivity
Interfaces
2 x 100Gb Ethernet / 100Gb Infiniband - QSFP56
Miscellaneous
Included Accessories
Tall bracket
Encryption Algorithm
AES-XTS
Compliant Standards
RoHS
Software / System Requirements
OS Required
Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, Microsoft Windows, FreeBSD, VMware ESX
Dimensions & Weight
Depth
16.765 cm
Height
6.89 cm
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
