HPE 546SFP+ - network adapter - PCIe 3.0 x8 - 10 G

Images Manuals

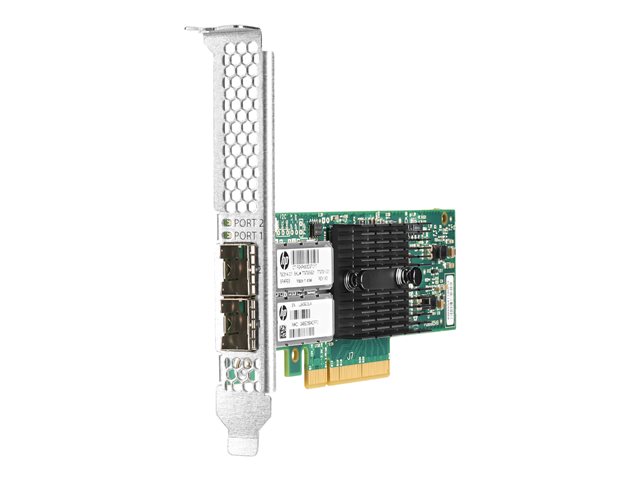

Images for illustrative purposes

HPE 546SFP+

View all HPE PCI / M.2 Cards and Adapters - Visit the HPE Store (779793-B21) - (ECE3408922)

Ethernet 10G 2-port 546SFP+ Adptr

Delivers Outstanding Server and Storage Utilization
Low Latency RDMA Over Converged Ethernet (RoCE) and VXLAN

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€729.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Do you need a 10Gb 2-port Adapter that is designed to optimize cloud efficiency and improve performance? The HPE Ethernet 10Gb 2-port 546 SFP+ Adapter offers performance, efficiency and security for applications where I/O, block storage and database performance are critical and the need for maximum Virtual Machine density and up-scalability are greatest. It also offers full integration with the most popular cloud orchestration packages.

Features Summary

Delivers Outstanding Server and Storage Utilization
Provides hardware offloads which free CPU cycles to run application workloads rather than virtual network transport processing.
Effectively addresses the increasing demand for an overlay network, enabling superior performance by introducing advanced NVGRE and VXLAN hardware offload engines.
Data center operators can decouple the overlay network layer from the physical NIC performance, thus achieving native performance in the new network architecture.
Low Latency RDMA Over Converged Ethernet (RoCE) and VXLAN
Delivers low-latency and high performance over Ethernet networks with RoCE for faster storage access.
Frees up CPU cycles and allow more processing power to be used for the application instead of for moving data.
Offloads VXLAN operations from the hypervisor to the NIC.

Specification Summary

Product Description

HPE 546SFP+ - network adapter - PCIe 3.0 x8 - 10 Gigabit SFP+ x 2

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express 3.0 x8

PCI Specification Revision

PCIe 3.0

Ports

10 Gigabit SFP+ x 2

Data Link Protocol

10GbE

Data Transfer Rate

10 Gbps

Processor

1 x Mellanox ConnectX-3

RAM

128 MB

Compliant Standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg

System Requirements

Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2008 R2 SP1 (64-bits), Red Hat Enterprise Linux 6.5, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, SuSE Linux Enterprise Server 11 SP3 x64 Edition, VMware ESXi 5.1 update 3, VMware ESXi 5.5 update 2, Citrix XenServer 6.5, SuSE Linux Enterprise Server 12

Manufacturer Warranty

1-year warranty

Designed For

Apollo 4200 Gen9; ProLiant DL120 Gen9, DL160 Gen9, DL180 Gen9, DL20 Gen9, DL360 Gen9, DL380 Gen9, DL560 Gen9, DL580 Gen8, DL60 Gen9, DL80 Gen9, ML110 Gen9, ML150 Gen9, ML350 Gen9, XL170r Gen9, XL190r Gen9, XL230a Gen9, XL270d Gen9; StoreEasy 1450, 1850, 3850

Specifications

EAN / GTIN:

888793239919

General

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express 3.0 x8

PCI Specification Revision

PCIe 3.0

Networking

Ports

10 Gigabit SFP+ x 2

Connectivity Technology

Wired

Data Link Protocol

10 Gigabit Ethernet

Data Transfer Rate

10 Gbps

Features

IPv6 support, QoS, IPv4 support, PXE support, LSO, TSO, TCP/IP checksum offload, RoCE

Compliant Standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg

Processor / Memory

Processor

1 x Mellanox ConnectX-3

RAM

128 MB

Expansion / Connectivity

Interfaces

2 x 10Gb Ethernet - SFP+

Miscellaneous

Compliant Standards

FCC Class A certified, UL, CISPR 22 Class A, EN55024, EN55022 Class A, WHQL, ICES-003 Class A, WEEE, RoHS, MIC Class A, ACA, BSMI Class A, ACPI 1.1a, VCCI Class A

Power

Power Consumption Operational

8.4 Watt

Software / System Requirements

OS Required

Manufacturer Warranty

Service & Support

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

55 °C

Humidity Range Operating

15 - 80% (non-condensing)

Compatibility Information

Designed For

HPE Apollo 4200 Gen9 for Google ¦ HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 High Performance, DL360 Gen9 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL580 Gen8, DL580 Gen8 Base, DL580 Gen8 High Performance, DL60 Gen9, DL60 Gen9 Base, DL60 Gen9 Entry, DL80 Gen9, DL80 Gen9 Base, DL80 Gen9 Entry, ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML150 Gen9, ML150 Gen9 Base, ML150 Gen9 Entry, ML150 Gen9 Performance, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, XL170r Gen9, XL190r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G), XL270d Gen9 ¦ HPE StoreEasy 1450, 1850, 3850 Gateway Single Node
