HPE H240 Smart Host Bus Adapter - storage controll

Images Manuals

Images for illustrative purposes

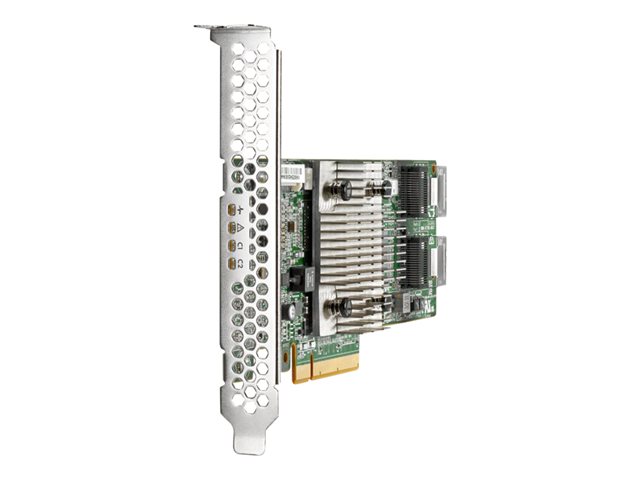

HPE H240 Smart Host Bus Adapter

View all HPE Storage Adapters | Controllers - Visit the HPE Store (726907-B21) - (ECE3221161)

H240 Smart HBA

Cost-Effective SAS Storage Connectivity
Efficient and Simple Configuration, Deployment and Management

FREE Delivery on orders over €250

0 Available to Ship
Restock 02-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€289.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Do you need a cost effective controller that provides fast access to the data on the internal server drives? The HPE H240 Smart Host Bus Adapter comes in a low profile, PCIe3 x8 standup form factor that provides a reliable, high performing SAS connectivity to the data in the server internal drives. Featuring eight internal physical links, it delivers 12 Gb/s SAS performance. The H240 Smart Host Bus Adapter provides flexibility to run as an HBA mode or simple RAID mode. When operating in simple RAID mode, it provides RAID 0, RAID 1, and RAID 5 with optional HPE Secure Encryption capabilities. Unlike the HPE Smart Array Controllers, the H240 does not offer any acceleration or support cache modules.

Features Summary

Cost-Effective SAS Storage Connectivity
The HPE H240 Smart Host Bus Adapter comes in a low-profile, PCIe3 x8 standup form factor that provides a basic building block for simple RAID storage solution for HPE Gen9 Servers.
Delivering up to 12 Gb/s SAS connectivity for internal hard drives it provides increased scalability, basic data protection, and flexibility for storage connectivity.
You get optimized performance and uptime for your entry-level storage requirements.
This HBA supports SAS, SATA, Solid State Drives (SSDs) and internal tape drives for increased flexibility.
Efficient and Simple Configuration, Deployment and Management
The HPE H240 Host Bus Adapter and the attached internal storage devices are configured, deployed and managed by the easy-to-use HPE Smart Storage Administrator software which is included in the intelligent provisioning capabilities of the server.
Delivers proactive service warnings and analysis based on Solid State Drive (SSD) endurance reports from the HPE SmartSSD Wear Gauge utility.
Simplify the management of the attached storage pool with HPE Smart Storage Administrator.

Specification Summary

Product Description

HPE H240 Smart Host Bus Adapter - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8

Device Type

Storage controller - plug-in card - low profile

Bus Type

PCIe 3.0 x8

Interface

SATA 6Gb/s / SAS 12Gb/s

Data Transfer Rate

12 Gbit/s

Supported Devices

Hard drive, solid state drive

Channel Qty

RAID Level

RAID 0, RAID 1, RAID 5

System Requirements

SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Microsoft Windows Server 2012 with Hyper-V, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 update 5

Dimensions (WxDxH)

1.6 cm x 16.8 cm x 6.86 cm

Manufacturer Warranty

1-year warranty

Designed For

Apollo 4510 Gen9, 4530; ProLiant DL160 Gen9, DL180 Gen9, DL20 Gen9, DL360 Gen9, DL380 Gen9, DL560 Gen9, DL80 Gen9, ML30 Gen9, ML350 Gen9, XL170r Gen9, XL230a Gen9, XL270d Gen9

Specifications

EAN / GTIN:

887758379271

General

Device Type

Storage controller - plug-in card - low profile

Host Bus

PCIe 3.0 x8

Storage Controller

Interface

SATA 6Gb/s / SAS 12Gb/s

Data Transfer Rate

12 Gbit/s

Supported Devices

Hard drive, solid state drive

Channel Qty

RAID Level

RAID 0, RAID 1, RAID 5

Expansion / Connectivity

Interfaces

2 x SATA 6Gb/s / SAS 12Gb/s (internal)

Miscellaneous

Included Accessories

Low-profile bracket

Compliant Standards

WEEE

Software / System Requirements

OS Required

Manufacturer Warranty

Service & Support

Limited warranty - parts - 1 year

Dimensions & Weight

Width

1.6 cm

Depth

16.8 cm

Height

6.86 cm

Compatibility Information

Designed For

HPE Apollo 4510 Gen9, 4530 ¦ HPE ProLiant DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9 Solution, DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen9 Entry, DL80 Gen9, ML30 Gen9 Entry, ML30 Gen9 Solution, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, XL170r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G), XL270d Gen9
