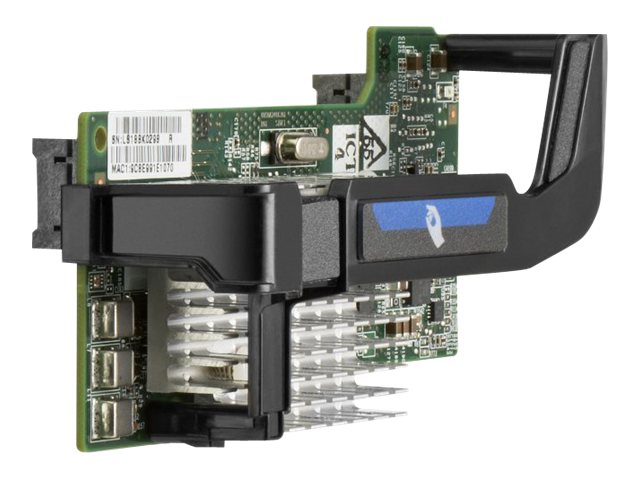

HPE FlexFabric 534FLB - network adapter - PCIe 2.0

Images Manuals

Images for illustrative purposes

HPE FlexFabric 534FLB

View all HPE PCI / M.2 Cards and Adapters - Visit the HPE Store (700741-B21) - (ECE2870478)

FlexFabric 10Gb 2P 534FLB Adptr

Accelerates Server Performance
Robust Virtualization Capabilities
Streamlines Deployment and Management
Network Partitioning to Reduce Network Sprawl and Take Full Advantage of Bandwidth

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€739.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Are you looking for a 10Gb Ethernet adapter with configurable flexibility to prepare for the new hybrid server infrastructure? Increased data center workload demands are putting pressure on server I/O. The FlexFabric 10Gb 2-port 534FLB Adapter increases throughput for the HPE ProLiant Gen8 Blade Server series by using the innovative HPE FlexibleLOM form factor to offer dual-ports in an SFP+ adapter configuration that includes new storage I/O functionality, making it a full Converged Network Adapter. This is the solution of choice for workload-intensive computing environments. If you are looking for a 10GbE Adapter, the FlexFabric 534FLB offers everything you need plus the advanced features included in the FlexFabric series to simplifying your network and storage topology.

Features Summary

Accelerates Server Performance
The HPE FlexFabric 10Gb 2-port 534FLB Adapter boosts network performance with full line-rate 10GbE throughput across all ports.
Provides increased server performance by delivering full hardware offload for storage traffic.
Robust Virtualization Capabilities
The HPE FlexFabric 10Gb 2-port 534FLB Adapter delivers Single Root I/O Virtualization (SR-IOV) support to allow multiple operating systems to share a physical interconnect.
Enhances network management and efficiency with support for VLAN tagging.
Streamlines Deployment and Management
Increases network flexibility, scalability, and capacity with HPE Flex-10 technology.
Makes Broadcom Ethernet solutions available across a wide range of Hewlett Packard Enterprise server platforms.
Unifies the NIC and storage management using HPE Virtual Connect.
Network Partitioning to Reduce Network Sprawl and Take Full Advantage of Bandwidth
Allowing administrators to configure a 10 Gb adapter as four separate partitions or physical functions. Eliminate multiple NICs, HBAs, cables consolidating multiple connections on to one network adapter.
Ideal for customers in virtual server environments by allowing them to segment the high performance connection and provide the right amount of network bandwidth to the applications.

Specification Summary

Product Description

HPE FlexFabric 534FLB - network adapter - PCIe 2.0 x8 - 10Gb Ethernet x 2

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express 2.0 x8

PCI Specification Revision

PCIe 2.0

Ports

10Gb Ethernet x 2

Data Link Protocol

10GbE

Data Transfer Rate

10 Gbps

Processor

1 x Broadcom BCM57810S

RAM

900 MB

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qau

System Requirements

SunSoft Solaris 10, Microsoft Windows Server 2008 SP2, Red Hat Enterprise Linux Server, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, Microsoft Windows Server 2008 R2 SP1 (32/64 bits), VMware vSphere 5.0, VMware vSphere 4.1

Designed For

ProLiant BL420c Gen8, BL460c Gen8, BL465c Gen8, BL660c Gen8, BL660c Gen8 Performance, WS460c Gen8, WS460c Gen8 Graphics Expansion

Specifications

EAN / GTIN:

887111291967

General

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express 2.0 x8

PCI Specification Revision

PCIe 2.0

Networking

Ports

10Gb Ethernet x 2

Connectivity Technology

Wired

Data Link Protocol

10 Gigabit Ethernet

Data Transfer Rate

10 Gbps

Features

TCP/IP offloading, QoS, Jumbo Frames support, PXE support, SR-IOV, tagged VLAN, TOE

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qau

Processor / Memory

Processor

1 x Broadcom BCM57810S

RAM

900 MB

Expansion / Connectivity

Interfaces

2 x 10Gb Ethernet

Miscellaneous

Compliant Standards

FCC Class A certified, UL, BSMI CNS 13438 Class A, WEEE, RoHS, FCC Part 15 A, AS/NZS, VCCI V-3 Class A ITE, EN 61000-3-2:2006, EN 61000-3-3:2008, ICES-003 issue 4 Class A, KN24, KN22 Class A, EN55024:1998 + A1 + A2, EN 55022 Class A

Software / System Requirements

OS Required

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

55 °C

Humidity Range Operating

10 - 90% (non-condensing)

Compatibility Information

Designed For

HPE ProLiant BL420c Gen8, BL460c Gen8, BL465c Gen8, BL660c Gen8, BL660c Gen8 Performance, WS460c Gen8, WS460c Gen8 Graphics Expansion
