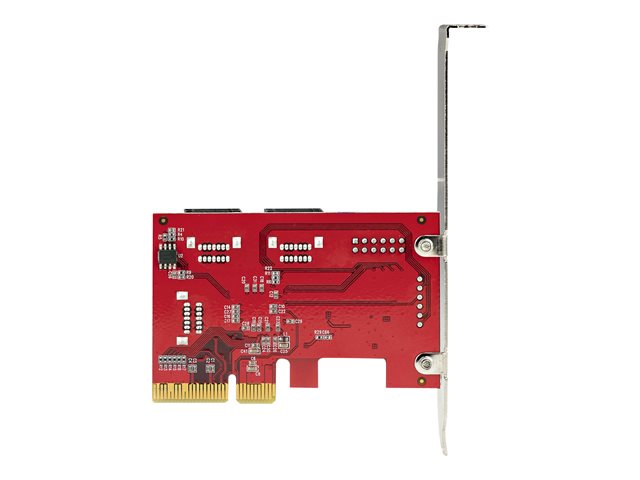

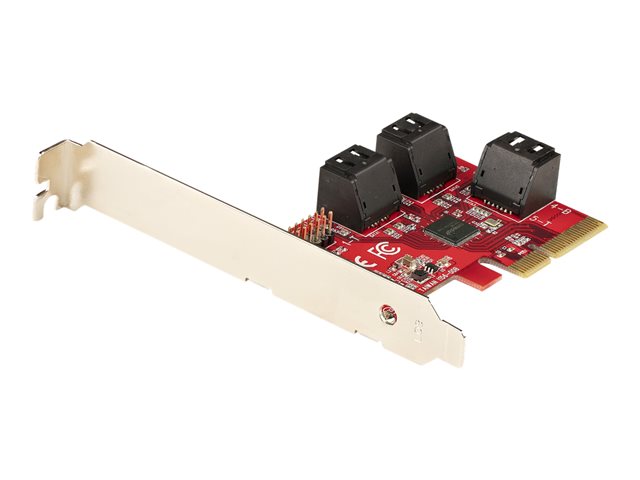

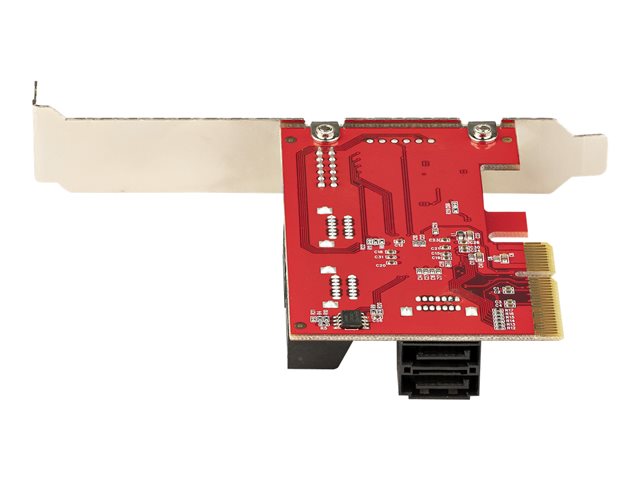

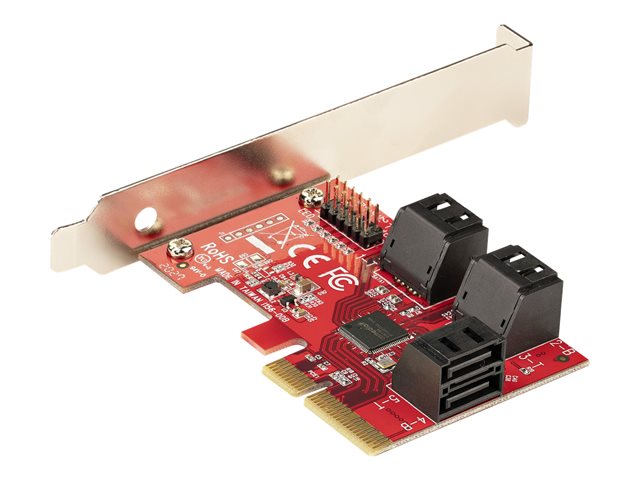

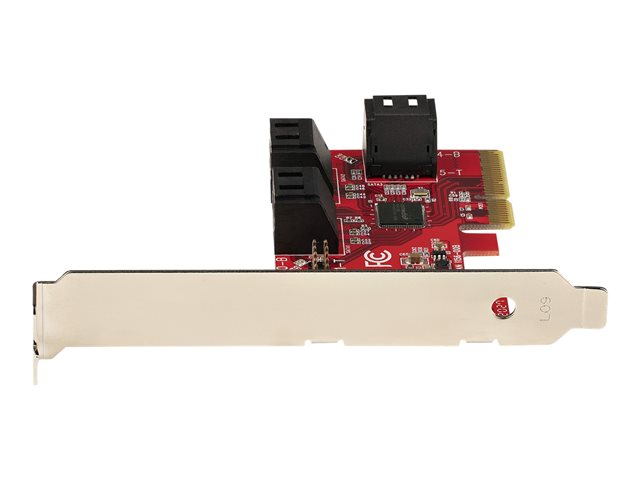

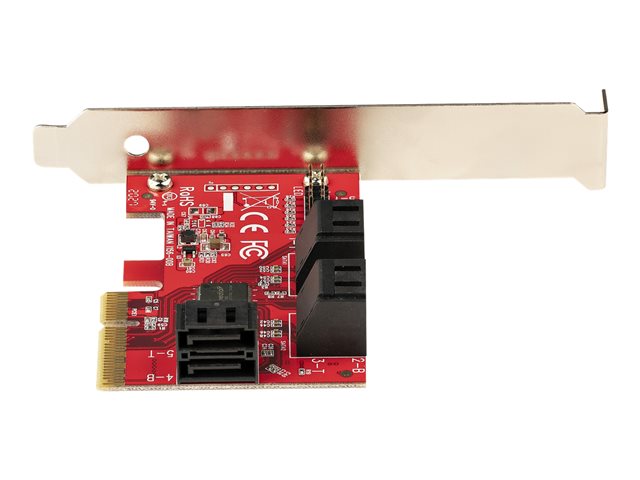

Startech SATA PCIe Card, 6 Port PCIe SATA Expansion card, 6Gbps SATA Card, Low/Full Profile, Stacked SATA Connectors, ASM1166 Non-Raid SATA Controller

View all STARTECH.COM Storage Adapters | Controllers - Visit the STARTECH.COM Store (6P6G-PCIE-SATA-CARD) - (MMECD31622)

Startech SATA PCIe Card, 6 Port PCIe SATA Expansion card, 6Gbps SATA Card, Low/Full Profile, Stacked SATA Connectors, ASM1166 Non-Raid SATA Controller Card - PCI Express to SATA Converter - storage controller - SATA 6Gb/s - PCIe 3.0 x4

ASM1166 to Deliver 6-Port SATA 6Gbps Performance
Wide Compatibility
Hassle-Free Installation

FREE Delivery on orders over €250

2 Available to Ship
Order within 8Hrs 19Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€107.12~~

€77.69 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

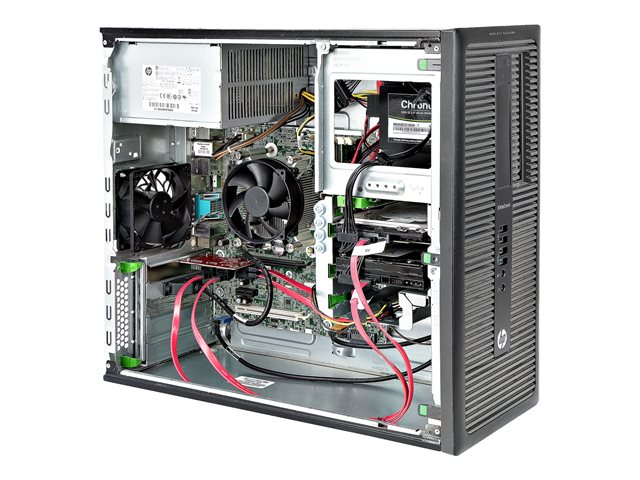

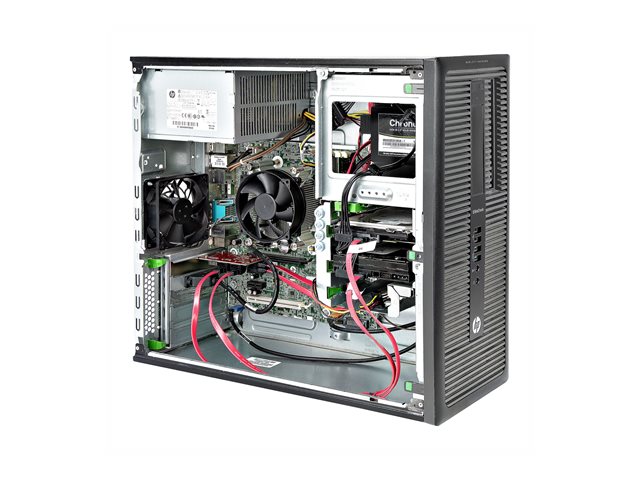

This 6-port SATA III (6Gbps) controller enables you to add six SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.

Features Summary

ASM1166 to Deliver 6-Port SATA 6Gbps Performance

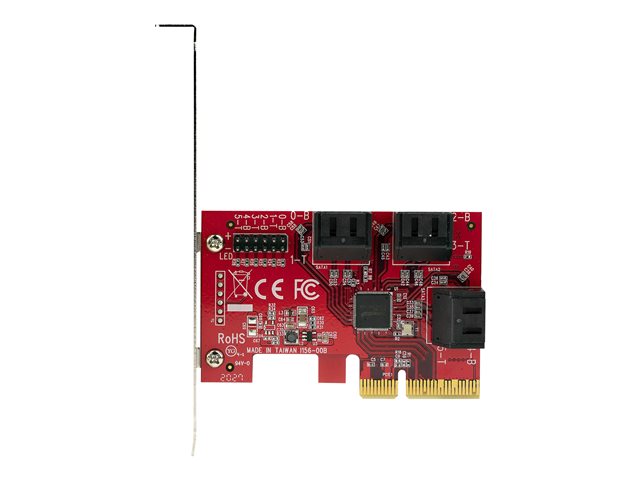

Featuring the ASM1166 controller, this SATA card enables the connection of six high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via six individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately). To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.
Hassle-Free Installation

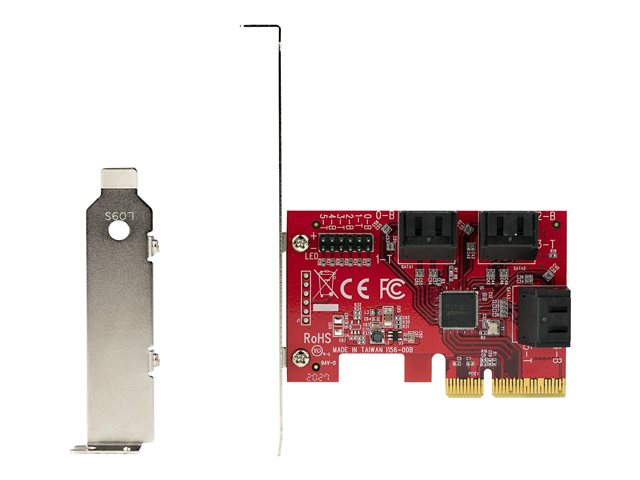

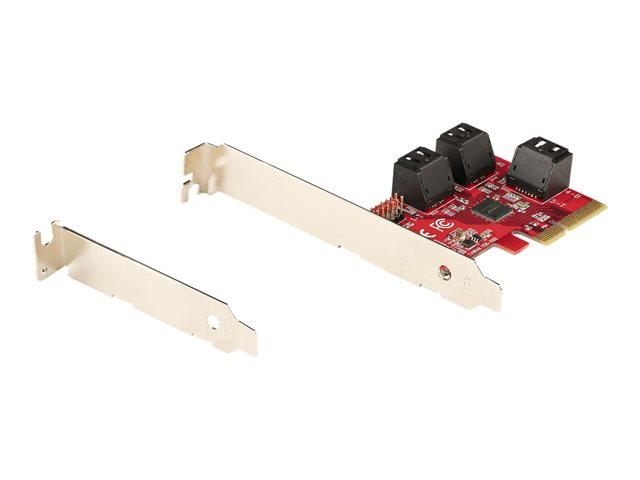

The SATA controller card features plug-and-play installation and can be installed in full-profile and low-profile computer systems with a full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building. 6P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.

Specification Summary

Product Description

Device Type

Storage controller - plug-in card - low profile

Bus Type

PCIe 3.0 x4

Colour

Red

Interface

SATA 6Gb/s

Data Transfer Rate

6 Gbit/s

Supported Devices

Hard drive, solid state drive

Max Storage Devices Qty

System Requirements

Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, Linux 2.6.32 or later, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 8.1 / 10 / 11

Dimensions (WxDxH)

1.6 cm x 8.5 cm x 5.4 cm

Weight

75 g

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030893749

General

Device Type

Storage controller - plug-in card - low profile

Host Bus

PCIe 3.0 x4

Colour

Red

Storage Controller

Interface

SATA 6Gb/s

Data Transfer Rate

6 Gbit/s

Supported Devices

Hard drive, solid state drive

Max Storage Devices Qty

Processor

ASM1166

Expansion / Connectivity

Interfaces

6 x SATA 6Gb/s - SATA (internal)

Miscellaneous

Included Accessories

Low-profile bracket

Features

S.M.A.R.T. support, TRIM support, 4Kn drive compatible, bootable, ATAPI support

Compliant Standards

RoHS, WEEE

Software / System Requirements

OS Required

Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, Linux 2.6.32 or later, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 8.1 / 10 / 11

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Dimensions & Weight

Width

1.6 cm

Depth

8.5 cm

Height

5.4 cm

Weight

75 g

Dimensions & Weight (Shipping)

Shipping Width

17 cm

Shipping Depth

14.2 cm

Shipping Height

3 cm

Shipping Weight

120 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

85 °C

Humidity Range Operating

20 - 80% RH
