Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.
The next generation of HPE InfiniBand Adapters for select HPE ProLiant BLc, DL, ML, SL, and XL servers, Gen8 and Gen9 models. Based on Mellanox ConnectX-3 Pro technology for unprecedented scalability and fabric flexibility, they are all dual ported and can function as a dual ported InfiniBand card, a dual ported Ethernet card, or a mixed function card in rack servers. Combined with HPE InfiniBand FDR edge switches, they deliver low-latency InfiniBand bandwidth, up to 56 Gb/s Fourteen Data Rate (FDR) or up to 40 Gb/s Quad Data Rate (QDR), for performance driven server and storage clustering applications in High Performance Computing (HPEC) and enterprise data centers.
Specification Summary
Product Description

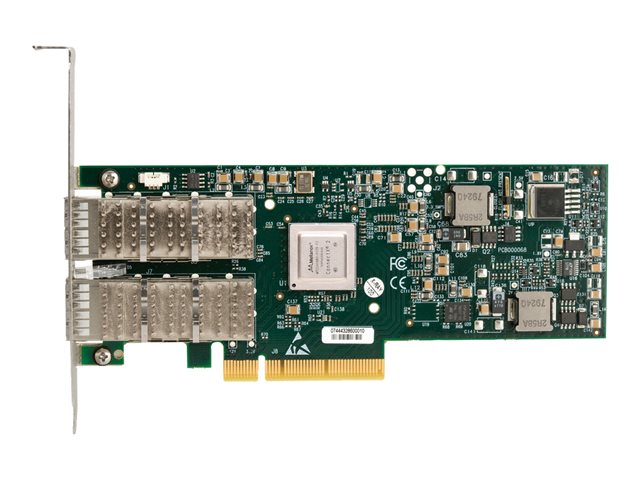

HPE 544M - network adapter - PCIe 3.0 x8 - 2 ports
Device Type
Network adapter
Interface (Bus) Type
PCI Express 3.0 x8
Dimensions (WxDxH)
9.9 cm x 8.9 cm
Data Link Protocol
10GbE, InfiniBand
Data Transfer Rate
40 Gbps
Manufacturer Warranty
1-year warranty
Designed For
ProLiant BL460c Gen8, BL660c Gen8; Mellanox SX1018HP Ethernet Switch for c-Class BladeSystem
