Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

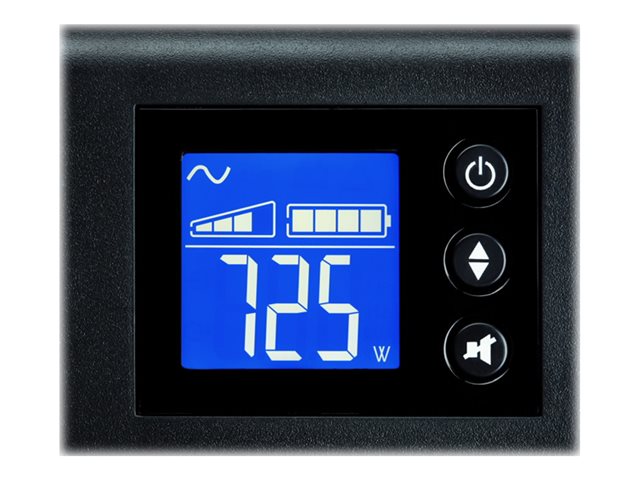

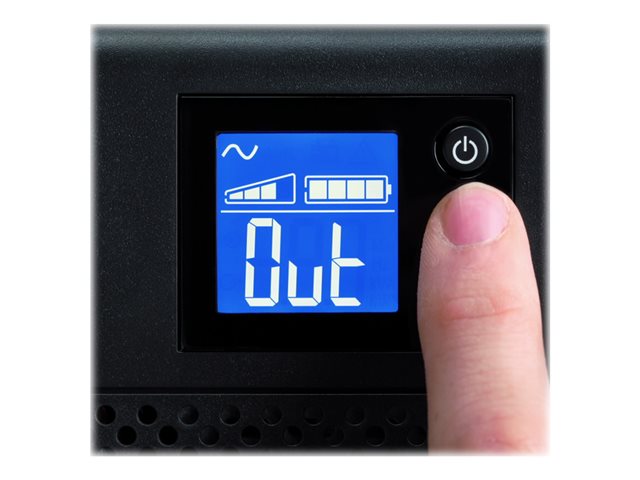

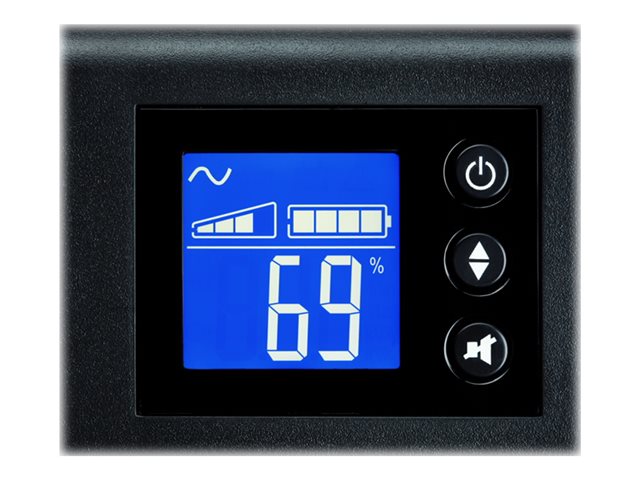

Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing the range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today's most sensitive IT equipment.


Features Summary

  • Efficient management
    Equipped with both USB and RS-232 interfaces, the Eaton 5SC UPS allows for seamless management and monitoring, ensuring your power backup system is always optimized for performance.
  • Reliable power protection
    Featuring line interactive UPS technology, the Eaton 5SC provides reliable power protection and battery backup, safeguarding your equipment from power disturbances.

Specification Summary

Product Description

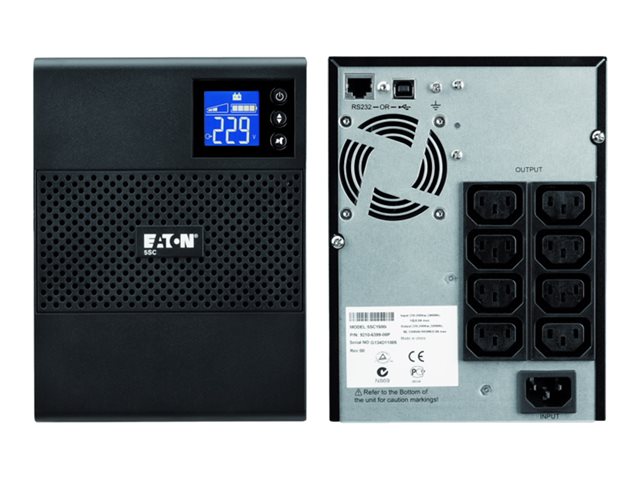

Eaton 5SC 1500i - UPS - 1050 Watt - 1500 VA
Device Type
UPS - external
Weight
16.5 kg
Input Wiring
1-phase
Input Voltage
AC 220/230/240 V
Output Voltage
AC 220-240 V
Power Capacity
1050 Watt / 1500 VA
Input Connectors
1 x power IEC 60320 C14
Output connectors
8 x power IEC 60320 C13
Battery
Lead Acid - 9 Ah
Batteries Qty
3
Run Time (Up To)
5 min at full load
Networking
RS-232, USB
Included Accessories
BS cord 10A
Colour
Black
Dimensions (WxDxH)
24 cm x 55 cm x 30 cm
Manufacturer Warranty
2-year warranty

Specifications

EAN / GTIN:
3553340620386
General
Device Type
UPS - external
Colour
Black
Power Device
UPS Technology
Line interactive
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 184 - 276 V
Input Wiring
1-phase
Frequency Required
45 - 55 / 55 - 65 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
8 x power IEC 60320 C13
Output Voltage
AC 220-240 V
Power Capacity
1050 Watt / 1500 VA
Output Waveform
Sinewave
Circuit Protection
Circuit breaker
Efficiency
97%
Power Factor (PF)
0.7
Battery
Quantity
3
Technology
Lead Acid
Voltage Provided
12 V
Capacity
9 Ah
Run Time (Up To)
5 min at full load ¦ 13 min at half load ¦ 8 min at 70% load
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces

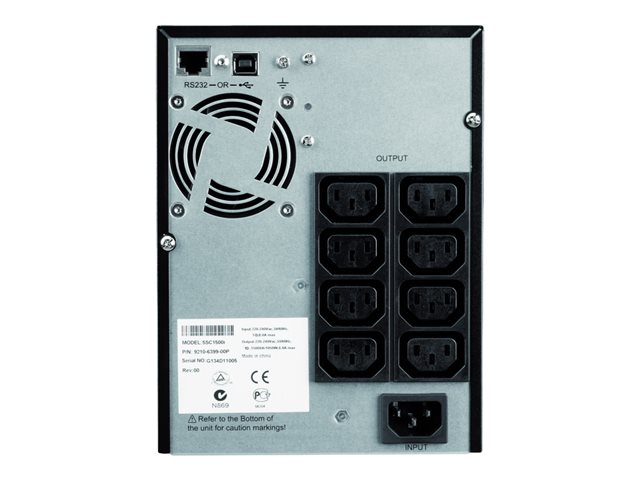

1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45
Miscellaneous
Included Accessories
BS cord 10A
Cables Included
USB cable ¦ 2 x power cable (IEC) ¦ Serial cable
Features
Advance Battery Management (ABM), LCD display, deep discharge protection
Compliant Standards
UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2
Manufacturer Warranty
Service & Support
Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
0 - 85%
Dimensions & Weight
Width
24 cm
Depth
55 cm
Height
30 cm
Weight
16.5 kg
