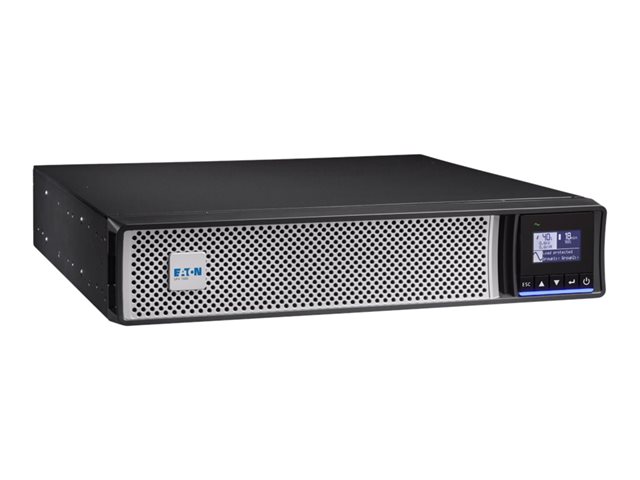

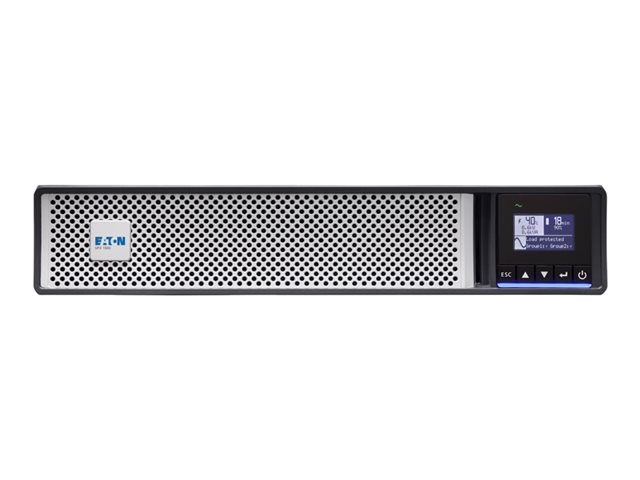

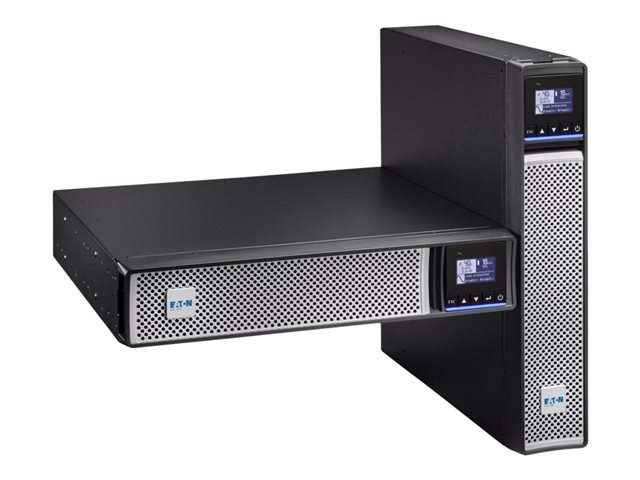

Eaton 5PX G2 - UPS - 1500 Watt - 1500 VA

Images Manuals

Images for illustrative purposes

Eaton 5PX G2

Name: Eaton 5PX G2
Brand: EATON
SKU: MMECE92157
Price: 1129.76 EUR
Availability: InStock

View all EATON Uninteruptable Power Supply - Visit the EATON Store (5PX1500IRT2UG2BS) - (MMECE92157)

Model: Eaton 5PX

5PX G2 - UPS - 1500 Watt - 1500 VA

Reliable power capacity
Advanced management options
Maintenance-free battery
Flexible connectivity options
Environmentally compliant

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

6 Available to Ship
Order within 8Hrs 10Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€1771.69~~

€1129.76 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton 5PX G2 is designed to provide reliable power protection and management for critical IT equipment. With a power capacity of 1500 VA and features such as Automatic Voltage Regulation (AVR) and Advance Battery Management (ABM), this UPS ensures consistent performance while prolonging battery life. It accommodates a wide input voltage range of AC 150 - 294 V, suitable for various environments. Its robust design includes a maintenance-free battery, an intuitive LCD display, and eight output connectors, ensuring efficient power distribution across devices. With a range of remote management options including SNMP and various management interfaces, the Eaton 5PX G2 offers comprehensive monitoring and control capabilities. Crafted to withstand operating temperatures from 0°C to 40°C and high humidity up to 90% (non-condensing), this UPS is built to handle demanding conditions. Compliant with ENERGY STAR and multiple safety standards, it delivers peace of mind and confidence in power reliability for valuable equipment.

Specification Summary

Product Description

Eaton 5PX G2 - UPS - 1500 Watt - 1500 VA

Device Type

UPS - rack-mountable / external

Rack Size

Weight

22.5 kg

Input Wiring

1-phase

Input Voltage

AC 150 - 294 V

Output Voltage

AC 200/208/220/230/240 V + 6% / - 10%

Power Capacity

1500 Watt / 1500 VA

Input Connectors

1 x power IEC 60320 C14

Output connectors

8 x power IEC 60320 C13

Battery

Lead Acid - 9 Ah

Batteries Qty

4 (supported)

Networking

RS-232, USB, Ethernet 10/100/1000

Remote Management Protocol

SNMP

Included Accessories

Tower stand

Colour

Black, silver

Dimensions (WxDxH)

49.8 cm x 58.5 cm x 24 cm

Environmental Standards

ENERGY STAR

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

3553340620850

General

Device Type

UPS - rack-mountable / external

Height (Rack Units)

Colour

Black, silver

Power Device

UPS Technology

Line interactive

Input Voltage

AC 150 - 294 V

Input Voltage Range

AC 160 - 294 V

Input Voltage Range (Adjustable)

AC 150 - 294 V

Frequency Provided

50/60 Hz

Input Wiring

1-phase

Frequency Required

47 - 70 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

8 x power IEC 60320 C13

Output Voltage

AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz

Power Capacity

1500 Watt / 1500 VA

Output Waveform

Sinewave

Battery

Quantity

4 (supported)

Technology

Lead Acid

Voltage Provided

12 V

Capacity

9 Ah

Features

Maintenance free

Networking

Remote Management Interface

RS-232, USB, Ethernet 10/100/1000

Remote Management Protocol

SNMP

Expansion / Connectivity

Interfaces

1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (Gigabit Ethernet) - RJ-45 ¦ Remote power (on/off) - mini terminal block ¦ Relay output - mini terminal block

Expansion Slots

1 (total) / 0 (free) x Expansion Slot

Miscellaneous

Included Accessories

Tower stand

Cables Included

2 x power cable (IEC) ¦ Power cable

Rack Mounting Kit

Included

Features

Automatic Voltage Regulation (AVR), LCD display, Advance Battery Management (ABM)

Compliant Standards

CAN/CSA C22.2, CM, cTUVus, EAC, EN 62040-1, EN 62040-2, EN 62040-3, IEC 62040-1, IEC 62040-2, IEC 62040-3, REACH, RoHS, UKCA, UL 1778

Sustainability Information

ENERGY STAR

Yes

Manufacturer Warranty

Service & Support

Limited warranty - electrical components and functions - 3 years ¦ Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 90% (non-condensing)

Dimensions & Weight

Width

49.8 cm

Depth

58.5 cm

Height

24 cm

Weight

22.5 kg
