Eaton 5PX G2 - UPS - 1000 Watt - 1000 VA

Images Manuals

Images for illustrative purposes

Eaton 5PX G2

Name: Eaton 5PX G2
Brand: EATON
SKU: MMECE92160
Price: 1149.75 EUR
Availability: InStock

View all EATON Uninteruptable Power Supply - Visit the EATON Store (5PX1000IRT2UG2BS) - (MMECE92160)

Model: Eaton 5PX

5PX G2 - UPS - 1000 Watt - 1000 VA

Reliable power protection
Smart management features
Versatile connectivity options
Environmentally friendly design
Efficient cooling operation

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

2 Available to Ship
Order within 7Hrs 51Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€1543.15~~

€1149.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton 5PX G2 UPS provides protection for critical systems with a robust design and a range of convenient features. It supports a capacity of 1000 VA and delivers sinewave output, ensuring that devices operate optimally even during power fluctuations. With a run time of up to 8 minutes at 80% load, this UPS offers sufficient backup power during short outages. Features such as the LCD display and advanced battery management help monitor power conditions and battery health effectively. Equipped with multiple connectivity options, including a 9-pin D-Sub and USB Type-B, the Eaton 5PX G2 allows integration with existing systems. It is designed for various operating environments, with a temperature range of 0°C to 40°C and a humidity tolerance of 0 - 90% RH. Its compliance with several environmental standards, along with ENERGY STAR certification, reflects its energy efficiency and commitment to sustainability.

Specification Summary

Product Description

Eaton 5PX G2 - UPS - 1000 Watt - 1000 VA

Device Type

UPS - rack-mountable / external

Rack Size

19" - 2U

Weight

19.6 kg

Output Voltage

AC 200/208/220/230/240 V + 6% / - 10%

Power Capacity

1000 Watt / 1000 VA

Input Connectors

1 x power IEC 60320 C14

Output connectors

8 x power IEC 60320 C13

Run Time (Up To)

8 min at 80% load

Networking

RS-232, USB

Included Accessories

Tower stand

Dimensions (WxDxH)

43.8 cm x 44.8 cm x 8.55 cm

Environmental Standards

ENERGY STAR

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

3553340620843

General

Device Type

UPS - rack-mountable / external

Height (Rack Units)

Rack Size

19"

Power Device

UPS Technology

Line interactive

Input Voltage Range

AC 160 - 294 V

Input Voltage Range (Adjustable)

AC 150 - 294 V

Frequency Provided

50/60 Hz ± 0.1Hz

Frequency Required

47 - 70 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

8 x power IEC 60320 C13

Output Voltage

AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz

Max Electric Current

10 A

Power Capacity

1000 Watt / 1000 VA

Output Waveform

Sinewave

Battery

Run Time (Up To)

30 min at 300 Watts ¦ 17 min at 500 Watts ¦ 8 min at 800 Watts

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

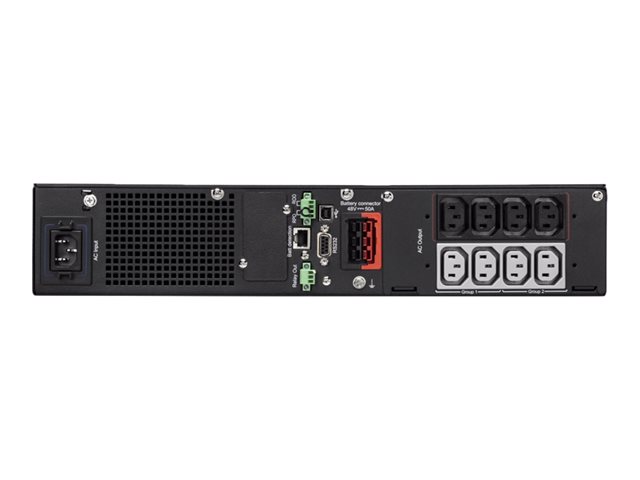

1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ Remote power (on/off) - mini terminal block ¦ Relay output - mini terminal block

Expansion Slots

1 (total) / 1 (free) x Expansion Slot

Miscellaneous

Included Accessories

Tower stand

Cables Included

2 x power cable - external ¦ Serial cable - external ¦ USB cable - external

Rack Mounting Kit

Included

Features

Advance Battery Management (ABM), deep discharge protection, LCD display, temperature-compensated battery charging, hot-swappable batteries

Compliant Standards

CM, CSA 22.2, cTUVus, EAC, EN 62040-1, EN 62040-2, EN 62040-3, IEC 62040-1, IEC 62040-2, IEC 62040-3, REACH, RoHS, UKCA, UL 1778

Sustainability Information

ENERGY STAR

Yes

Manufacturer Warranty

Service & Support

Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 90% RH (non-condensing)

Sound Emission

40 dBA

Dimensions & Weight

Width

43.8 cm

Depth

44.8 cm

Height

8.55 cm

Weight

19.6 kg
