Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Eaton 5P is an energy efficient line-interactive UPS with advanced LCD and energy metering features. The graphical LCD display provides clear information on the UPS's status and measurements on a single screen. Enhanced configuration capabilities are also available with easy-to-use navigation keys.


Features Summary

  • Manageability
    The graphical LCD display provides clear information on the UPS's status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.
  • Performance and efficiency
    Energy efficient UPS: with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs.
  • Pure sinewave output
    When operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
  • Adjustable tolerance and sensitivity
    Users can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset).
  • Stronger, longer battery life
    Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.

Specification Summary

Product Description

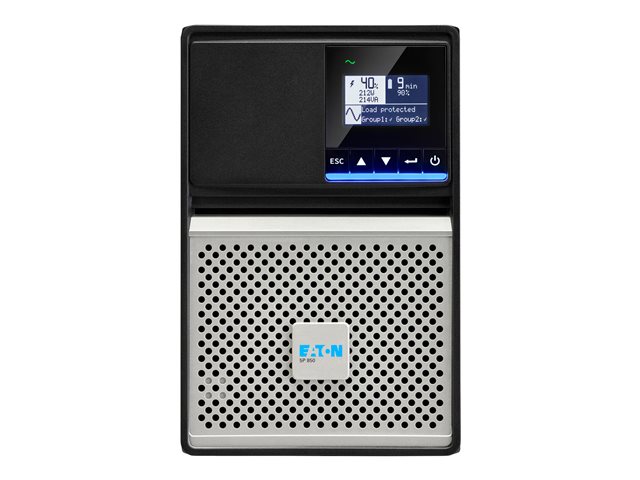

Eaton 5P 850i - Gen 2 - UPS - tower - 680 Watt - 850 VA
Device Type
UPS - external
Weight
10.46 kg
Input Wiring
1-phase
Input Voltage
AC 200/208/220/230/240 V
Output Voltage
AC 200/208/220/230/240 V + 6% / - 10%
Power Capacity
680 Watt / 850 VA
Input Connectors
1 x power IEC 60320 C14
Output connectors
6 x power IEC 60320 C13
Battery
Lead Acid - 7 Ah
Batteries Qty
2
Networking
RS-232, USB
Colour
Black/silver
Dimensions (WxDxH)
15 cm x 34.5 cm x 23.3 cm
Manufacturer Warranty
3-year warranty

Specifications

EAN / GTIN:
3553340710438
General
Device Type
UPS - external
Colour
Black/silver
Power Device
UPS Technology
Line interactive
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 160 - 294 V
Input Voltage Range (Adjustable)
AC 150 - 294 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Frequency Required
47 - 70 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
6 x power IEC 60320 C13
Output Voltage
AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
Power Capacity
680 Watt / 850 VA
Output Waveform
Sinewave
Efficiency
98%
Battery
Quantity
2
Technology
Lead Acid
Voltage Provided
12 V
Capacity
7 Ah
Features
Maintenance free
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x EPO (emergency power off) - terminal block ¦ 1 x management (USB) ¦ 1 x management (RS-232)
Expansion Slots
1 (total) / 1 (free) x Communication slot
Miscellaneous
Cables Included
USB cable - external ¦ 2 x power cable (IEC) - external ¦ AC input cable (BS 1363) - external
Features
User-replaceable batteries, Advance Battery Management (ABM), Human Interface Device (HID) support, battery self-diagnosis, deep discharge protection, LCD display, automatic shut down
Compliant Standards
LVD, EMC, RoHS, WEEE, Packaging Directive, IEC/EN 62040-1, IEC/EN 62040-2, IEC 62040-3, EN 62040-3, UL 1778, CSA 22.2, UKCA, CM, UKR, KCC, cTUVus, BIS
Manufacturer Warranty
Service & Support
Limited warranty - electrical components and functions - 3 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 90% (non-condensing)
Sound Emission
35 dB
Dimensions & Weight
Width
15 cm
Depth
34.5 cm
Height
23.3 cm
Weight
10.46 kg
