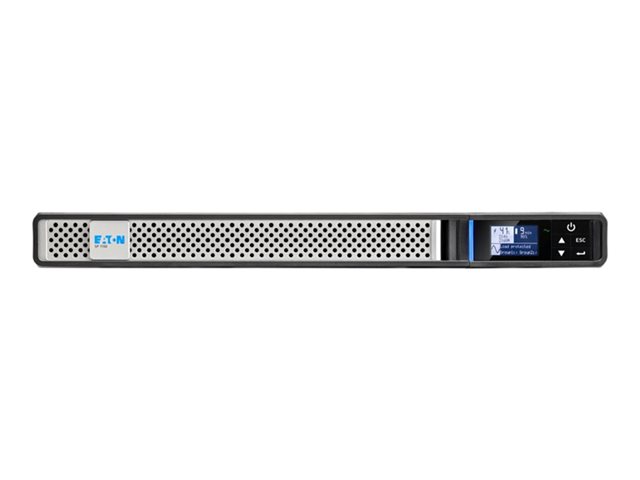

Eaton 5P 1150i - Gen 2 - UPS - 920 Watt - 1150 VA

Images Manuals

Images for illustrative purposes

Eaton 5P 1150i

Name: Eaton 5P 1150i
Brand: EATON
SKU: ECE10444542
Price: 1265.68 EUR
Availability: OutOfStock

View all EATON Uninteruptable Power Supply - Visit the EATON Store (5P1150IRNG2BS) - (ECE10444542)

Model: Eaton 5P

5P 1150i - Gen 2 - UPS (rack-mountable) - AC 200/208/220/230/240 V - 920 Watt - 1150 VA - 1-phase - 9 Ah - RS-232, USB, RJ-45 - output connectors: 6 - 1U - 19" - black, silver

Manageability
Performance and efficiency
Pure sinewave output
Adjustable tolerance and sensitivity
Stronger, longer battery life

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 07-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€1265.68 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Eaton 5P is an energy efficient line-interactive UPS with advanced LCD and energy metering features. The graphical LCD display provides clear information on the UPS's status and measurements on a single screen. Enhanced configuration capabilities are also available with easy-to-use navigation keys.

Features Summary

Manageability
The graphical LCD display provides clear information on the UPS's status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.
Performance and efficiency
Energy efficient UPS: with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs.
Pure sinewave output
When operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
Adjustable tolerance and sensitivity
Users can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset).
Stronger, longer battery life
Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.

Specification Summary

Product Description

Eaton 5P 1150i - Gen 2 - UPS - 920 Watt - 1150 VA

Device Type

UPS - rack-mountable

Rack Size

19" - 1U

Weight

14.54 kg

Input Wiring

1-phase

Input Voltage

AC 200/208/220/230/240 V

Output Voltage

AC 200/208/220/230/240 V + 6% / - 10%

Power Capacity

920 Watt / 1150 VA

Input Connectors

1 x power IEC 60320 C14

Output connectors

6 x power IEC 60320 C13

Battery

Lead Acid - 9 Ah

Batteries Qty

Networking

RS-232, USB, RJ-45

Included Accessories

Cable locking system, network management card

Colour

Black, silver

Dimensions (WxDxH)

43.8 cm x 50.9 cm x 4.32 cm

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

3553340710513

General

Device Type

UPS - rack-mountable

Height (Rack Units)

Rack Size

19"

Colour

Black, silver

Power Device

UPS Technology

Line interactive

Input Voltage

AC 200/208/220/230/240 V

Input Voltage Range

AC 160 - 294 V

Input Voltage Range (Adjustable)

AC 150 - 294 V

Frequency Provided

50/60 Hz

Input Wiring

1-phase

Frequency Required

47 - 70 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

6 x power IEC 60320 C13

Output Voltage

AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz

Power Capacity

920 Watt / 1150 VA

Output Waveform

Sinewave

Efficiency

98.2%

Battery

Quantity

Technology

Lead Acid

Voltage Provided

6 V

Capacity

9 Ah

Features

Maintenance free

Networking

Remote Management Interface

RS-232, USB, RJ-45

Expansion / Connectivity

Interfaces

1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) ¦ 1 x remote power (on/off) - mini terminal block ¦ Dry contact

Expansion Slots

1 (total) / 0 (free) x Communication slot

Miscellaneous

Included Accessories

Cable locking system, network management card

Cables Included

USB cable - external ¦ 2 x power cable (IEC) - external ¦ AC input cable (BS 1363) - external

Rack Mounting Kit

Included

Features

LCD display, user-replaceable batteries, Advance Battery Management (ABM), deep discharge protection, automatic self-test, automatic shut down, pure sinewave output

Compliant Standards

LVD, CB, EMC, RoHS, WEEE, IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UL 1778, CAN/CSA-C22.2, UKCA, CM, UKR, KCC, cTUVus, BIS

Manufacturer Warranty

Service & Support

Limited warranty - electronics - 3 years ¦ Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 90% (non-condensing)

Sound Emission

35 dB

Dimensions & Weight

Width

43.8 cm

Depth

50.9 cm

Height

4.32 cm

Weight

14.54 kg
