Startech 7-Port Managed USB Hub with 7x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB 3.0

Images for illustrative purposes

Startech 7-Port Managed USB Hub with 7x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB 3.0

View all STARTECH.COM Hubs - Visit the STARTECH.COM Store (5G7AINDRM-USB-A-HUB) - (ECE9749317)

Startech 7-Port Managed USB Hub with 7x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB 3.0/3.1/3.2 Gen 1 5Gbps - Hub - 6 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 - desktop, DIN rail mountable, wall-mo

Managed USB Hub
Rugged and Reliable
Power Flexibility

FREE Delivery on orders over €250

5 Available to Ship
Order within 18Hrs 47Mins for: Delivery (24 Sep or 25 Sep)

€222.41 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

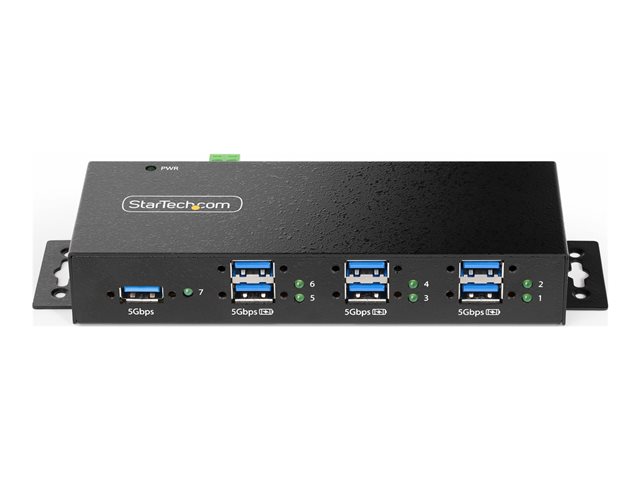

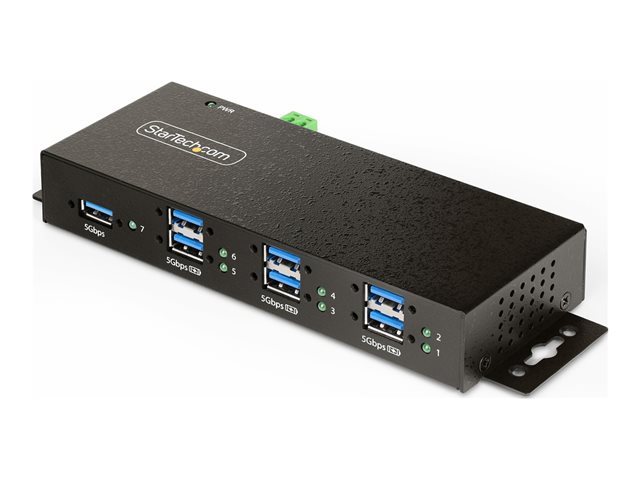

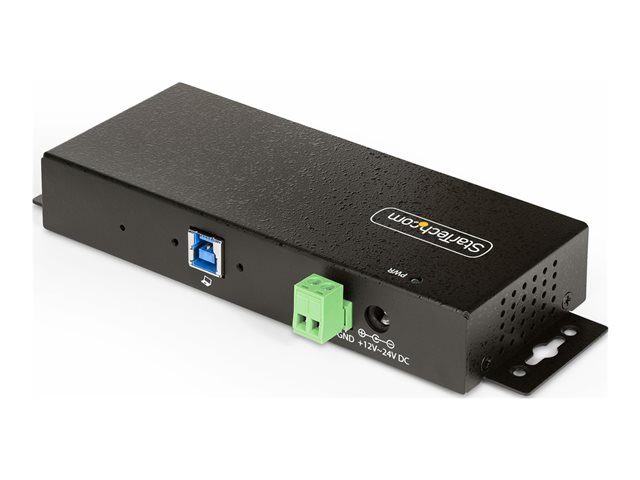

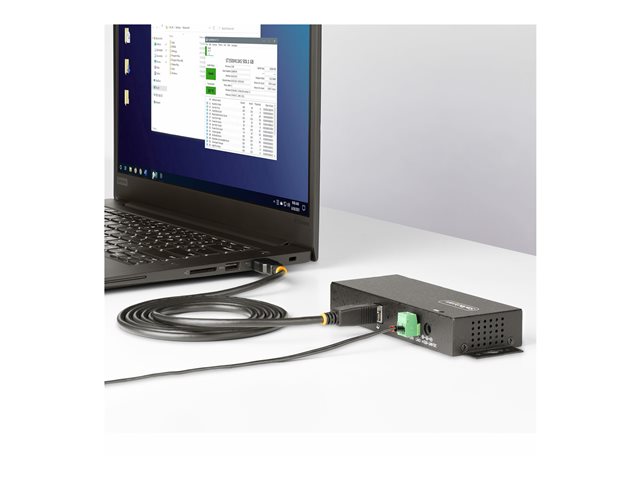

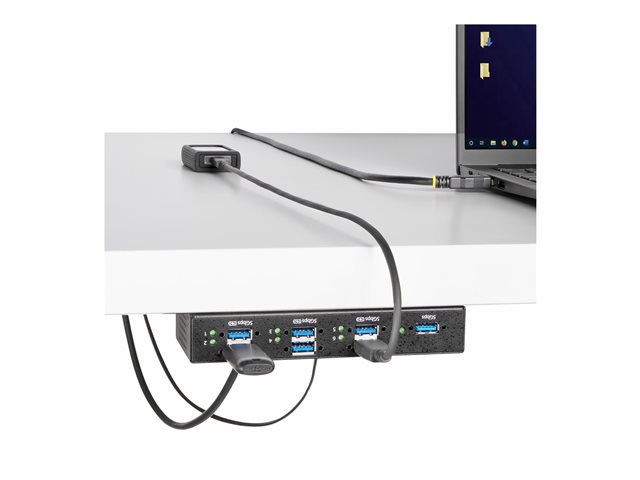

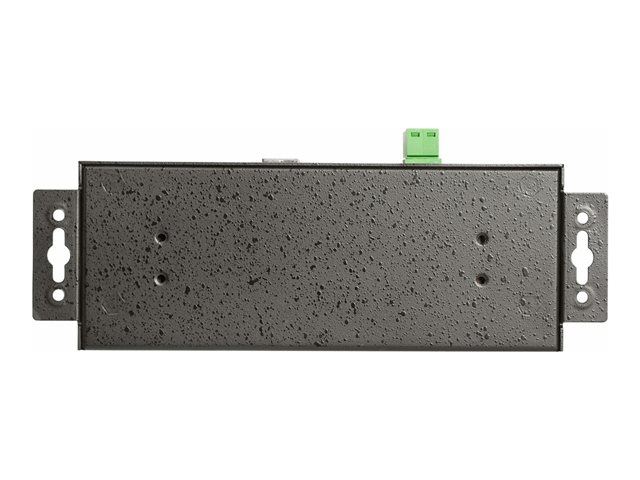

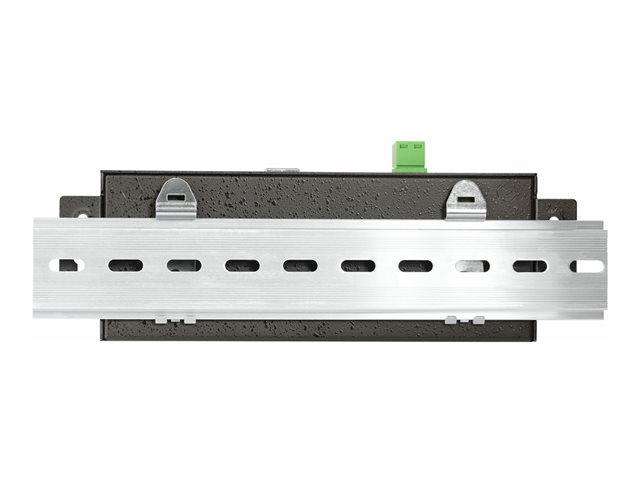

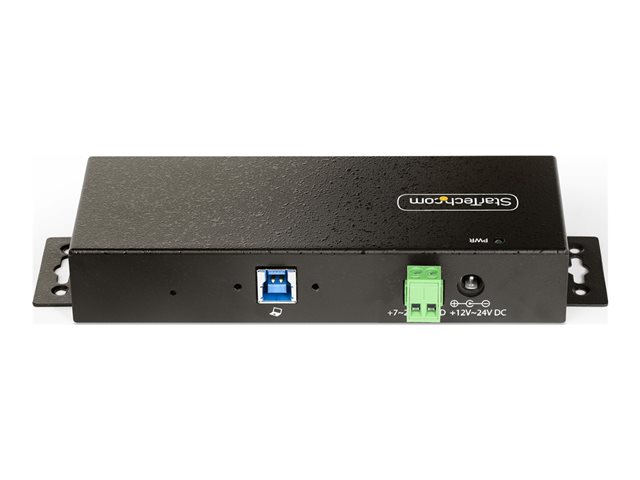

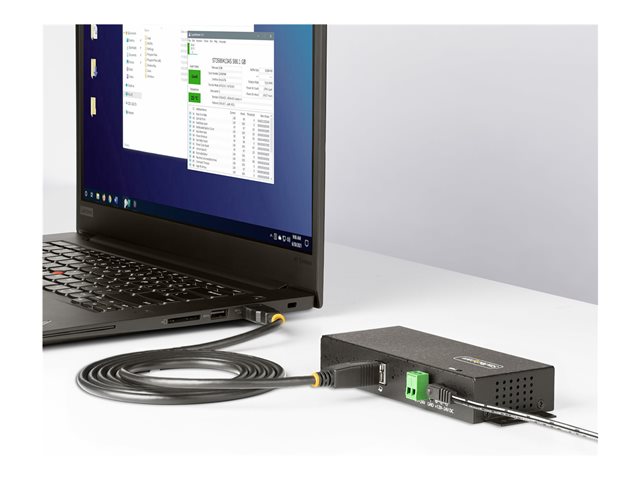

This 7-port Managed Industrial USB 3.2 Gen 1 (5Gbps) Hub includes software for seamless remote management. The USB Hub Administrator Software installs on the computer to which the USB Hub is connected, enabling users to enable or disable individual or all ports / Reboot the USB Hub / Restrict software access with a password / Save port states / Utilize CLI commands for custom application development. The USB Hub has a metal enclosure to shield it from sudden impacts. It protects against ESD with 15kV/8kV air/contact ESD protection. The USB Hub supports a +7 to 24 voltage range and can be powered by a terminal block and/or concentric barrel connector. With an external power source connected the downstream USB ports deliver up to 7.5W of power. The USB Hub features built-in mounting brackets for installation on walls or desks. Din rail mounting brackets are included.

Specification Summary

Product Description

Startech 7-Port Managed USB Hub with 7x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB 3.0/3.1/3.2 Gen 1 5Gbps - hub - 7 ports - TAA Compliant

Device Type

Hub - 7 ports

Subtype

USB

Ports

6 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1

Features

Surge protection, metal housing, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), managed, fast charging support, CLI management, lockable ports

Compliant Standards

USB 1.1, USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 2, USB 3.2 Gen 1, Battery Charging 1.2

Dimensions (WxDxH)

11.4 cm x 6.7 cm x 2.6 cm

Weight

200 g

Colour

Black

TAA Compliant

Yes

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030898195

General

Device Type

Hub - 7 ports

Enclosure Type

Desktop, DIN rail mountable, wall-mountable

Subtype

USB

Ports

6 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1

Features

Surge protection, metal housing, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), managed, fast charging support, CLI management, lockable ports

Compliant Standards

USB 1.1, USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 2, USB 3.2 Gen 1, Battery Charging 1.2

Status Indicators

Port status, power

Expansion / Connectivity

Interfaces

6 x USB 3.2 Gen 2 Type A Battery Charging 1.2 ¦ 1 x USB 3.2 Gen 1 Type A ¦ 1 x USB 3.2 Gen 1 Type B host ¦ 1 x terminal block

Miscellaneous

Colour

Black

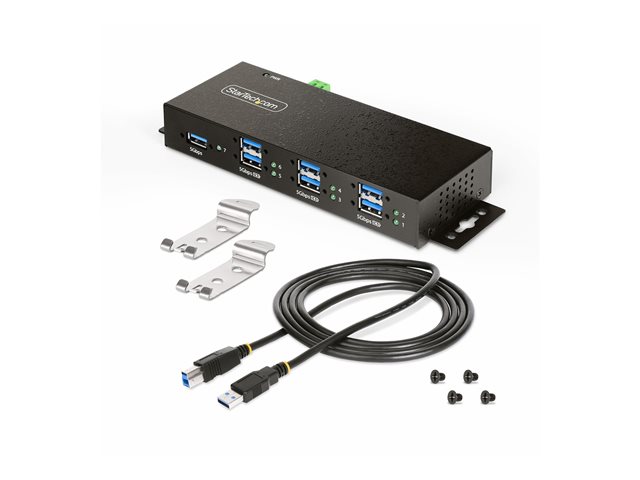

Included Accessories

DIN-rail mounting kit, terminal block connector
