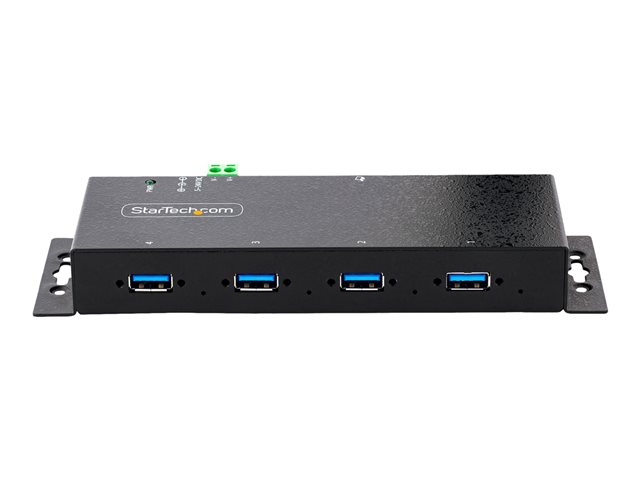

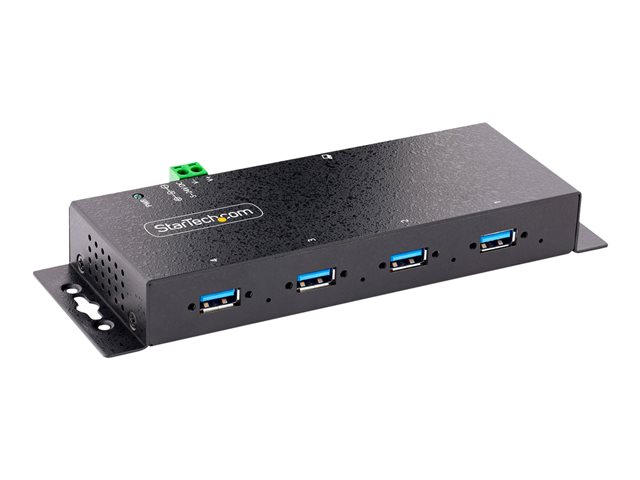

Startech 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub w/15kV Air/8kV Contact ESD and Surge Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expansion Hub with Locking Ports - Metal Construction (5G4AINDNP-USB-A-HUB) - hub - industrial - 4 ports

Functional in Harsh Environments
Mount to a Wall, Desk or DIN-Rail
Connect and Charge USB Devices
Wide Device Compatibility

FREE Delivery on orders over €250

7 Available to Ship
Order within 15Hrs 19Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€120.36~~

€99.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Increase USB scalability in industrial environments, product and repair labs, conference rooms or office workstations, using this 4-Port Industrial USB Hub.

Features Summary

Functional in Harsh Environments

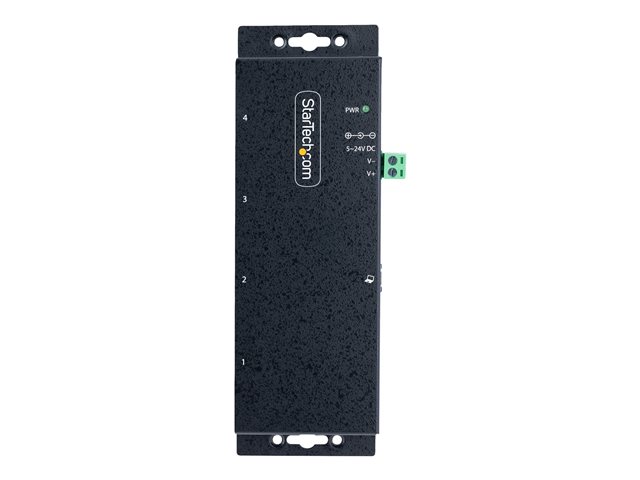

This industrial USB hub delivers reliable performance in harsh environments with its heavy-duty, metal housing. It supports 5-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input options. Perfect for factory environments, the rugged hub features ESD/surge protection to each USB port, which aids in preventing damage to any connected devices.

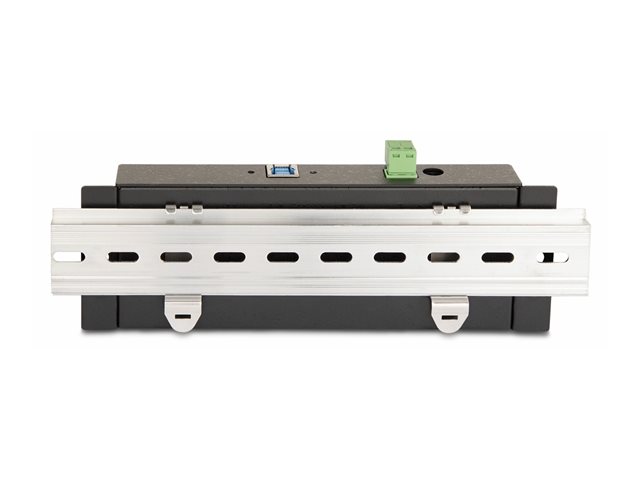

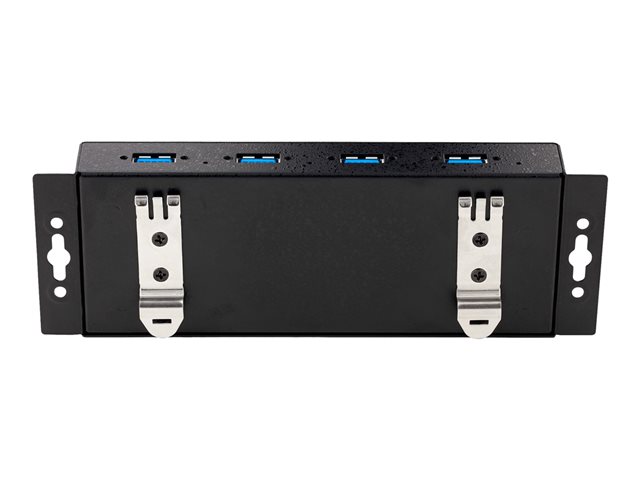

Mount to a Wall, Desk or DIN-Rail

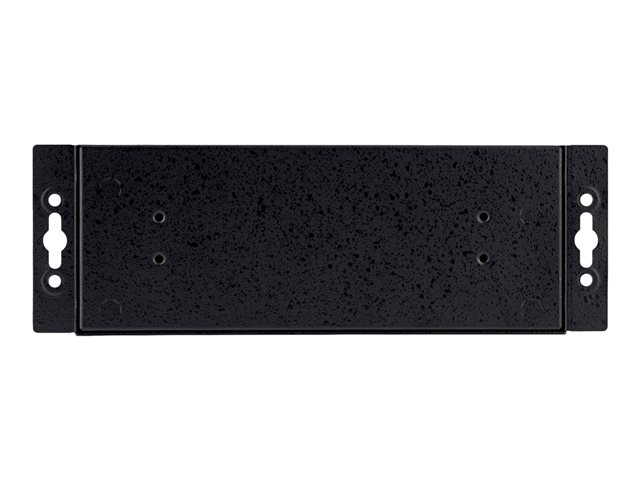

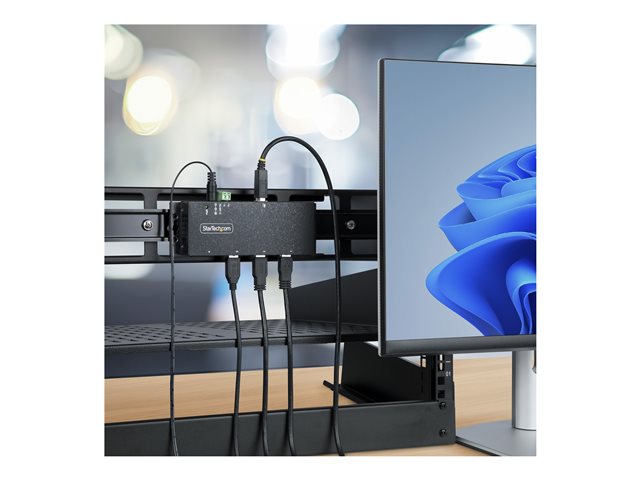

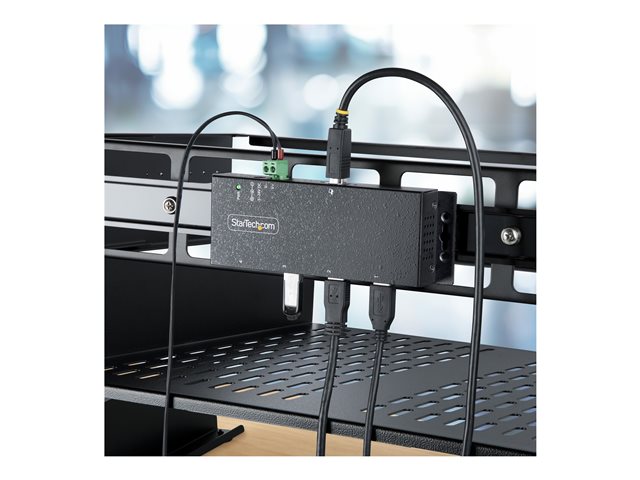

Install the hub where it's best suited for your application. Securely mount the hub to a variety of surfaces, including a wall, desk, or rack, using the built-in mounting brackets and included hardware.
Connect and Charge USB Devices

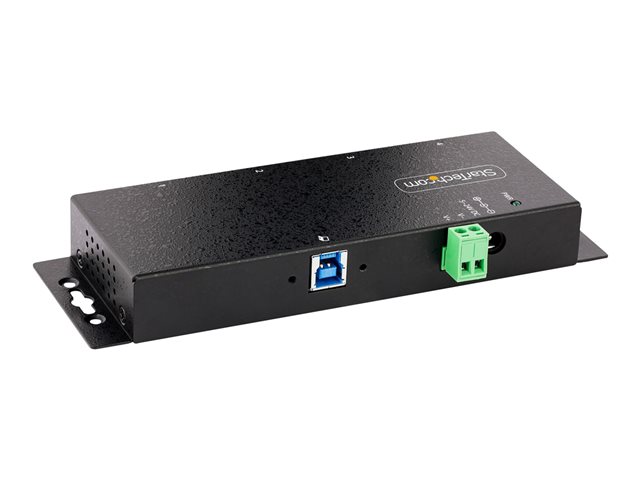

Designed for a high volume of connections, this robust USB 3.0 hub offers four connection ports, for connecting more USB devices/peripherals. The industrial USB hub supports DC and terminal block power inputs 5 to 24V DC that provide compatibility and flexibility in different scenarios such as product and repair labs, conference rooms, or office workstations. StarTech.com offers external power adapters, ITB20D3250 and SVA12M5NA, sold separately. With the optional power adapter, the hub supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 30W total, so you can charge your mobile devices faster than traditional USB ports allow.
Wide Device Compatibility
The hub is OS independent ensuring support on a wide range of platforms including Windows, macOS and Linux. 5G4AINDNP-USB-A-HUB is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual technical support. StarTech.com has been the IT professionals' choice for over 30 years.

Specification Summary

Product Description

Device Type

Hub - 4 ports

Subtype

USB

Ports

4 x USB 3.2 Gen 1

Features

Screw lock, rugged, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), steel housing, integrated mounting bracket, DFP

Compliant Standards

USB 3.2 Gen 1, Battery Charging 1.2

Dimensions (WxDxH)

17.8 cm x 5.9 cm x 2.3 cm

Weight

280 g

Colour

Black

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030898010

General

Device Type

Hub - 4 ports

Enclosure Type

Desktop, DIN rail mountable, wall-mountable

Subtype

USB

Ports

4 x USB 3.2 Gen 1

Features

Screw lock, rugged, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), steel housing, integrated mounting bracket, DFP

Compliant Standards

USB 3.2 Gen 1, Battery Charging 1.2

Processor

X VIA Labs VL817-Q7

Status Indicators

Port status, power

Expansion / Connectivity

Interfaces

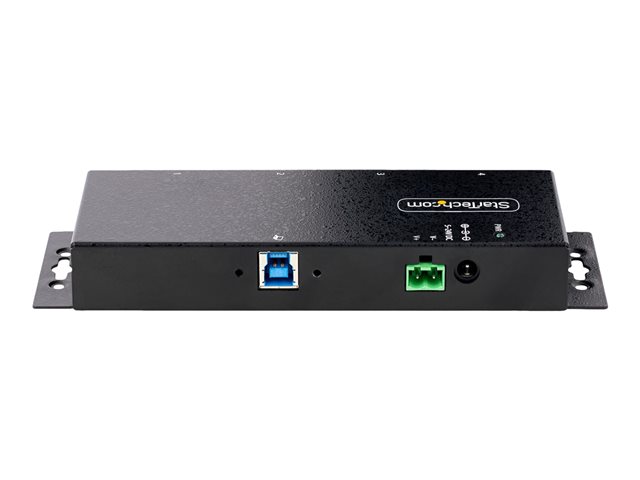

4 x USB 3.2 Gen 1 Type A ¦ 1 x USB 3.2 Gen 1 Type B host ¦ 1 x terminal block

Miscellaneous

Colour

Black

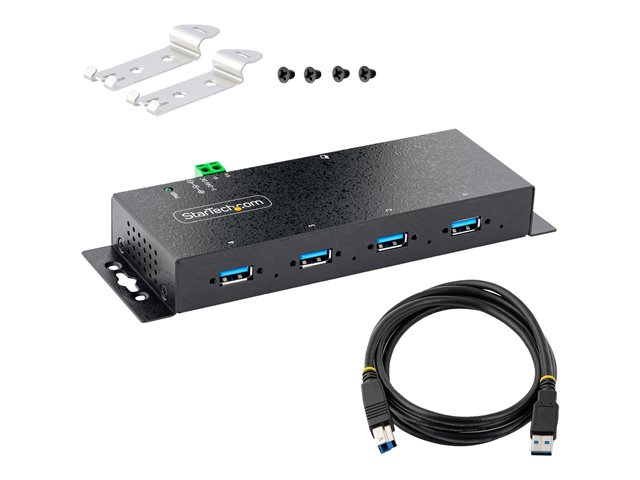

Included Accessories

DIN-rail mounting kit, terminal block connector

Cables Included

1 x USB-B to USB-A screw-lock cable - 1.8 m

MTBF

243,753 hours

Compliant Standards

WEEE, RCM, USB Battery Charging Specification Rev. 1.2

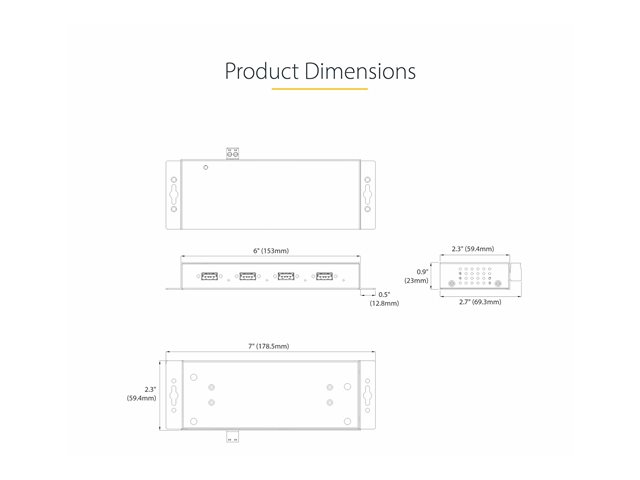

Dimensions & Weight

Width

17.8 cm

Depth

5.9 cm

Height

2.3 cm

Weight

280 g

Dimensions & Weight (Shipping)

Shipping Width

21.3 cm

Shipping Depth

14.9 cm

Shipping Height

5.1 cm

Shipping Weight

500 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years ¦ Technical support - assistance - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

60 °C

Humidity Range Operating

5 - 95% RH

Min Storage Temperature

-20 °C

Max Storage Temperature

75 °C
