Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Reduce costs by using existing network cable to provide both power and data

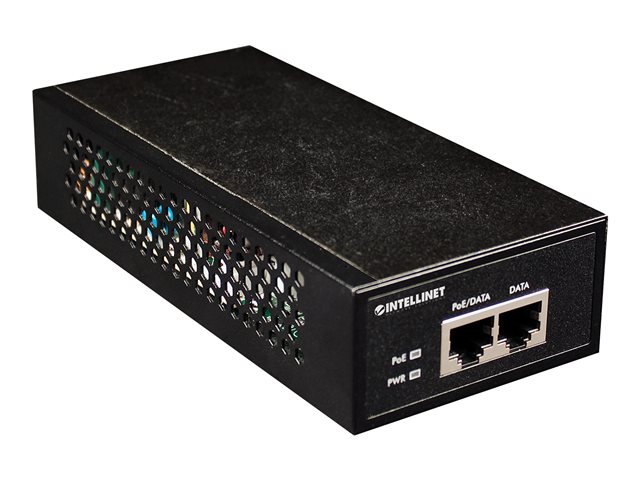

The Intellinet Network Solutions 1-Port Gigabit High-Power PoE+ Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The PoE Injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts. That's enough for even power-hungry PoE devices.

Reduce Wiring Costs

No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.

Protect Your Equipment

Now that you are running DC power to your networked equipment through the Cat5e/6 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads and high voltages.


Specification Summary

Product Description
Intellinet Gigabit High-Power PoE+ Injector, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) (UK Power Cord) - PoE injector - 30 Watt
Device Type
PoE injector - external
Power Over Ethernet (PoE)
PoE+
Weight
790 g
Localisation
United Kingdom

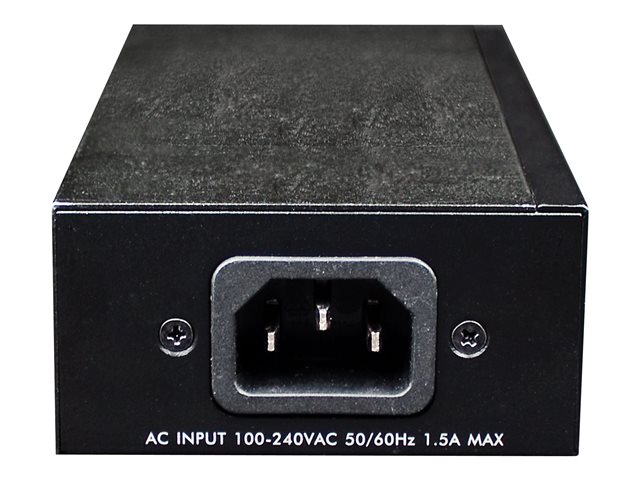

Input Voltage
AC 100-240 V
Power Capacity
30 Watt
Input Connectors
1
Output connectors
1 x RJ-45
Included Accessories
Mounting kit
Dimensions (WxDxH)
7.2 cm x 15.4 cm x 3.5 cm
Manufacturer Warranty
3-year warranty

Specifications

EAN / GTIN:
0766623560566
General
Device Type
PoE injector - external
Power Over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Localisation
United Kingdom
Power Device
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Input Connectors
1
Power Consumption Operational
42 Watt
Power Output Connectors Details
1 x RJ-45
Power Capacity
30 Watt
Expansion / Connectivity
Interfaces
1 x Gigabit LAN - RJ-45
Miscellaneous
Included Accessories
Mounting kit

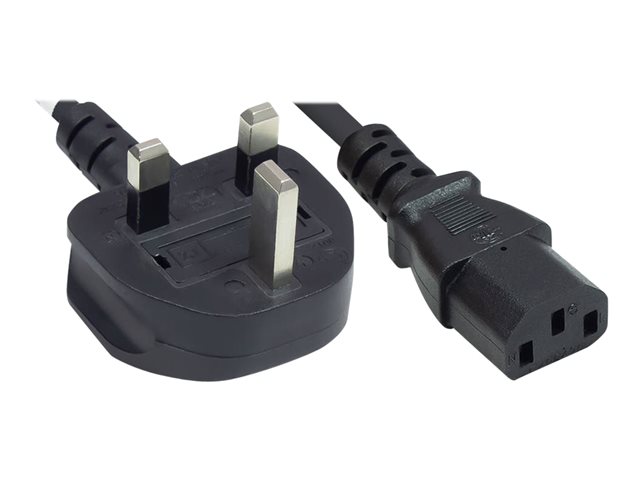

Cables Included
Power cable - external
Features
LED indicators, over voltage protection, overload protection, fanless, short-circuit protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, FCC Class B certified, Directive 89/336/EEC
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
Dimensions & Weight
Width
7.2 cm
Depth
15.4 cm
Height
3.5 cm
Weight
790 g
