Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Reduce costs by using existing Cat5 cable to provide both power and data

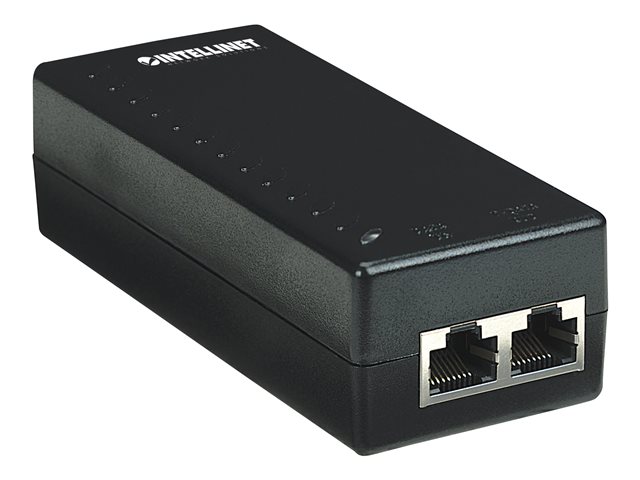

The Power over Ethernet Injector from Intellinet Network Solutions allows you to connect your IEEE 802.3af-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af powered device (PD) to a switch.

Reduce Wiring Costs

No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.

Preserve Existing Investments

Does your existing LAN switch not support the new IEEE 802.3af PoE standard? Well, don't let that stop you from realizing the benefits of delivering DC power over the existing Cat5 Ethernet cabling. Use the Model 503389 PoE Injector until you are able to upgrade your LAN switch to a model that supports the IEEE 802.3af PoE standard.

Protect Your Equipment

Now that you are running DC power to your networked equipment through the Cat5 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads (over 450 mA) and high voltages (voltage exceeding 52 V).


Specification Summary

Product Description
Intellinet Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant (UK Power Cord) - PoE injector - 15.4 Watt
Device Type
PoE injector - external
Power Over Ethernet (PoE)
PoE
Weight
140 g
Localisation
United Kingdom
Input Voltage
AC 100-240 V
Output Voltage
48 V
Power Capacity
15.4 Watt
Input Connectors
1
Output connectors
1 x RJ-45
Dimensions (WxDxH)
5 cm x 12 cm x 3.5 cm
Manufacturer Warranty
3-year warranty

Specifications

EAN / GTIN:
0766623524179
General
Device Type
PoE injector - external
Power Over Ethernet (PoE)
PoE (IEEE 802.3af)
Localisation
United Kingdom
Power Device
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Input Connectors
1
Power Consumption Operational
19 Watt
Power Output Connectors Details
1 x RJ-45
Output Voltage
48 V
Power Capacity
15.4 Watt
Expansion / Connectivity
Interfaces
1 x LAN - RJ-45
Miscellaneous
Cables Included

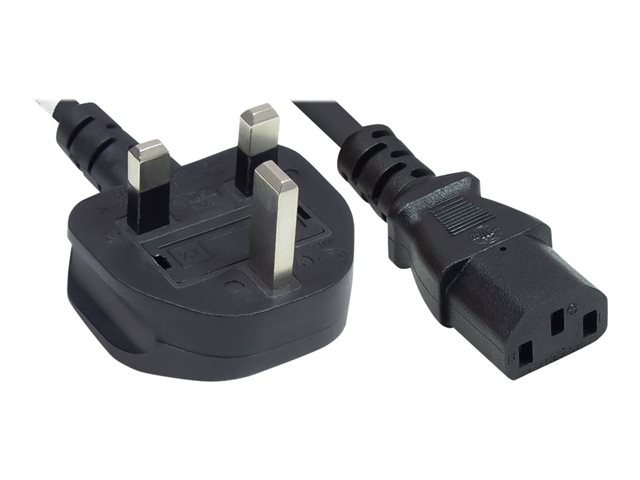

Power cable - external
Features
LED indicators, over voltage protection, overload protection, fanless, short-circuit protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, FCC Class B certified, Directive 89/336/EEC
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
60 °C
Humidity Range Operating
10 - 90% (non-condensing)
Dimensions & Weight
Width
5 cm
Depth
12 cm
Height
3.5 cm
Weight
140 g
