Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.
Quectel EM160R-GL is an LTE-A Cat 16 module in an M.2 form factor which is designed to meet the 3GPP Release 14 specification. It supports maximum downlink rates of 1 Gbps and uplink rates of 150 Mbps.
EM160R-GL is designed for the global market and covers nearly all the mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo), while integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android and optional built-in eSIM) allow the module to support a wide range of applications such as industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.
Specification Summary
Product Description

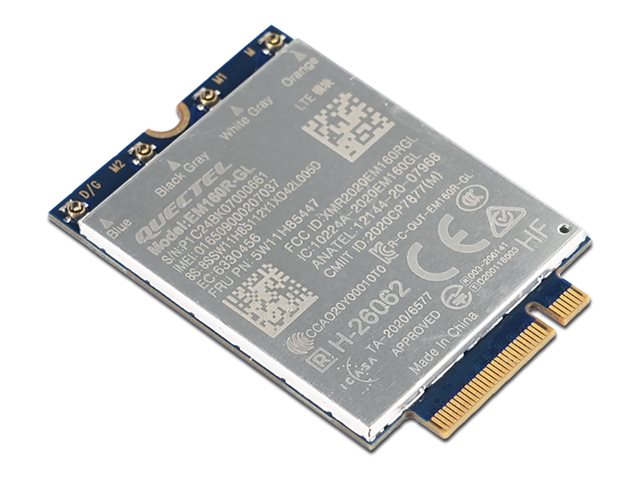

Quectel EM160R-GL - wireless cellular modem - 4G LTE Advanced
Device Type
Wireless cellular modem - M.2 Card
Mobile Communication Protocol
FDD LTE, TDD LTE, WCDMA, LTE CAT16
System Requirements
Windows 10, Windows 11
Dimensions (WxDxH)
4.2 cm x 3 cm x 0.23 cm
Manufacturer Warranty
1-year warranty
Designed For
P/N: 21KDSC4100
