Intel S4610 Mainstream - SSD - 240 GB - SATA 6Gb/s

Images Manuals

Images for illustrative purposes

Intel S4610 Mainstream

Name: Intel S4610 Mainstream
Brand: LENOVO
SKU: ECE4911987
Price: 1209.75 EUR
Availability: OutOfStock

View all LENOVO Solid State Drives - Visit the LENOVO Store (4XB7A13633) - (ECE4911987)

Model: Intel

240 GB - Solid state drive - encrypted - hot-swap - 2.5" - SATA 6Gb/s - 256-bit AES - for ThinkSystem SD530, SN850, SR530, SR550, SR570, SR590, SR650, SR850, SR860, SR950, ST550

FREE Delivery on orders over €250

**Note: All Warranties/Dead On Arrival issues for this item are handled by the manufacturer

0 Available to Ship
Restock 21-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€1209.75 Incl Vat

Bulk Pricing from €1173.46

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Intel S4610 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. Compared with the Intel S4600 series, these drives offer improved performance and lower latency.

The Intel SSD S4610 drives with 3 full drives writes per day (DWD) are an excellent choice as cache in transactional application and high-speed storage for enterprise databases.

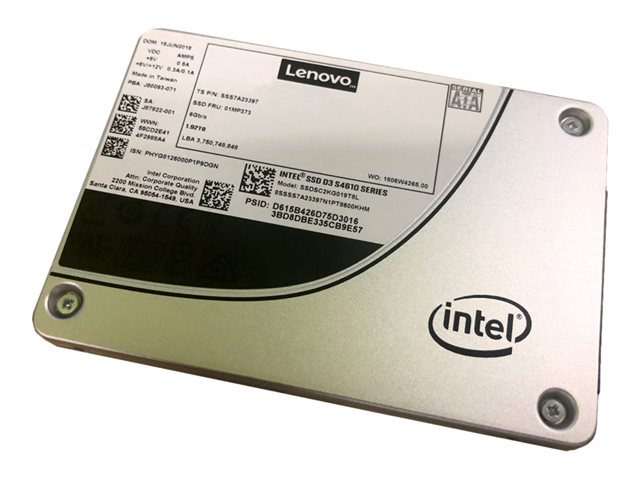

The Intel S4610 Enterprise Mainstream SATA solid-state drive is shown in the following figure.

Specification Summary

Product Description

Intel S4610 Mainstream - SSD - 240 GB - SATA 6Gb/s

Type

Solid state drive - hot-swap

Capacity

240 GB

Hardware Encryption

Yes

Encryption Algorithm

256-bit AES

NAND Flash Memory Type

3D triple-level cell (TLC)

Form Factor

2.5"

Interface

SATA 6Gb/s

Data Transfer Rate

600 MBps

Features

High Endurance Technology (HET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, 3D NAND Technology, S.M.A.R.T.

Weight

63 g

Manufacturer Warranty

1-year warranty

Designed For

ThinkAgile VX 1SE Certified Node 7Z58 (2.5"); ThinkAgile VX1320 Appliance 7Z58 (2.5"); VX3330 Appliance 7Z62 (2.5"); VX3331 7Z62 (2.5"); VX3530-G Appliance 7Z63 (2.5"); VX3575-G Integrated System 7D43 (2.5"); VX5575 Integrated System 7D43 (2.5"); VX7530 Appliance 7Z63 (2.5"); VX7531 Certified Node 7Z63 (2.5"); VX7575 Integrated System 7D43 (2.5"); VX7576 Certified Node 7D43 (2.5"); ThinkSystem SD530 (2.5"); SN550 (2.5"); SN850 (2.5"); SR250 7Y51 (2.5"); SR530 (2.5"); SR550 (2.5"); SR570 (2.5"); SR590 (2.5"); SR630; SR630 V2 7Z71; SR650; SR650 V2 7D15, 7Z73; SR665 7D2V, 7D2W; SR670 7Y37; SR670 V2 7Z23; SR850; SR850 V2 7D32; SR860; SR860 V2 7Z60; SR950; ST250 7Y45; ST550; ST650 V2 7Z74, 7Z75

Specifications

EAN / GTIN:

889488475315

General

Device Type

Solid state drive - hot-swap

Capacity

240 GB

Hardware Encryption

Yes

Encryption Algorithm

256-bit AES

NAND Flash Memory Type

3D triple-level cell (TLC)

Form Factor

2.5"

Interface

SATA 6Gb/s

Features

High Endurance Technology (HET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, 3D NAND Technology, S.M.A.R.T.

Weight

63 g

Performance

Drive Writes Per Day (DWPD)

3.2

SSD Endurance

1.4 PB

Drive Transfer Rate

600 MBps (external)

Internal Data Rate

560 MBps (read) / 340 MBps (write)

4KB Random Read

86000 IOPS

4KB Random Write

29000 IOPS

Average Latency

36 µs

Reliability

MTBF

2,000,000 hours

Non-Recoverable Errors

1 per 10^17

Expansion & Connectivity

Interfaces

1 x SATA 6 Gb/s

Compatible Bay

2.5"

Power

Power Consumption

2.4 watt (typical)

Miscellaneous

Included Accessories

Hard drive tray

Compliant Standards

FCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN60950-1 (2nd Edition), LVD 2006/95/EC, C-Tick, AS/NZS 3584, BSMI CNS 13438, KCC Article 11.1, RoHS 2011/65/EU, WEEE 2002/96/EC

Manufacturer Warranty

Service & Support

Limited warranty - replacement - 1 year

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Humidity Range Operating

5 - 95% (non-condensing)

Shock Tolerance (operating)

1000 g @ 0.5 ms

Vibration Tolerance (operating)

2.17 g @ 5-700 Hz

Vibration Tolerance (non-operating)

3.13 g @ 5-800 Hz

Compatibility Information

Designed For

Lenovo ThinkAgile VX 1SE Certified Node 7Z58 (2.5") ¦ Lenovo ThinkAgile VX1320 Appliance 7Z58 (2.5") ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5") ¦ Lenovo ThinkAgile VX3331 7Z62 (2.5") ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 (2.5") ¦ Lenovo ThinkSystem SD530 (2.5") ¦ Lenovo ThinkSystem SN550 (2.5") ¦ Lenovo ThinkSystem SN850 (2.5") ¦ Lenovo ThinkSystem SR250 7Y51 (2.5") ¦ Lenovo ThinkSystem SR530 (2.5") ¦ Lenovo ThinkSystem SR550 (2.5") ¦ Lenovo ThinkSystem SR570 (2.5") ¦ Lenovo ThinkSystem SR590 (2.5") ¦ Lenovo ThinkSystem SR630 (2.5") ¦ Lenovo ThinkSystem SR630 V2 7Z71 (2.5") ¦ Lenovo ThinkSystem SR650 (2.5") ¦ Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73 (2.5") ¦ Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5") ¦ Lenovo ThinkSystem SR670 7Y37 (2.5") ¦ Lenovo ThinkSystem SR670 V2 7Z23 (2.5") ¦ Lenovo ThinkSystem SR850 (2.5") ¦ Lenovo ThinkSystem SR850 V2 7D32 (2.5") ¦ Lenovo ThinkSystem SR860 (2.5") ¦ Lenovo ThinkSystem SR860 V2 7Z60 (2.5") ¦ Lenovo ThinkSystem SR950 (2.5") ¦ Lenovo ThinkSystem ST250 7Y45 (2.5") ¦ Lenovo ThinkSystem ST550 (2.5") ¦ Lenovo ThinkSystem ST650 V2 7Z74 (2.5"), 7Z75 (2.5")
