Startech 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0

Images for illustrative purposes

Startech 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0

View all STARTECH.COM Expansion Ports - Visit the STARTECH.COM Store (4PCIE-PCIE-ENCLOSURE) - (ECE7811842)

Startech 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots - System bus extender

Expansion chassis for PCIe cards
Rugged construction
Hassle free upgrades
Compatibility
The IT pro's choice

FREE Delivery on orders over €250

0 Available to Ship
Restock 22-Jun-2026 Estimated, Out of Stock Prices are Estimated.

€473.25 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The robust expansion chassis supports 4 PCIe x1 add-on cards and features up to 10Gbps of total bandwidth. The expansion chassis connects to the host using a proprietary USB-C PCIe x2 adapter card and a locking USB Type-C cable. Take advantage of features such as Wake-on-LAN (WoL), support for PCI Express Advanced Error Reporting (AER), backwards compatibility, and multiple power capabilities.

Features Summary

Expansion chassis for PCIe cards

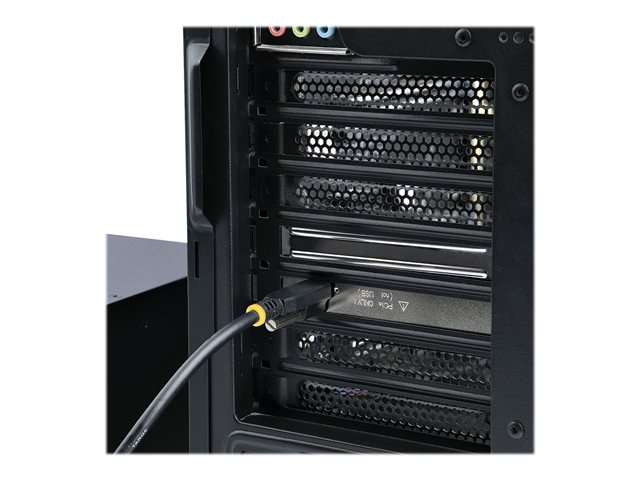

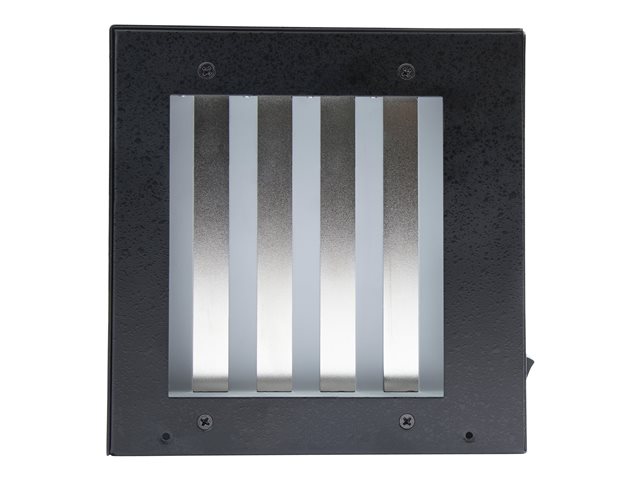

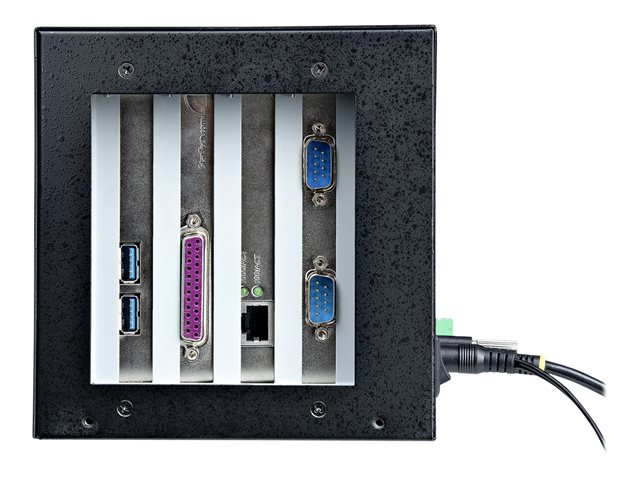

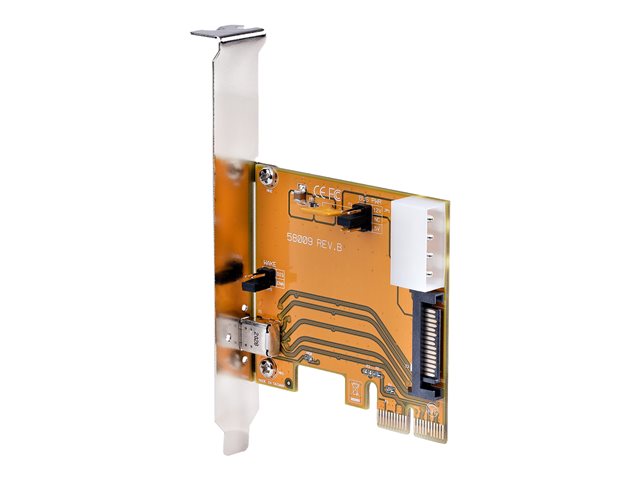

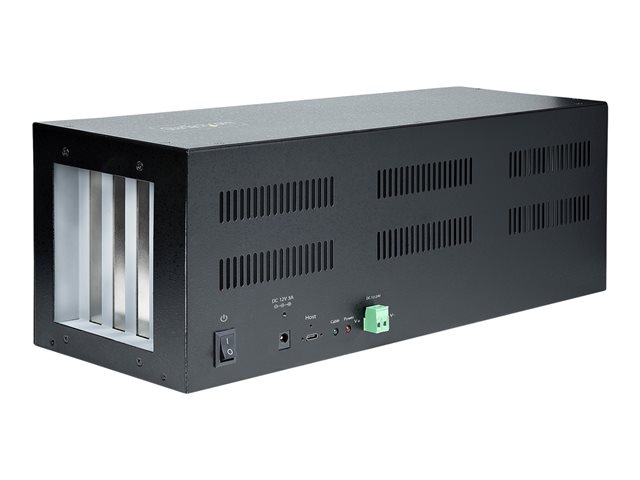

Increase the PCI-e slot count of a desktop computer or server; Add four external PCIe x1 slots; PCI Express 2.0 x2 proprietary USB-C Host Card with locking port; 5.9ft (1.8m) USB-C locking cable included.
Rugged construction

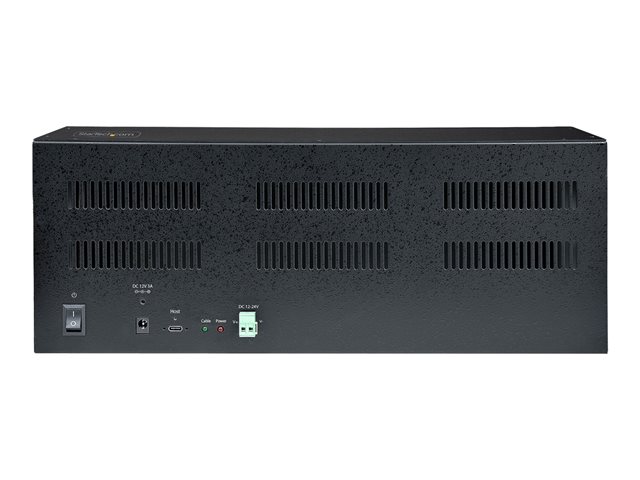

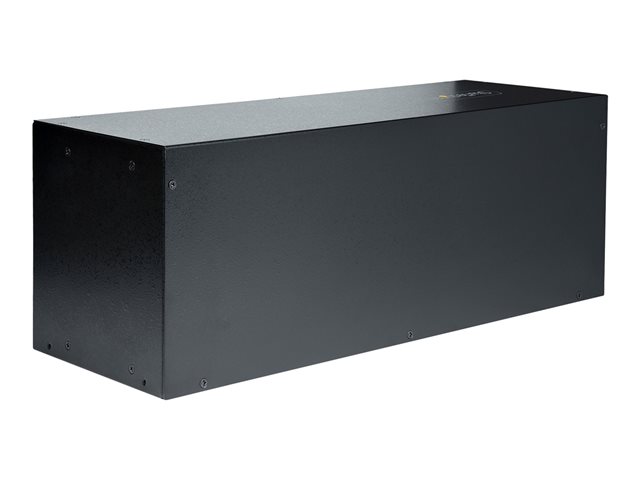

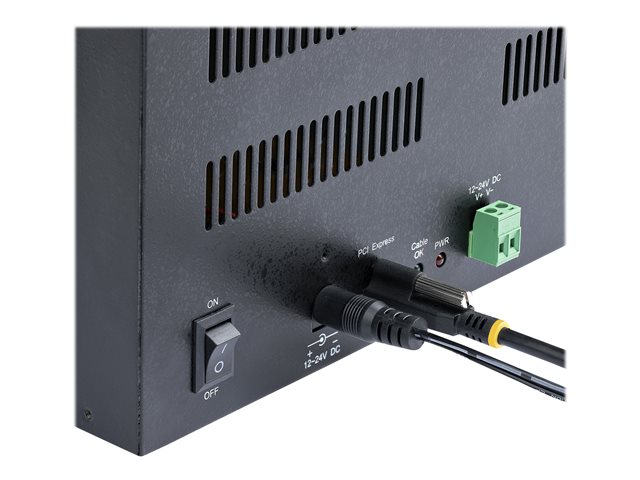

PCI Express expansion box is built with SECC steel to withstand harsh conditions and up to 140°F (60°C); Vented chassis for cooling; Quiet operation; Power adapter (12V 3A) included, terminal block port (12-24 VDC) available.
Hassle free upgrades

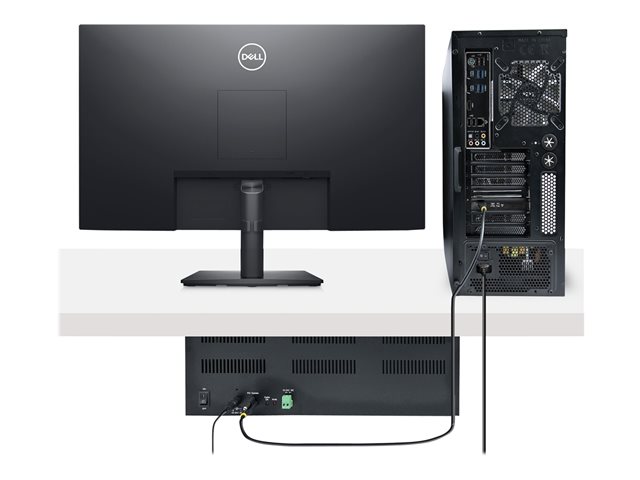

Connect add-on cards to a host system with limited expansion slots; Implement fast deployments and reduce the cost and downtime required to configure an existing or new host system.
Compatibility
This PCIe expansion chassis is OS independent and requires no additional software; Windows, macOS, and Linux are supported; Installed add-on card may require additional drivers and specific supported OS; Not meant to be used with GPUs.
The IT pro's choice
Designed and built for IT Professionals, this external PCIe expansion chassis for desktop is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.

Specification Summary

Product Description

Startech 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots - system bus extender

Product Type

System bus extender

Dimensions (WxDxH)

41.1 cm x 13.8 cm x 14.3 cm

Weight

2.3 kg

Colour

Black

Power

Power adapter AC 100-240 V

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030894630

General

Product Type

System bus extender

Width

41.1 cm

Depth

13.8 cm

Height

14.3 cm

Weight

2.3 kg

Enclosure Colour

Black

Expansion / Connectivity

Expansion Slots

4 (total) / 4 (free) x PCI Express 2.0 x1

Interfaces

1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x power - terminal block

Compatible Slots

1 x PCI Express 2.0 x2

Miscellaneous

Cables Included

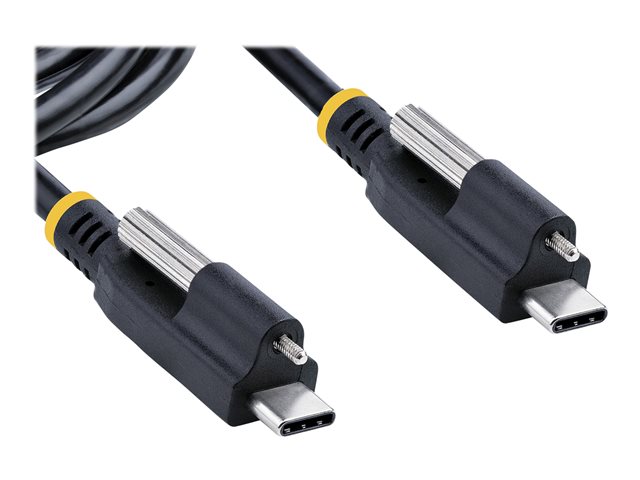

1 x USB-C screw-lock cable - external - 1.8 m

Included Accessories

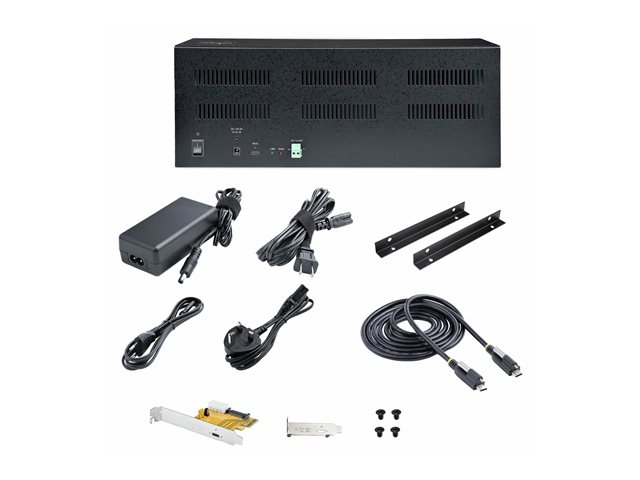

Screws, low profile bracket, 2 x mounting brackets, PCIe x2 to USB-C host card, terminal block connector

Features

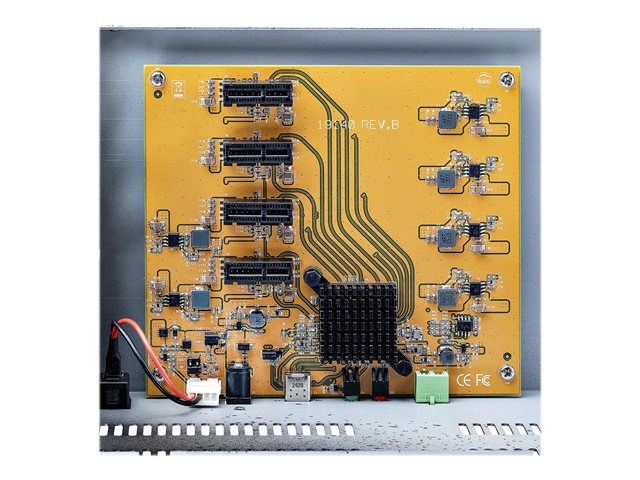

Wake on LAN, vented, 2 LED indicators, full-length, on/off power switch, up to 10Gbps data transfer, Asmedia ASM1806 chipset, PCI Express Advanced Error Reporting (AER), EndPoint Cyclic Redundancy Check (ECRC)

Compliant Standards

WEEE, RCM, SECC

Power

Power Device

Power adapter

Voltage Required

AC 100-240 V

System Requirements

OS Required

Apple MacOS, Linux, Microsoft Windows

Manufacturer Warranty

Service & Support
