Range/Series Overview

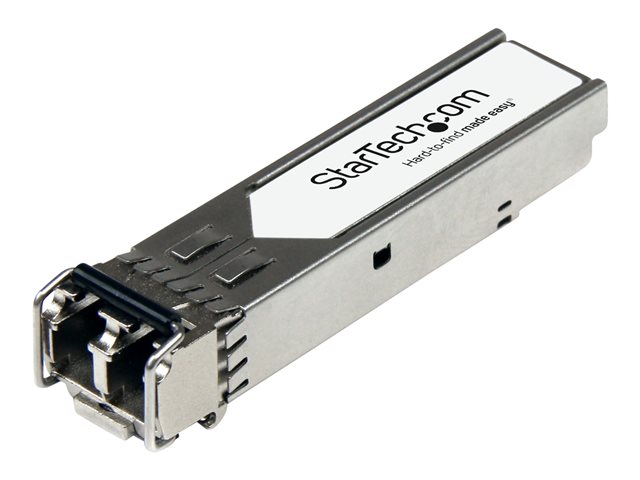

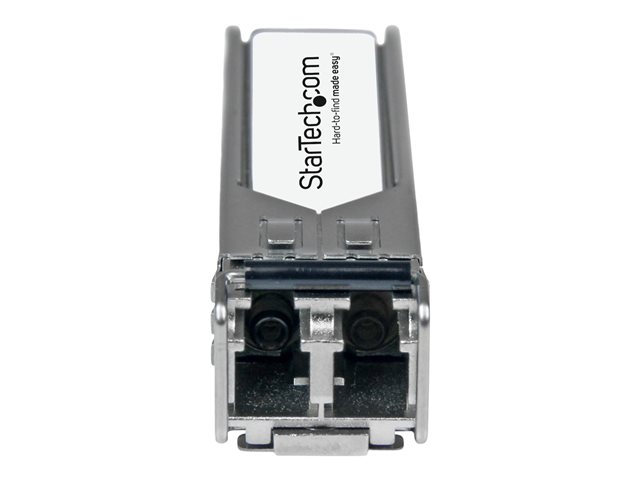

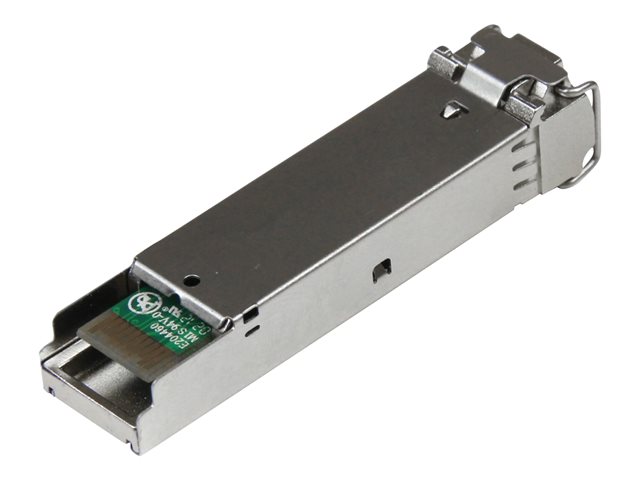

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty. The 455886-B21-ST is a HP 455886-B21 compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 1,386,624,697 hours
Power Consumption: < 1.3W
Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
Features Summary
- Efficient connectivity
This SFP+ transceiver module supports Ethernet 10GBase-LR, providing high-speed connectivity for performance-driven networks. - Robust design
With a form factor of a plug-in module and LC single-mode connectors, this device offers seamless integration into existing network systems. - Long-distance capability
Capable of transmitting data over a maximum distance of 10 km, ensuring effective communication in larger infrastructures. - Advanced monitoring features
Incorporating Digital Diagnostics Monitoring (DDM), this module allows continuous performance monitoring for better network management. - Reliable performance
With an MTBF of 1,386,624,697 hours, this module is designed for durability and longevity in demanding applications.
Specification Summary
Product Description
Startech HPE 455886-B21 Compatible SFP+ Module, 10GBASE-LR, 10GbE Single Mode (SMF) Fiber Optic Transceiver, LC 10km, 1310nm DDM, HPE BladeSystem 562SFP+ 560SFP+, Mini GBIC Transceiver - Lifetime Warranty (455886-B21-ST) - SFP+ transceiver module - 10GbE
Device Type
SFP+ transceiver module - LC single-mode
Form Factor
Plug-in module
Data Transfer Rate
10 Gbps
Optical Wave Length
1310 nm
Max Transfer Distance
10 km
OEM Manufacturer Equivalent Part Number
HP 455886-B21
Dimensions (WxDxH)
5.84 cm x 1.39 cm x 1.37 cm
Manufacturer Warranty
Limited lifetime warranty
Designed For
HPE SimpliVity 380 Gen10 Node, 380 Gen9 Node; Virtual Connect Flex-10
