Range/Series Overview

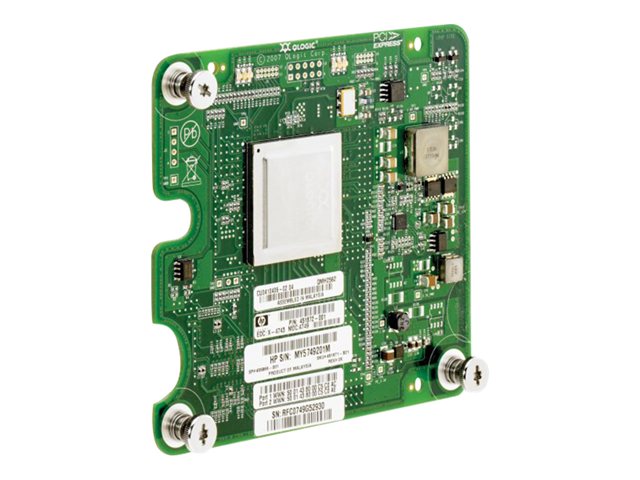

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.The QMH2562 is a PCI Express based 8Gb Fibre Channel mezzanine card for the HPE c-Class BladeSystem that delivers twice the data throughput as the previous generation 4Gb mezzanine card. It is optimized for virtualization, low power usage, management, security, reliability, availability and serviceability. While providing leading edge 8Gb performance, it is also backward compatible with 4Gb and 2Gb Fibre Channel speeds.
Features Summary
- Virtualization, power and security
QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem allows multiple logical (virtual) connections to share the same physical port. Each logical connection has its own resources and the ability to be managed independently.
QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem takes advantage of the QLogic StarPower technology ensuring a power efficient HBA. The QLogic StarPower technology offers features such as power and bandwidth intelligent PCIe link training and low-power switching power supplies.
QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem enables SAN-level authentication, fabric-level isolation, and end-to-end data integrity. Features include; authentication through FC-SP, data integrity through T10 CRC and access control in virtualized environments.
Specification Summary
Product Description
QLogic QMH2562 - host bus adapter - PCIe 2.0 x4 / PCIe x8 - 8Gb Fibre Channel x 2
Device Type
Host bus adapter
Interface (Bus) Type
PCI Express 2.0 x4 / PCI Express x8
PCI Specification Revision
PCIe 2.0
Ports
8Gb Fibre Channel x 2
Dimensions (WxDxH)
10.1 cm 11.3 cm
Data Link Protocol
8Gb Fibre Channel
Data Transfer Rate
8.5 Gbps
Manufacturer Warranty
1-year warranty
