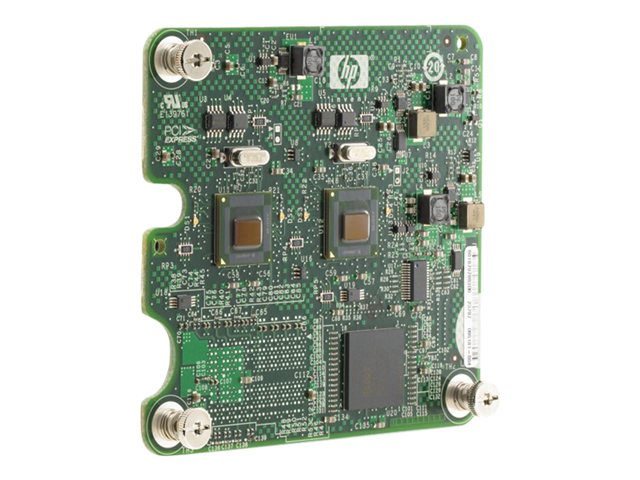

HPE NC364m

View all HPE PCI / M.2 Cards and Adapters - Visit the HPE Store (447883-B21) - (ECE1440912)

ProLiant cClass NC364m (Intel) Quad Port PCI-E Gigabit Server Adapter

Ethernet Throughput

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€843.32 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HPE NC364m is a HPE BladeSystem c-Class network adapter providing four Gigabit Ethernet ports on a single card saving valuable server mezzanine slots for other purposes. The x4 PCI Express NC364m is supported on Integrity and ProLiant c-Class server blades in all mezzanine slots. For Integrity c-Class servers, it is the first network adapter mezzanine option available providing up to 16 Gigabit Ethernet ports per BL860c server, 128 ports per c7000 enclosure. For ProLiant, the NC364m is the second quad-port adapter option for c-Class allowing ProLiant customers a choice between an adapter that uses either an Intel or Broadcom controller.; The NC364m is ideal for virtualization, security, server consolidation, network segmentation, and other server applications requiring maximum throughput and port density. The total aggregate throughput of 4Gbps also meets the needs for customers desiring high bandwidth but are not yet ready to move to 10 Gigabit Ethernet.

Features Summary

Ethernet Throughput
The HPE NC364m Quad Port 1GbE BL-c Adapter has up to 2000 Mbps full duplex Ethernet transfer rate per port (8000 Mbps combined) delivering better network performance and improved response time by removing bottlenecks across the entire network.
The NC364m support for 9K jumbo frames (also known as extended frames) permit a 9K byte transmission unit (MTU), which is six times the size of standard 1500 byte Ethernet frame. Supporting jumbo frames is a way to achieve higher throughput and better CPU utilization.
IEEE 802.1Q virtual local area network (VLAN) protocol allows each physical port of the NC364m to be separated into multiple virtual NICs for added network segmentation and enhanced security and performance.

Specification Summary

Product Description

HPE NC364m - network adapter - PCIe x4 - Gigabit Ethernet x 4

Device Type

Network adapter

Interface (Bus) Type

PCI Express x4

PCI Specification Revision

PCIe 1.0a

Ports

Gigabit Ethernet x 4

Data Link Protocol

10Mb LAN, 100Mb LAN, 1GbE

Network / Transport Protocol

TCP/IP

Processor

2 x Intel 82571EB

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP)

Manufacturer Warranty

1-year warranty

Designed For

Integrity BL860c i4; ProLiant BL280c G6, BL460c G6, BL460c G7, BL465, BL465c G6, BL465c G7, BL480, BL490c G6, BL490c G7, BL495c G5, BL495c G6, BL620C G7, BL680c G5, BL680c G7, BL685, BL685c G6, BL685c G7; StorageWorks Network Storage Blade X1800sb G2; StorageWorks Network Storage Gateway X3800sb G2

Specifications

EAN / GTIN:

4948382513045

General

Device Type

Network adapter

Interface (Bus) Type

PCI Express x4

PCI Specification Revision

PCIe 1.0a

Networking

Ports

Gigabit Ethernet x 4

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Network / Transport Protocol

TCP/IP

Remote Management Protocol

SNMP

Features

Flow control, ACPI support, auto-negotiation, load balancing, VLAN support, WOL, full duplex mode, NFT, TLB, TCP/IP offloading, Jumbo Frames support

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP)

Processor / Memory

Processor

2 x Intel 82571EB

Expansion / Connectivity

Interfaces

4 x 1000Base-T - RJ-45

Compatible Slots

1 x PCI Express x4

Miscellaneous

Compliant Standards

ACPI, FCC Class B certified, CSA, UL, VCCI Class B ITE, BSMI CNS 13438 Class A, CISPR 22 Class B, EN 60950, UL 1950, VCCI-II, WHQL, EN55022 Class B, ICES-003 Class B, MIC, RoHS

Software / System Requirements

Software Included

Drivers & Utilities

Manufacturer Warranty

Service & Support

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

35 °C

Humidity Range Operating

10 - 90%

Compatibility Information

Designed For

HPE Integrity BL860c i4 ¦ HPE ProLiant BL280c G6, BL460c, BL460c G6, BL460c G7, BL465c, BL465c G6, BL465c G7, BL480c, BL490c G6, BL490c G7, BL495c G5, BL495c G6, BL620C G7, BL680c G5, BL680c G7, BL685c, BL685c G6, BL685c G7 ¦ HPE StorageWorks Network Storage Blade X1800sb G2 ¦ HPE StorageWorks Network Storage Gateway X3800sb G2
