HPE NC360m - network adapter - PCIe x4 - Gigabit E

Images Manuals

Images for illustrative purposes

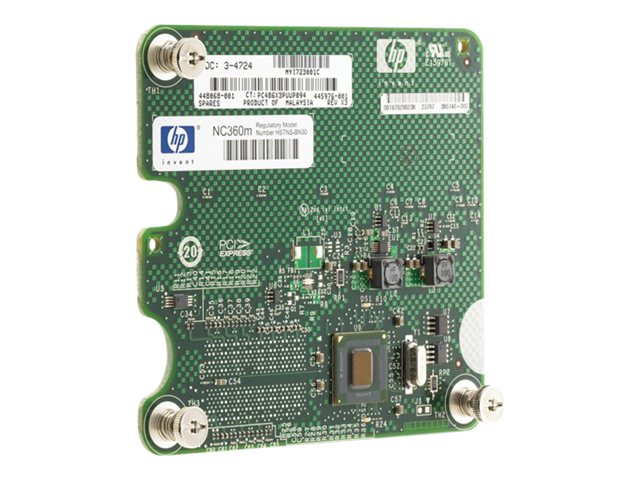

HPE NC360m

View all HPE PCI / M.2 Cards and Adapters - Visit the HPE Store (445978-B21) - (ECE1440911)

ProLiant cClass NC360m (Intel) Dual Port PCI-E Gigabit Server Adapter

Dual Port Gigabit Ethernet Throughput

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€389.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HPE NC360m is a HPE BladeSystem c-Class network adapter providing two Gigabit Ethernet ports on a single mezzanine card. With the addition of the NC360m, HPE BladeSystem c-Class customers now have the choice of an HPE network adapter that uses either an Intel or Broadcom controller. The NC360m is designed for applications requiring additional Gigabit Ethernet ports than those provided on the server. It is ideal for virtualization, security, server consolidation, network segmentation and other BladeSystem applications requiring additional network port density.; Tested and proven to meet demanding BladeSystem standards, the adapter ships with the advanced server features that ProLiant customers have come to expect, such as support for failover and load balancing, TCP/IP checksum offloading, large send offloading, Wake-on-LAN, PXE, jumbo frames, VLAN tagging and much more.

Specification Summary

Product Description

HPE NC360m - network adapter - PCIe x4 - Gigabit Ethernet x 2

Device Type

Network adapter

Interface (Bus) Type

PCI Express x4

PCI Specification Revision

PCIe 1.0a

Ports

Gigabit Ethernet x 2

Data Link Protocol

10Mb LAN, 100Mb LAN, 1GbE

Network / Transport Protocol

TCP/IP

Processor

1 x Intel 82571EB

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP)

System Requirements

SUSE Linux Enterprise Server, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Web Edition, Microsoft Windows Server 2003 Standard Edition, Novell NetWare 6.5, Microsoft Windows Small Business Server 2003, Red Hat Enterprise Linux, Microsoft Windows Server 2003 Standard x64 Edition, Microsoft Windows Server 2003 Enterprise x64 Edition, Novell Open Enterprise Server

Manufacturer Warranty

1-year warranty

Designed For

Integrity BL860c i4; ProLiant BL280c G6, BL2x220c G5, BL2x220c G5 Server A, BL2x220c G5 Server B, BL460c, BL460c G6, BL465c, BL465c G6, BL465c G7, BL480c, BL490c G6, BL495c G5, BL495c G6, BL680c G5, BL685c, BL685c G6, BL685c G7

Specifications

EAN / GTIN:

883585060177

General

Device Type

Network adapter

Interface (Bus) Type

PCI Express x4

PCI Specification Revision

PCIe 1.0a

Networking

Ports

Gigabit Ethernet x 2

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Network / Transport Protocol

TCP/IP

Remote Management Protocol

SNMP

Features

Flow control, ACPI support, auto-negotiation, load balancing, VLAN support, WOL, full duplex mode, NFT, TLB, TCP/IP offloading, Jumbo Frames support

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP)

Processor / Memory

Processor

1 x Intel 82571EB

Expansion / Connectivity

Interfaces

2 x 1000Base-T - RJ-45

Compatible Slots

1 x PCI Express x4

Miscellaneous

Compliant Standards

ACPI, FCC Class B certified, CSA, UL, VCCI Class B ITE, BSMI CNS 13438 Class A, CISPR 22 Class B, EN 60950, UL 1950, VCCI-II, WHQL, EN55022 Class B, ICES-003 Class B, MIC, RoHS

Software / System Requirements

Software Included

Drivers & Utilities

OS Required

Manufacturer Warranty

Service & Support

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

35 °C

Humidity Range Operating

10 - 90%

Compatibility Information

Designed For

HPE Integrity BL860c i4 ¦ HPE ProLiant BL280c G6, BL2x220c G5, BL2x220c G5 Server A, BL2x220c G5 Server B, BL460c, BL460c G6, BL465c, BL465c G6, BL465c G7, BL480c, BL490c G6, BL495c G5, BL495c G6, BL680c G5, BL685c, BL685c G6, BL685c G7
