Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

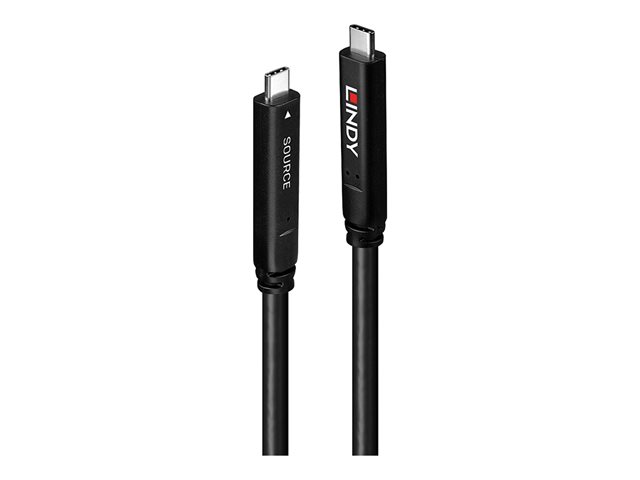

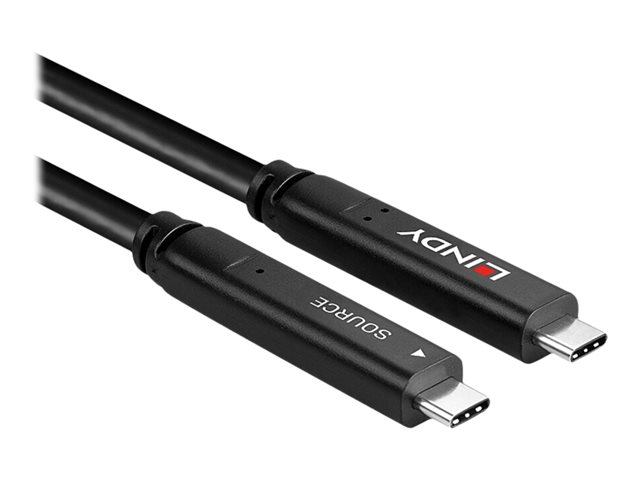

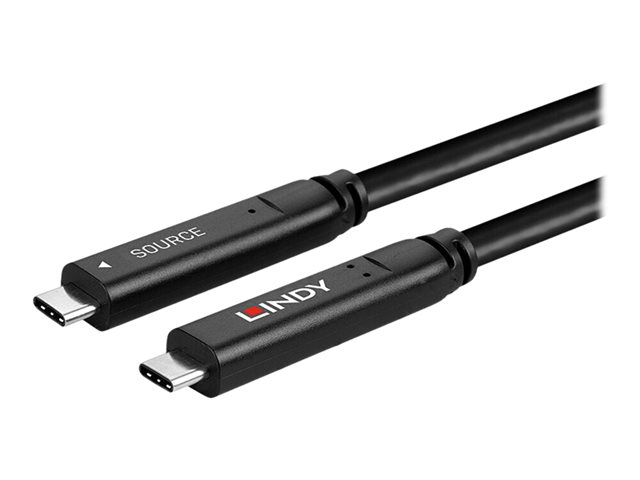

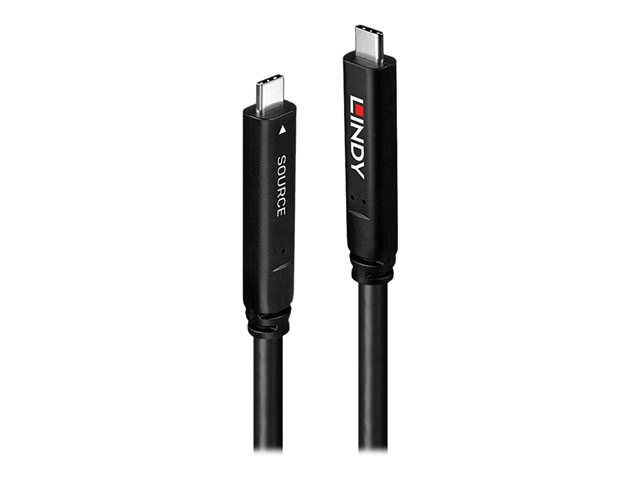

10m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable for data and video extension
Data transfer rates up to 5Gbps
Supports DisplayPort Alternate Mode and DP 1.4 (2 lanes) with video resolutions up to 4K 3840x2160@30Hz
Supports Power Delivery up to 60W (20V 3A)
2 year warranty
The Lindy USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 10m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.
The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
Please Note:
USB devices which only support DP signals over 4 lanes might not be compatible.
Displays must have set USB settings to USB 3.0 in order to receive video via Type C.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specification Summary
Product Description
Lindy - USB-C cable - 24 pin USB-C to 24 pin USB-C - 10 m
Technology
Shielded/fibre optic
Features
Round, USB Power Delivery (60W), 4K60Hz (3840 x 2160) support, EMI/RFI protection, plastic housing, Ultra HD (4K) support, DisplayPort Alternate Mode support, Power Delivery (PD) technology, up to 60 Watts of power delivery, 10 Gbps data rate, copper alloy pins
Connector
24 pin USB-C - male
Connector (Second End)
24 pin USB-C - male
Compliant Standards
USB 3.2 Gen 2 / DisplayPort 1.4 /Thunderbolt 3
Manufacturer Warranty
2-year warranty
