Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.5 metre USB 3.2 Gen 2 Active Cable for data and video extension
Data transfer rates up to 10Gbps
Supports DisplayPort 1.4 Alternate Mode and video resolutions up to UHD 8K 7680x4320@60Hz including 4K 4096x2160@120Hz
Supports Power Delivery up to 60W (20V / 3A)
2 year warranty
USB active cables allow users to extend the connection distance between two USB devices. These cables feature integrated active electronics to boost the signal for high speed data transfer.
The Lindy USB 3.2 Gen 2 Active Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 10Gbps as well as Displayport 1.4 Alternate Mode. It combines data, video and USB Power Delivery into one cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels.
When sending DP 1.4 signals, only USB 2.0 up to 480Mbps can be supported. USB 3.2 Gen 2 with data rates up to 10Gbps can be achieved when sending DP 1.2 signals with resolutions up to 4K 60Hz. The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Features Summary
- High-performance connectivity
This cable leverages USB 3.1 Gen 2 technology, providing fast data transfer speeds up to 10 Gbps, ideal for demanding applications. - Robust construction
Built with tinned copper shielding and Thermoplastic elastomer (TPE) jacket, the cable offers durability and protection against interference. - Exceptional video support
The cable supports DisplayPort Alternate Mode, enabling video output up to 8K resolution at 60Hz, suitable for high-performance monitors. - User-friendly design
With its round cable features and poly bag packaging, the cable is easy to handle and store, making it a convenient accessory for various setups. - Compliance standards
The cable adheres to FCC, RoHS, REACH, and CP65 standards, ensuring it meets essential environmental and safety regulations.
Specification Summary
Product Description

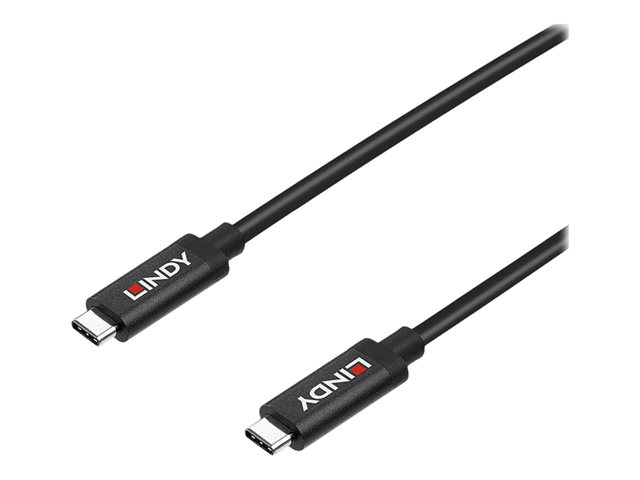

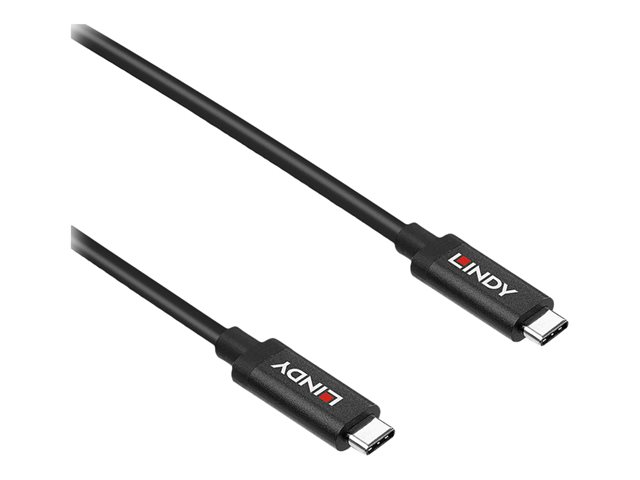

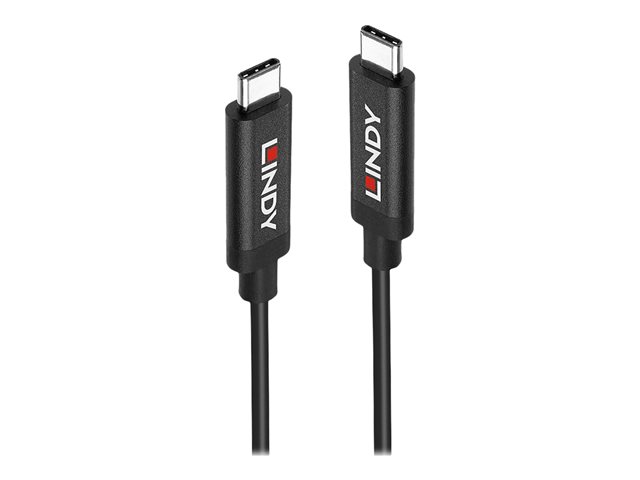

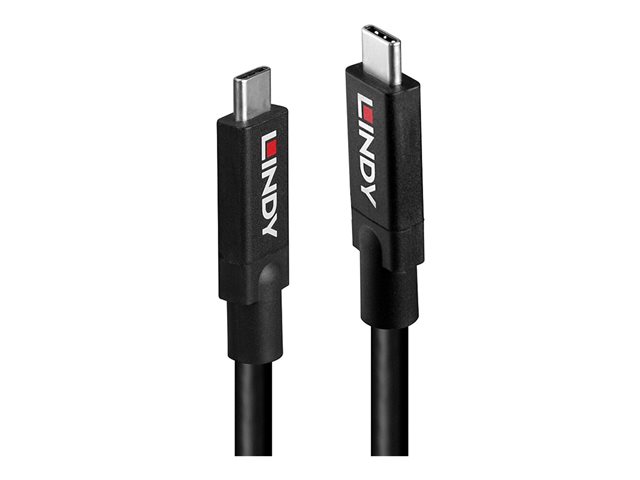

Lindy - USB cable - 9 pin USB 3.1 Gen 2 Type C to 9 pin USB 3.1 Gen 2 Type C - 5 m
Features
Active cable, 8K60Hz (7680 x 4320) support, round, DisplayPort Alternate Mode support, poly bag package, PVC connector housing, 10 Gbps data rate
Connector
9 pin USB 3.1 Gen 2 Type C - male
Connector (Second End)
9 pin USB 3.1 Gen 2 Type C - male
Compliant Standards
USB 3.1 Gen 2 / DisplayPort 1.4
Manufacturer Warranty
2-year warranty
