Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.
Connects 4 Type A and 3 Type C USB 3.1 Gen 2 devices to a Type C port with SuperSpeed+ data rates up to 10Gbps
Hard-wearing USB Hub - Perfect for industrial applications
Robust metal housing with high EMC protection and integrated brackets for mounting
Powered by external power supply or terminal block
2 year warranty

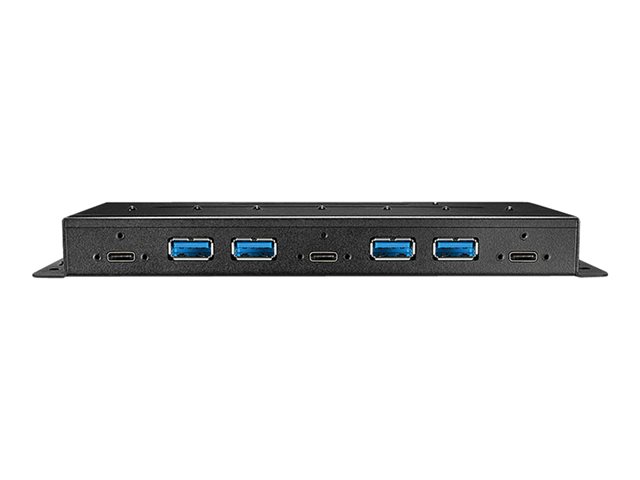

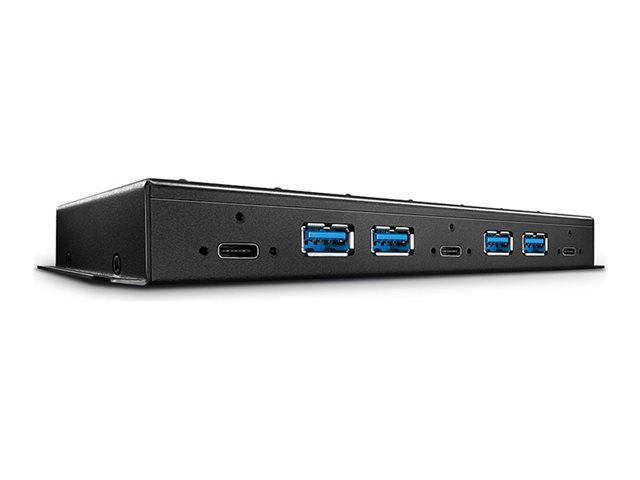

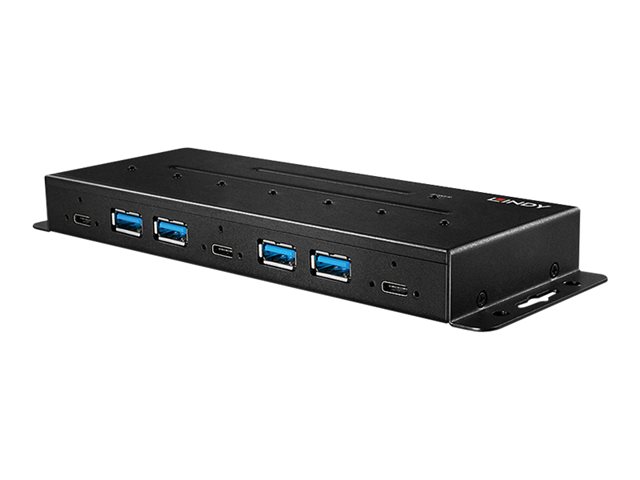

The Lindy 7 Port USB 3.1 Gen 2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.1 Gen 2 speeds up to 10 Gbps. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.1 cables which are compliant with USB-IF Type C locking specification.

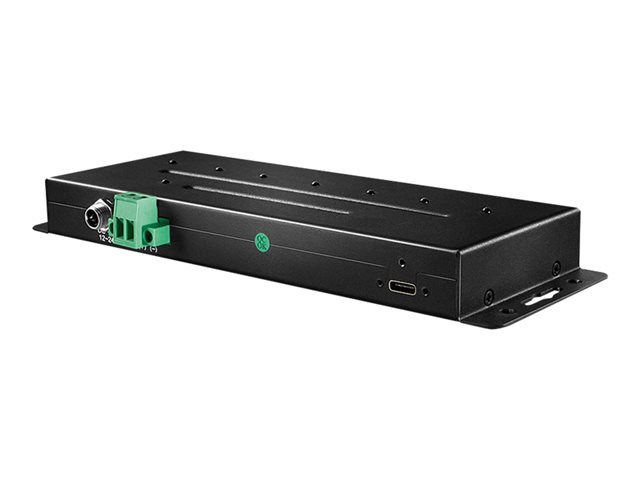

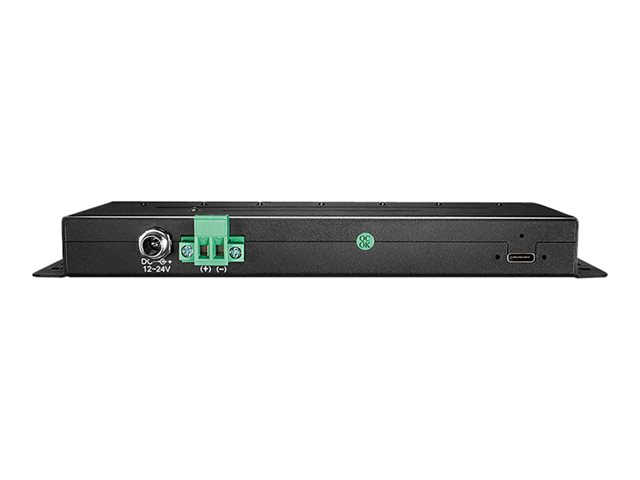

Each port features individual short circuit protection - and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specification Summary
Product Description
Lindy - hub - 7 ports - rack-mountable
Device Type
Hub - 7 ports
Enclosure Type
Rack-mountable
Ports
3 x USB 3.1 Gen 2 + 4 x USB 3.1
Features
BC1.2 fast charging support, metal housing
Compliant Standards
USB 1.1, USB 2.0, USB 3.0, USB 3.1 Gen 2
Dimensions (WxDxH)
18.45 cm x 6.43 cm x 2 cm
