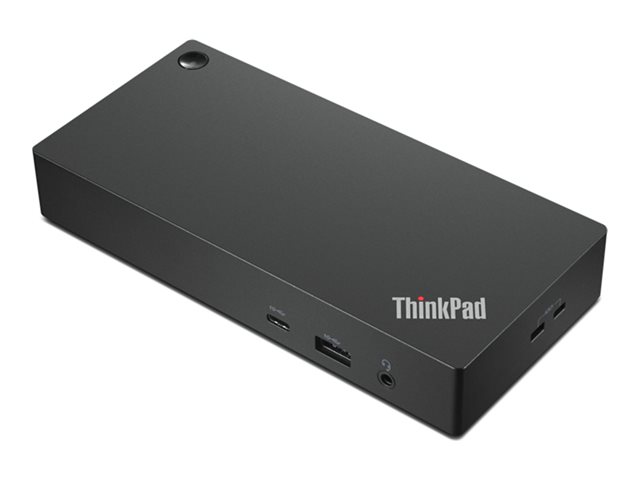

Lenovo ThinkPad Universal USB-C Dock

Name: Lenovo ThinkPad Universal USB-C Dock
Brand: LENOVO
SKU: MMECA92327
Price: 222.40 EUR
Availability: InStock

View all LENOVO Docking | Replicator - Visit the LENOVO Store (40AY0090EU) - (MMECA92327)

ThinkPad Universal USB-C Dock - docking station - USB-C - HDMI, 2 x DP - 1GbE

No Marketing Data

FREE Delivery on orders over €250

SPO - THIS IS A SPECIAL ORDER ITEM AND CANNOT BE RETURNED AS UNWANTED OR CANCELLED. **Note: All Warranties/Dead On Arrival issues for this item are handled by the manufacturer

11 Available to Ship
Order within 1Hrs 58Mins for: Delivery (8 Jun or 9 Jun)

€222.40 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ThinkPad Universal USB-C Dock is a welcome innovation docking solution that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100W to notebooks, automated firmware updates and next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any PC that supports industry standards of USB-C connectivity: DISCLAIMER"Lenovo USB-C& Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port. Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.

ThinkPad Universal USB-C Dock could charge Notebook max as 100W with 135W Slim Tip power adapter (sold separately, Option PN:4X20Q88539~4X20Q88553) connected to Dock.

Specification Summary

Product Description

Lenovo ThinkPad Universal USB-C Dock - docking station - USB-C - HDMI, 2 x DP - 1GbE

Product Type

Docking station

Docking Interface

USB-C

Video Interfaces

HDMI, 2 x DP

Dimensions (WxDxH)

17.1 cm x 8 cm x 3.075 cm

Weight

340 g

Colour

Black

Localisation

English / Europe, Vietnam, South Korea

Networking

Gigabit Ethernet

Power

Power adapter 90 Watt Power Provided

Manufacturer Selling Program

Lenovo Campus

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0195348192095

General

Product Type

Docking station

Width

17.1 cm

Depth

8 cm

Height

3.075 cm

Weight

340 g

Enclosure Colour

Black

Localisation

English / Europe, Vietnam, South Korea

Video

Max Resolution Details

3840 x 2160 - 60 Hz (Dual Display) ¦ 3840 x 2160 - 30 Hz (Triple Display)

Networking

Data Link Protocol

Gigabit Ethernet

Expansion / Connectivity

Interfaces

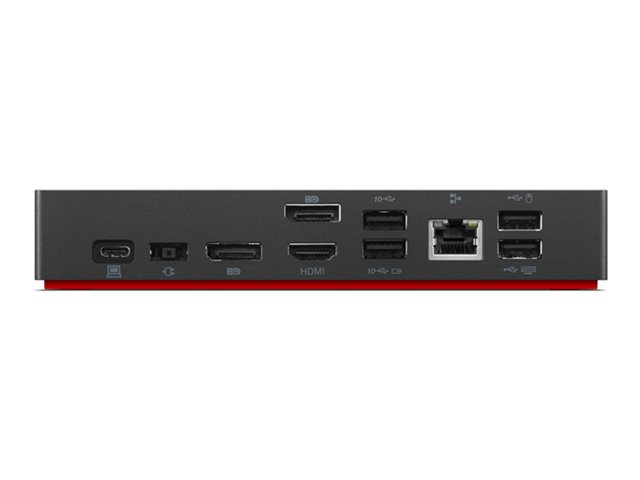

USB 3.2 Gen 2 with Always-on charging ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole ¦ 2 x USB 2.0 - 4 pin USB Type A

Miscellaneous

Cables Included

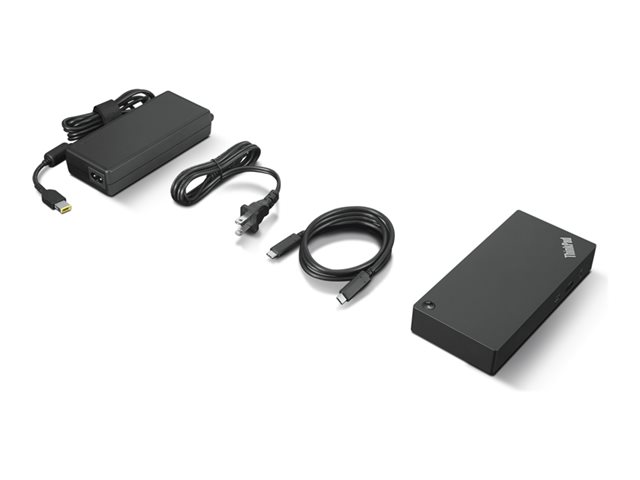

1 x USB-C to USB-C cable - external

Features

Security lock slot (cable lock sold separately), wake on LAN, pass through MAC address, Preboot Execution Environment (PXE) support, 100W output power with 135W power adapter connected, 65W output power with 90W power adapter connected

Security Slot Type

Kensington NanoSaver security slot / Kensington MicroSaver security slot

Compliant Standards

FCC, ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV Mark, Kvalitet, LoA, SII, Ukraine EMC DoC, NOM, DisplayPort 1.4

Manufacturer Selling Program

Lenovo Campus

Power

Power Device

Power adapter

Power Provided

90 Watt

System Requirements
