Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

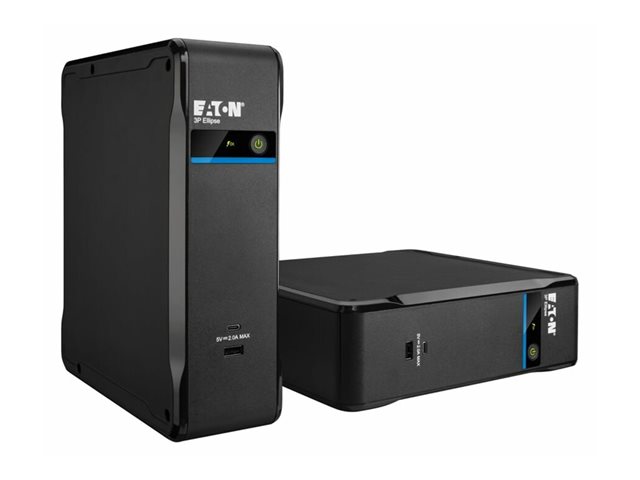

The Eaton 3P Ellipse 700 USB IEC is designed for efficient power management and protection of your critical systems. With a compact external form factor, this uninterruptible power supply (UPS) ensures reliable performance with its off-line technology and a power capacity of 700 VA. It features an automatic battery test function and has a replaceable battery to maintain long-term operation. The UPS operates quietly at only 25 dB, making it suitable for environments where noise reduction is essential. This UPS includes four output connectors for versatile power delivery and operates within an input voltage range of AC 184 - 264 V, adjustable from AC 160 - 284 V. It is equipped with deep discharge protection and a cold-start function to enhance usability in challenging situations. Compliance with various standards, including IEC 62040, underscores its reliability and commitment to quality.


Specification Summary

Product Description
Eaton 3P Ellipse 700 USB IEC - UPS - 420 Watt - 700 VA
Device Type
UPS - external
Weight
3.9 kg
Input Voltage
AC 220-240 V
Output Voltage
AC 230 V
Power Capacity
420 Watt / 700 VA
Output connectors
1 x IEC connector (surge) ¦ 3 x IEC connector (UPS and surge)
Batteries Qty
1
Networking
USB
Dimensions (WxDxH)
8.1 cm x 23.5 cm x 26.3 cm
Manufacturer Warranty
3-year warranty

Specifications

EAN / GTIN:
3553340621321
General
Device Type
UPS - external
Power Device
UPS Technology
Off-line
Input Voltage
AC 220-240 V
Input Voltage Range
AC 184 - 264 V
Input Voltage Range (Adjustable)
AC 160 - 284 V
Frequency Required
50/60 Hz
Power Output Connectors Details
1 x IEC connector (surge) ¦ 3 x IEC connector (UPS and surge)
Output Voltage
AC 230 V
Power Capacity
420 Watt / 700 VA
Surge Suppression
Yes
Circuit Protection
Circuit breaker
Battery
Quantity
1
Networking
Remote Management Interface
USB
Expansion / Connectivity
Interfaces
1 x management (USB) - 4 pin USB Type B
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Cables Included
AC input cable ¦ USB cable
Features
Replaceable battery, fanless, 10 A circuit breaker, cold-start function, automatic battery test, deep discharge protection, reset breaker
Compliant Standards
IEC 61643-11, IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, RoHS, REACH, PEP Ecopassport, CM, UKR, UKCA, CB
Software / System Requirements
Software Included
Eaton UPS Companion
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - battery - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
25 dB
Dimensions & Weight
Width
8.1 cm
Depth
23.5 cm
Height
26.3 cm
Weight
3.9 kg
