<%=manufacture1 %> Logo FREE Delivery on orders over €250
**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 05-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP €159.20
€129.75 Incl Vat




Wishlist Compare Share

Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton 3P Ellipse 700 IEC is a reliable uninterruptible power supply (UPS) designed to provide efficient power protection for sensitive electrical equipment. Operating within a temperature range of 0°C to 40°C, this UPS ensures dependable performance in various environments. Its fanless design operates at a low sound emission of 25 dB, making it suitable for use in environments where noise is a concern. Equipped with features such as a replaceable battery and cold-start function, the UPS offers flexibility. It includes a circuit breaker for added protection and provides output power of 420 watts, delivering a seamless flow of electricity to connected devices. Compliant with multiple standards like IEC 62040-1, RoHS, and others, this Eaton UPS is built to meet requirements while ensuring safe and efficient operation.


Features Summary

  • Efficient performance
    Designed to operate within a temperature range of 0°C to 40°C, ensuring reliable functionality for various applications.
  • Quiet operation
    The fanless design results in a low sound emission of 25 dB, making it suitable for noise-sensitive environments.
  • Flexible power options
    Equipped with features such as a replaceable battery and cold-start function, accommodating various user needs.
  • Robust protection
    Includes a circuit breaker for enhanced safety and surge suppression, protecting devices from electrical damage.
  • Compliance and safety
    Meets various international safety and environmental standards, including IEC 62040-1 and RoHS certifications.

Specification Summary

Product Description

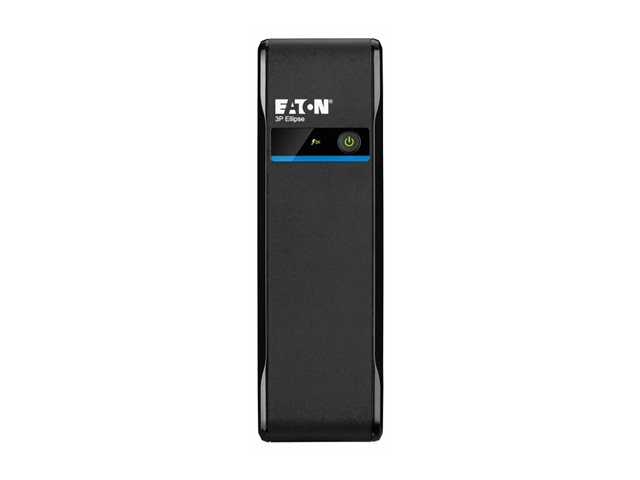

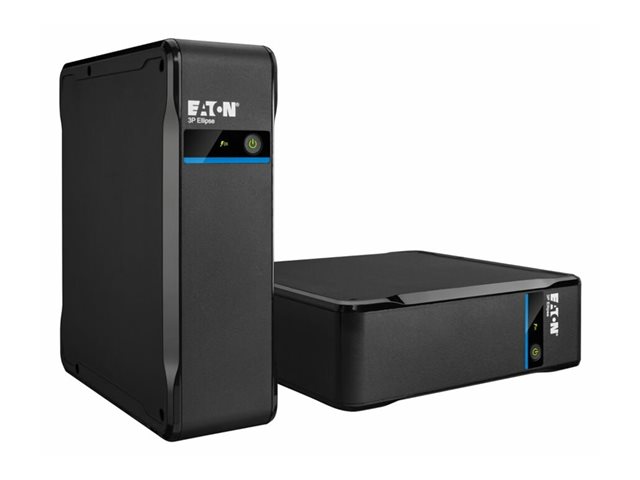

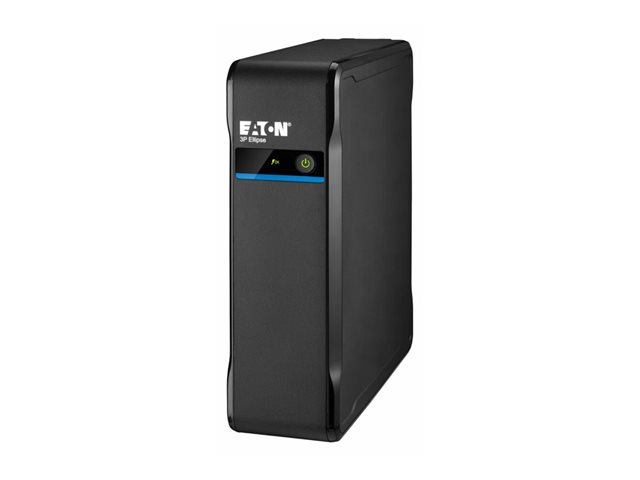

Eaton 3P Ellipse 700 IEC - UPS - 420 Watt - 700 VA
Device Type
UPS - external
Weight
3.7 kg
Input Voltage
AC 220-240 V
Output Voltage
AC 230 V
Power Capacity
420 Watt / 700 VA
Output connectors

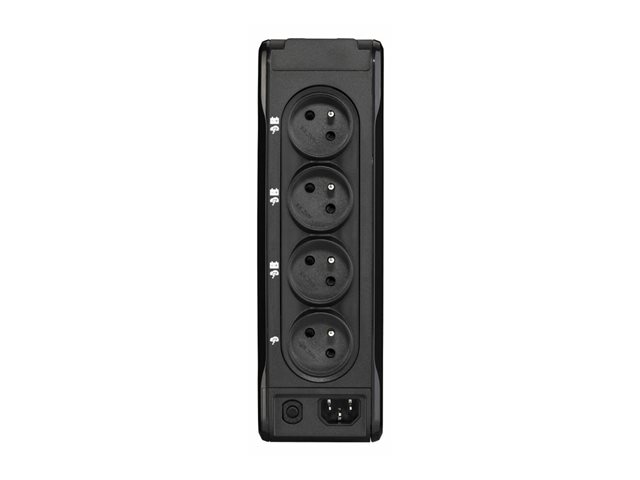

1 x IEC connector (surge) ¦ 3 x IEC connector (UPS and surge)
Batteries Qty
1
Dimensions (WxDxH)
8.1 cm x 23.5 cm x 26.3 cm
Manufacturer Warranty
3-year warranty

Specifications

EAN / GTIN:
3553340621291
General
Device Type
UPS - external
Power Device
UPS Technology
Off-line
Input Voltage
AC 220-240 V
Input Voltage Range
AC 184 - 264 V
Input Voltage Range (Adjustable)
AC 160 - 284 V
Frequency Required
50/60 Hz
Power Output Connectors Details
1 x IEC connector (surge) ¦ 3 x IEC connector (UPS and surge)
Output Voltage
AC 230 V
Power Capacity
420 Watt / 700 VA
Surge Suppression
Yes
Circuit Protection
Circuit breaker
Battery
Quantity
1
Miscellaneous
Cables Included
AC input cable
Features
Replaceable battery, fanless, 10 A circuit breaker, cold-start function, automatic battery test, deep discharge protection, reset breaker
Compliant Standards
IEC 61643-11, IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, RoHS, REACH, PEP Ecopassport, CM, UKR, UKCA, CB
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - battery - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
25 dB
Dimensions & Weight
Width
8.1 cm
Depth
23.5 cm
Height
26.3 cm
Weight
3.7 kg
