Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

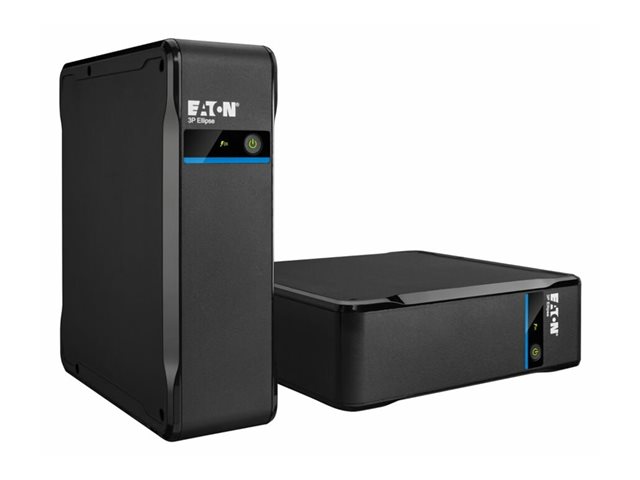

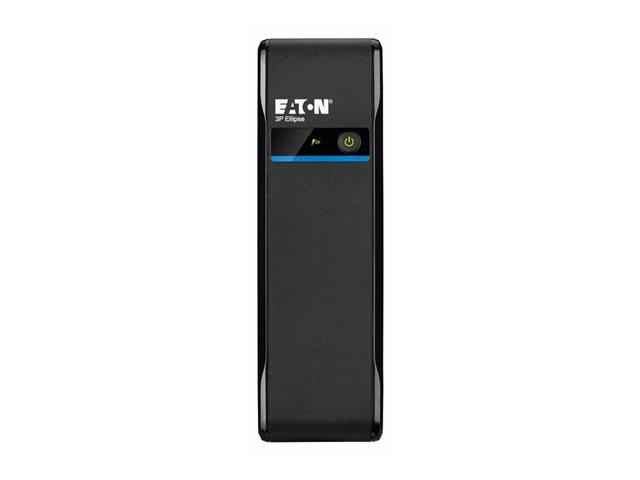

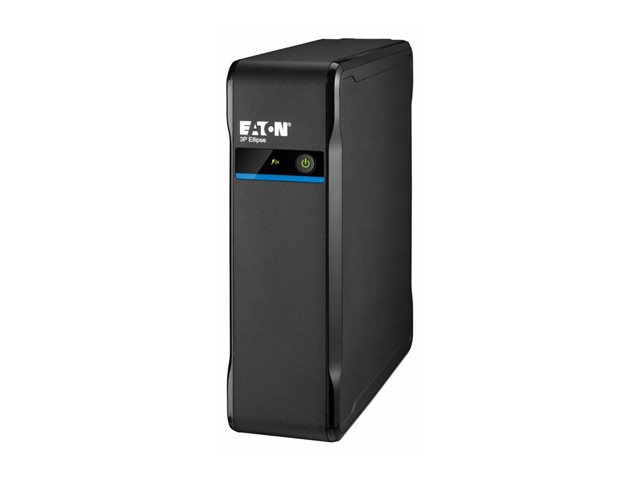

The Eaton 3P Ellipse 550 IEC delivers power protection for essential devices. Designed for a range of environments, it operates efficiently at temperatures from 0°C to 40°C with a sound emission level of 25 dB, ensuring quiet operation in any setting. With features such as a replaceable battery and deep discharge protection, this UPS unit safeguards your devices against power interruptions. Its fanless design contributes to silent operation while reducing maintenance needs, allowing for use in office and home environments.

Equipped with four output connectors, the Eaton 3P Ellipse provides necessary connections for your electronic equipment. It supports a power capacity of 550 VA and operates with an input voltage range of AC 184 - 264 V, making it versatile for various applications. Compliance with multiple standards such as RoHS and UKCA ensures this product meets regulations, providing peace of mind while delivering dependable performance.


Specification Summary

Product Description
Eaton 3P Ellipse 550 IEC - UPS - 330 Watt - 550 VA
Device Type
UPS - external
Weight
3 kg
Input Voltage
AC 220-240 V
Output Voltage
AC 230 V
Power Capacity
330 Watt / 550 VA

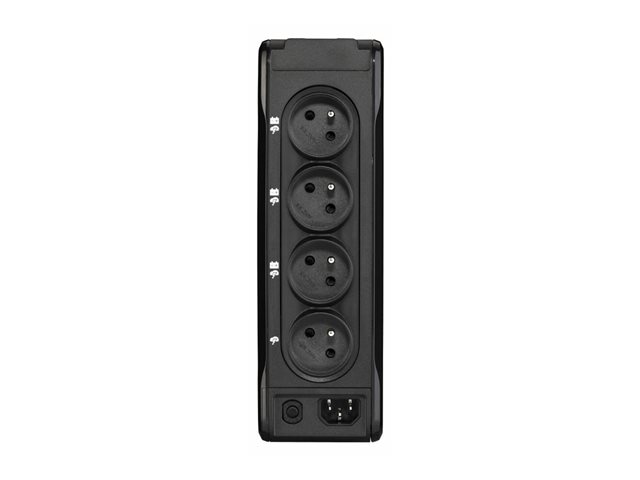

Output connectors
1 x IEC connector (surge) ¦ 3 x IEC connector (UPS and surge)
Batteries Qty
1
Dimensions (WxDxH)
8.1 cm x 23.5 cm x 26.3 cm
Manufacturer Warranty
3-year warranty

Specifications

EAN / GTIN:
3553340621260
General
Device Type
UPS - external
Power Device
UPS Technology
Off-line
Input Voltage
AC 220-240 V
Input Voltage Range
AC 184 - 264 V
Input Voltage Range (Adjustable)
AC 160 - 284 V
Frequency Required
50/60 Hz
Power Output Connectors Details
1 x IEC connector (surge) ¦ 3 x IEC connector (UPS and surge)
Output Voltage
AC 230 V
Power Capacity
330 Watt / 550 VA
Surge Suppression
Yes
Circuit Protection
Circuit breaker
Battery
Quantity
1
Miscellaneous
Cables Included
AC input cable
Features
Replaceable battery, fanless, 10 A circuit breaker, cold-start function, automatic battery test, deep discharge protection, reset breaker
Compliant Standards
IEC 61643-11, IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, RoHS, REACH, PEP Ecopassport, CM, UKR, UKCA, CB
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - battery - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
25 dB
Dimensions & Weight
Width
8.1 cm
Depth
23.5 cm
Height
26.3 cm
Weight
3 kg
