Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton 3P Ellipse 1700 USB IEC is a reliable uninterruptible power supply (UPS) designed to protect critical electronic devices. With a power capacity of 1700 VA and an output of 1040 watts, this compact UPS ensures sufficient power for essential equipment during outages. It features surge suppression to guard against voltage spikes and a circuit breaker for safety. The device operates quietly at just 25 dB, making it suitable for office environments or home use. Equipped with a replaceable battery, the Eaton 3P Ellipse offers convenience for ongoing maintenance. The device supports remote management via a USB interface, allowing seamless monitoring and updates. It complies with several standards including IEC 62040-1, RoHS, and UKCA, affirming its reliability and environmental safety. With its external form factor and fanless design, this UPS balances functionality with energy efficiency.


Specification Summary

Product Description

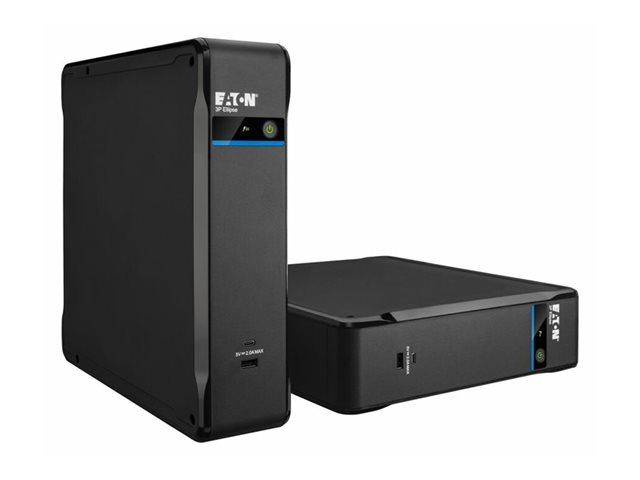

Eaton 3P Ellipse 1700 USB IEC - UPS - 1040 Watt - 1700 VA
Device Type
UPS - external
Weight
7.8 kg
Input Voltage
AC 220-240 V
Output Voltage
AC 230 V
Power Capacity
1040 Watt / 1700 VA
Output connectors
4 x IEC connector (surge) ¦ 4 x IEC connector (UPS and surge) ¦ 1 x 4 pin USB Type A ¦ 1 x 24 pin USB-C
Batteries Qty
1
Networking
USB
Dimensions (WxDxH)
8.1 cm x 30.5 cm x 31.2 cm
Manufacturer Warranty
3-year warranty

Specifications

EAN / GTIN:
3553340621451
General
Device Type
UPS - external
Power Device
UPS Technology
Off-line
Input Voltage
AC 220-240 V
Input Voltage Range
AC 184 - 264 V
Input Voltage Range (Adjustable)
AC 160 - 284 V
Frequency Required
50/60 Hz
Power Output Connectors Details
4 x IEC connector (surge) ¦ 4 x IEC connector (UPS and surge) ¦ 1 x 4 pin USB Type A ¦ 1 x 24 pin USB-C
Output Voltage
AC 230 V
Power Capacity
1040 Watt / 1700 VA
Surge Suppression
Yes
Circuit Protection
Circuit breaker
Battery
Quantity
1
Networking
Remote Management Interface
USB
Expansion / Connectivity
Interfaces
1 x management (USB) - 4 pin USB Type B
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Cables Included
AC input cable ¦ USB cable
Features
Replaceable battery, fanless, 10 A circuit breaker, cold-start function, automatic battery test, deep discharge protection, reset breaker
Compliant Standards
IEC 61643-11, IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, RoHS, REACH, PEP Ecopassport, CM, UKR, UKCA, CB
Software / System Requirements
Software Included
Eaton UPS Companion
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - battery - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
25 dB
Dimensions & Weight
Width
8.1 cm
Depth
30.5 cm
Height
31.2 cm
Weight
7.8 kg
