EAN / GTIN:
4002888383349
Device Type

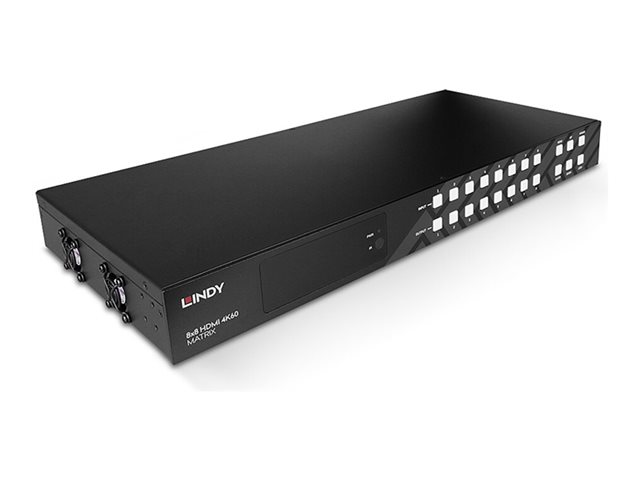

Video/audio splitter - 8 x 8
Performance
Bandwidth: 18 Gbps
Max Resolution
3840 x 2160 @ 60 Hz
Features
4K60Hz support, audio pass-through, 7.1 channel audio support, 5.1 channel audio support, 38 kHz transmission, CEC support, OLED status display, ARC, Dolby Atmos support, Dolby Vision HDR support, downscaler function, HDR10 support
Compliant Standards
HDCP 2.2
Interfaces
8 x HDMI output ¦ 8 x HDMI input ¦ 8 x digital audio (coaxial) output ¦ 8 x audio output mini-jack ¦ 1 x serial (RS-232) ¦ 1 x management RJ-45
Power Device
External power adapter
Included Accessories
IR remote, mounting brackets, power cable
Cables Included
1 x IR receiver cable
Compliant Standards
FCC, RoHS, REACH, CP65, UKCA
Localisation
United Kingdom, Europe, United States, Australia
Dimensions & Weight (Shipping)
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-10 °C
Max Operating Temperature
45 °C
Humidity Range Operating
20 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
60 °C
