Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.
Extends DVI-D Single Link Signals up to 70m using a single Cat.6 Cable
Supports resolutions up to 1920x1200@60Hz
Minimalist, compact design
Optional external DC power connection
2 year warranty
Cat.6 extenders allow for cost effective, reliable extension of audio or video signals over longer distances that are not possible with passive cable or active repeater solutions.

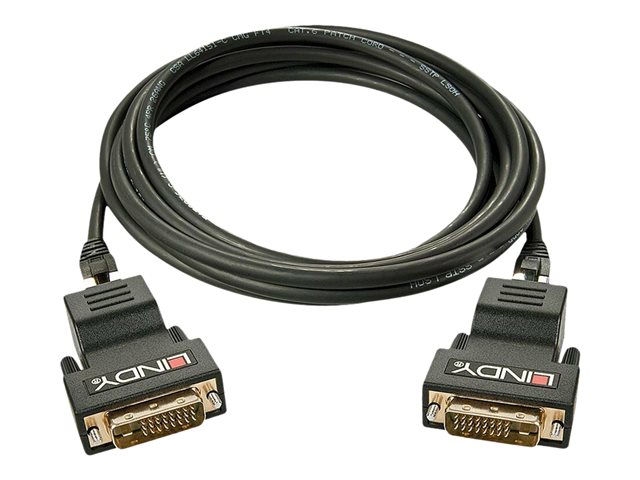

The Lindy 70m Cat.6 DVI-D Single Link Extender is a simple to use plug and play solution which lets the user extend DVI-D signals up to 70m using a single low cost Cat.6 U/UTP cable (not included).
Supporting resolutions up to Full HD 1920x1200@60Hz, video content can be seen with incredible clarity and transmitted at distances up to 70m, perfect for use in a variety of AV and IT distribution applications in a range of settings including workplaces, lecture halls and meeting rooms.

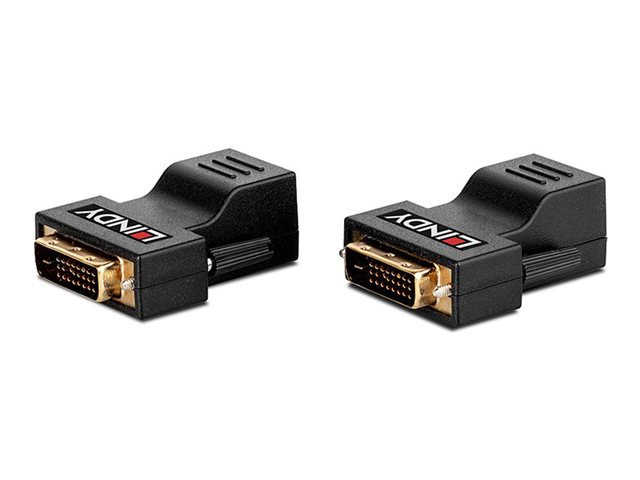

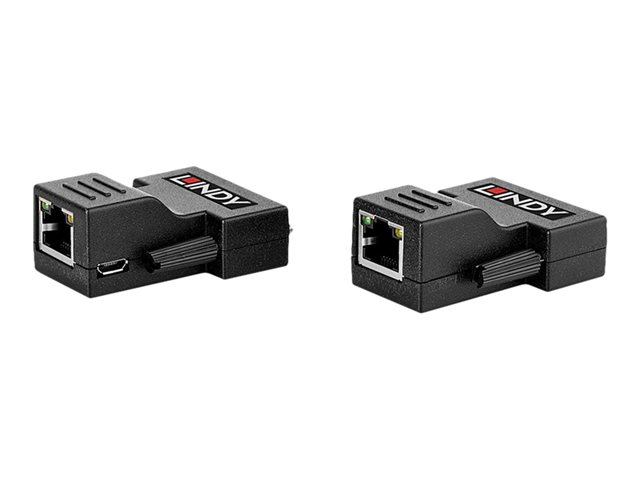

The extender comprises of small, minimalist transmitter and receiver units which can be directly connected to the source or display device, providing a more flexible and discreet installation. An optional USB to DC adapter is also provided for when the graphics card connected does not provide sufficient power.
Please Note: The quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 solid core cable. Using a different cable type, or introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
Specification Summary
Product Description
LINDY Extender CAT5e/6 DVI Extender - video extender
Device Type
Video extender - RJ-45 / 24+1 pin digital DVI
Max Transfer Distance
70 m
Dimensions (WxDxH)
4 cm x 5 cm x 2.5 cm
Manufacturer Warranty
2-year warranty
