Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.
Switches between 8 HDMI source devices and 8 HDMI displays as a professional matrix
Creates single video walls (up to 4x2) or multiple video walls (2x2)
Seamlessly switch between devices under 0.1ms
Control output scaling to ensure the optimum or consistent resolution is shown
2 year warranty
The Lindy 8x8 HDMI 18G Matrix with Video Wall Scaling is the professional solution for distributing content from several source devices to many HDMI displays, or for creating eye-catching video wall setups.
Supporting resolutions up to 4K@60Hz, content can be shown in excellent clarity, great for ensuring a high-quality video experience in sports bars, retail stores or multiple consecutive locations in larger installations. Resolutions can easily be scaled and controlled by the user to ensure the optimum, or consistent, resolution is always displayed.
As well as providing a professional 8x8 matrix switching function, this device can create customisable singular or dual video wall displays in a variety of layouts. This provides the user with a range of flexible display options for their installation and allows the device to be used in a range of specialised environments; including transport hubs, points of sale and hospitality. Analogue audio ports also allow for 2-channel audio extraction, to add immersive stereo audio to the content on screen.

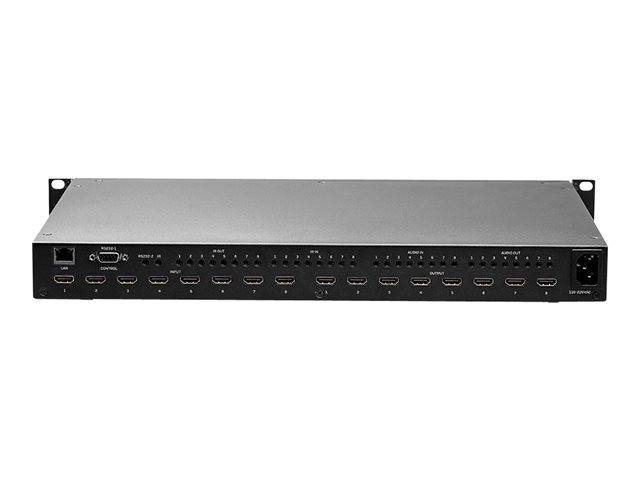

The matrix also provides instant seamless switching between source devices and displays, a crucial feature for use in real time operation centre scenarios such as traffic monitoring, stock market floors or security setups. Controlled via independent IR as well as LAN and push button switching, this matrix ensures minimum effort is required of the user when creating their installation, while RS-232 control also allows for integration into larger control systems.
Professional EDID management ensures maximum compatibility with both the source devices and displays.
Specification Summary
Product Description
Lindy 8x8 HDMI 18G Matrix with Video Wall Scaling - video/audio switch - Managed - rack-mountable
Device Type
Video/audio switch - Managed
Enclosure Type
Rack-mountable
Performance
Bandwidth: 18 Gbps
Remote Management Protocol
Telnet
Features
4K resolution support, seamless switching, scaling function
Compliant Standards
HDCP 2.2
Dimensions (WxDxH)
43 cm x 30 cm x 4.4 cm
Manufacturer Warranty
2-year warranty
