EAN / GTIN:
4002888382281
Device Type
Video/audio switch - 4 ports
Performance
Bandwidth: 18 Gbps
Features
Metal housing, 4K60 8-bit 4:4:4 compatible, PBP function, PIP function, infrared remote control support, RGB 4:4:4, YCbCr 4:2:0, YCbCr 4:2:2, YCbCr 4:4:4, 5.1 channel audio support, 7.1 channel audio support, Dolby Digital Plus support, Dolby Digital support, DTS support, Pulse-Code Modulation (PCM) support, 2 channel analogue audio, DTS Digital Surround 5.1 support, ESD/EMP protection (Air: ± 8 kV, Contact: ± 4 kV), reset button, auto/source button, EDID mode, quad view, triple view
Compliant Standards
HDCP 2.2
Status Indicators
Power, input, auto
Interfaces

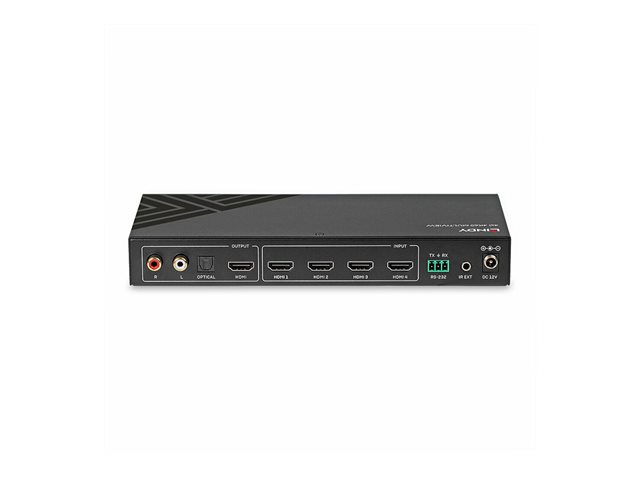

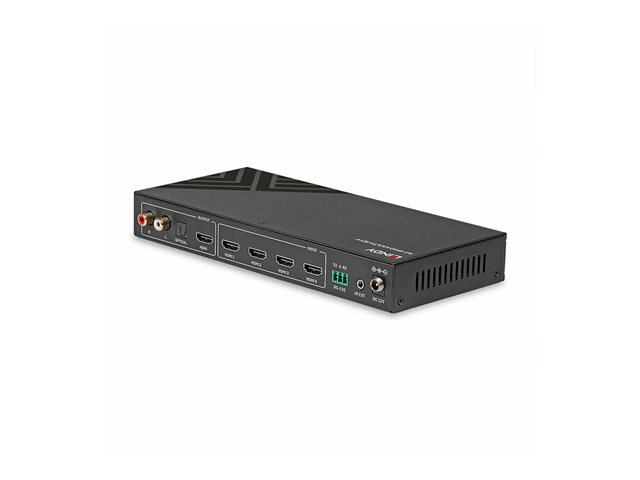

4 x HDMI input female ¦ 1 x HDMI output female ¦ 1 x management (RS-232) ¦ 1 x remote control ¦ 1 x power input ¦ 2 x audio output RCA ¦ 1 x SPDIF output
Power Device
External power adapter
Power Provided
DC 12 V - 2.5 A
Voltage Required
AC 100-240 V (50/60 Hz)
Included Accessories
4 power plug adapters, remote control, 4 rubber feet, 3-pin Phoenix connector, 2 mounting ears, 4 screws
Cables Included
1 x IR receiver cable - 1.5 m
Compliant Standards
UKCA, RoHS, REACH, FCC Part 15 Class B, WEEE, RoHS 2011/65/EU Amendment 2015/863, EN 55032:2015/A1:2020, EN 55035:2017/A11:2020, EN/IEC 63000:2018, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A2:2021
Localisation
Europe, United Kingdom, United States, Australia
Dimensions & Weight (Shipping)
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 90% RH (non-condensing)
Min Storage Temperature
-4 °C
Max Storage Temperature
140 °C
