Startech Dual mSATA SSD to 2.5" SATA RAID Adapter

Images Manuals

Startech Dual mSATA SSD to 2.5" SATA RAID Adapter Converter

Images for illustrative purposes

Startech Dual mSATA SSD to 2.5" SATA RAID Adapter Converter

Name: Startech Dual mSATA SSD to 2.5" SATA RAID Adapter Converter
Brand: STARTECH.COM
SKU: MMEV933089
Price: 21.32 EUR
Availability: InStock

View all STARTECH.COM Storage Adapters | Controllers - Visit the STARTECH.COM Store (25SAT22MSAT) - (MMEV933089)

Startech Dual mSATA SSD to 2.5" SATA RAID Adapter Converter - 2x mSATA SSD to 2.5in SATA Adapter with RAID and 7mm Open Frame Housing (25SAT22MSAT) - storage controller - mSATA - SATA 6Gb/s

FREE Delivery on orders over €250

4 Available to Ship
Order within 10Hrs 1Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€27.21~~

€21.32 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

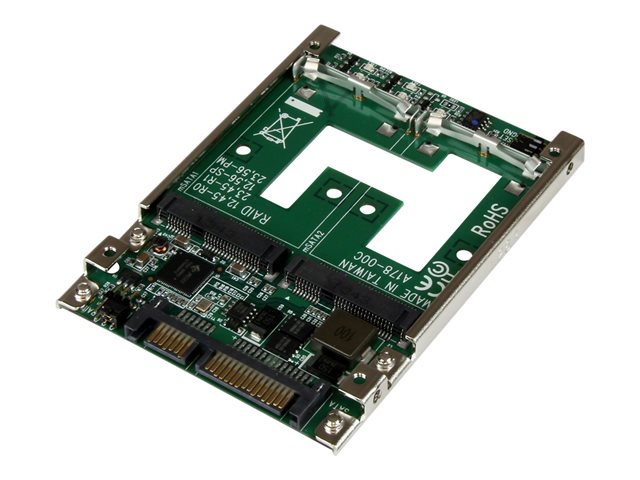

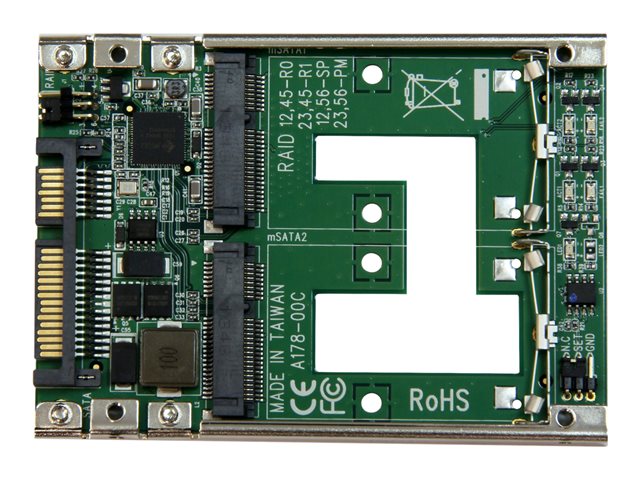

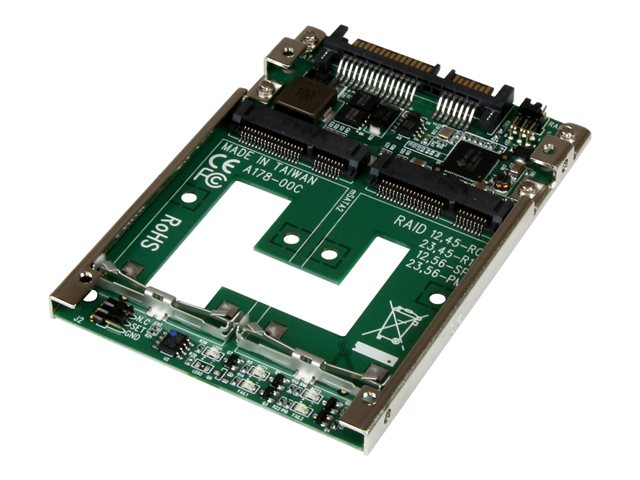

Build a RAID array with two mSATA SSDs that can be installed into a single 2.5in SATA bay. Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.

Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.

You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.

Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.

Specification Summary

Product Description

Startech Dual mSATA SSD to 2.5" SATA RAID Adapter Converter - 2x mSATA SSD to 2.5in SATA Adapter with RAID and 7mm Open Frame Housing (25SAT22MSAT) - storage controller - mSATA - SATA 6Gb/s

Device Type

Storage controller - internal

Bus Type

SATA 6Gb/s

Interface

mSATA

Data Transfer Rate

6 Gbit/s

Supported Devices

Hard drive, solid state drive

Channel Qty

RAID Level

RAID 0, RAID 1, JBOD, BIG

Dimensions (WxDxH)

7 cm x 10 cm x 0.7 cm

Weight

40 g

Manufacturer Warranty

2-year warranty

Designed For

P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F

Specifications

EAN / GTIN:

0065030855617

General

Device Type

Storage controller - internal

Host Bus

SATA 6Gb/s

Storage Controller

Interface

mSATA

Data Transfer Rate

6 Gbit/s

Supported Devices

Hard drive, solid state drive

Channel Qty

RAID Level

RAID 0, RAID 1, JBOD, BIG

Expansion / Connectivity

Interfaces

2 x - mSATA

Connections

1 x SATA 6Gb/s - 15 pin Serial ATA power

Miscellaneous

Mounting Kit

Included

Compliant Standards

FCC, RoHS

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Dimensions & Weight

Width

7 cm

Depth

10 cm

Height

0.7 cm

Weight

40 g

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

85 °C

Compatibility Information

Designed For

P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F
