Startech - docking station - USB-C 3.2 Gen 2 - HDM

Images Manuals

Images for illustrative purposes

Startech

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (199UE-USBC-DOCK) - (ECE12296585)

Startech - Docking station - for laptop - USB-C 3.2 Gen 2 - HDMI, 2 x DP - 1GbE - United Kingdom, Europe

Uncompressed Video Over USB-C
Driverless Deployment
Flexible, High-Speed I/O

FREE Delivery on orders over €250

94 Available to Ship
Order within 15Hrs 22Mins for: Delivery (8 Jun or 9 Jun)

€152.15 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Connect up to three 4K 60Hz displays (2x DisplayPort and 1x HDMI) through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity. Connect up to three 4K 60Hz displays through a single USB Type-C port with uncompressed video powered by your laptop's native GPU. Drive demanding workflows with high-performance visuals and no software compression Features plug-and-play functionality on Windows with no drivers or software required*. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments. This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection. This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA). Note: Not compatible with macOS or ChromeOS.

Specification Summary

Product Description

Startech - docking station - USB-C 3.2 Gen 2 - HDMI, 2 x DP - 1GbE

Product Type

Docking station - for laptop

Docking Interface

USB-C 3.2 Gen 2

Video Interfaces

HDMI, 2 x DP

Dimensions (WxDxH)

19 cm x 7.9 cm x 2.7 cm

Weight

300 g

Colour

Space grey

Localisation

United Kingdom, Europe

Networking

Gigabit Ethernet

Power

Power adapter AC 100-240 V (DC 24 V)

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030921817

General

Product Type

Docking station - for laptop

Width

19 cm

Depth

7.9 cm

Height

2.7 cm

Weight

300 g

Enclosure Colour

Space grey

Localisation

United Kingdom, Europe

Video

Max Resolution Details

4K - 60 Hz (Triple Display (2 x DisplayPort + HDMI))

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Compliant Standards

USB 3.2 Gen 2, USB 3.2 Gen 1

Expansion / Connectivity

Interfaces

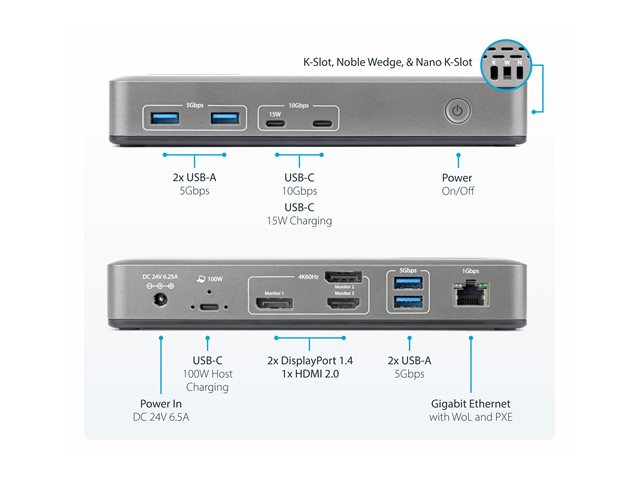

4 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 2 - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (15 W) - 24 pin USB-C ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (100 W) - 24 pin USB-C

Miscellaneous

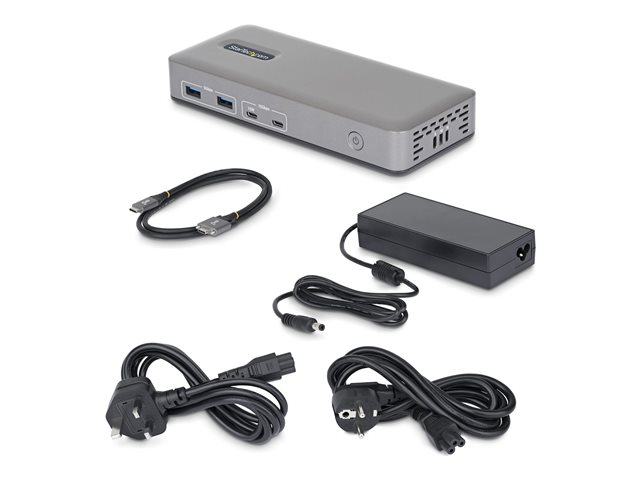

Cables Included

1 x USB-C host cable - detachable - 1 m

Included Accessories

Power cable (EU), power cable (UK)

Features

Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, full duplex support, 15W power delivery, 100W power delivery, triple display support, hub power LED, up to 10Gbps data transfer, 5Gbps data transfer, driverless

Security Slot Type

Kensington nano security slot / Kensington security slot

Compliant Standards

Plug and Play, FCC, RoHS, WEEE, USB Power Delivery 3.0

Power

Power Device

Power adapter

Voltage Required

AC 100-240 V

Voltage Provided

DC 24 V

System Requirements

OS Required

Microsoft Windows 10 / 11, Ubuntu 24.04

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Width

25 cm

Shipping Depth

20.5 cm

Shipping Height

5 cm

Shipping Weight

1 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C
