Device Type

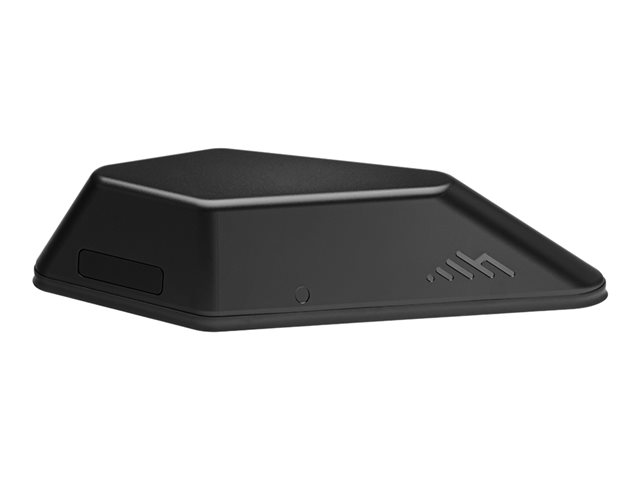

Wireless cellular modem
Connectivity Technology
Wireless
Max Transfer Rate
4.14 Gbps
Mobile Band
5G n1/n2/n3/n5/n7/n8/n12/n20/n25/n26/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 / LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 / HSPA+ B1/B2/B4/B5/B6/B8/B9/B19
Mobile Communication Protocol
5G NR, LTE Advanced Pro, WCDMA, UMTS, HSPA+
Line Coding Format
256 QAM
Connectivity Technology
Wired
Data Link Protocol
2.5 Gigabit Ethernet
Features
3GPP Release 15, 4x4 MIMO technology, power over Ethernet (PoE)
Compliant Standards
IEEE 802.3at
Interfaces
1 x 2.5GBase-T - RJ-45
SIM Card Supported
Nano-SIM x 2
Cables Included
1 x GPIO cable - 3 m ¦ Network cable - 1.68 m
Included Accessories
Mounting template, small accessories kit
Compliant Standards
FCC, RCM, FCC Part 96, IP67, IEC 60068-2-11, IK09, CB Scheme, IEC/EN 62368-1, E Mark, MIL-STD 810G, SAE J1455, WEEE, RoHS, REACH, CP65
Min Operating Temperature
-30 °C
Max Operating Temperature
70 °C
Humidity Range Operating
5 - 95%
Compatibility Information
Designed For
P/N: SP-BFA1-30005GB-GU, SP-BFA1-30005GB-GZ, SP-BFA3-30005GB-GU, SP-BFA3-30005GB-GZ, SP-BFA5-30005GB-GU, SP-BFA5-30005GB-GZ, TAA-170900-014
